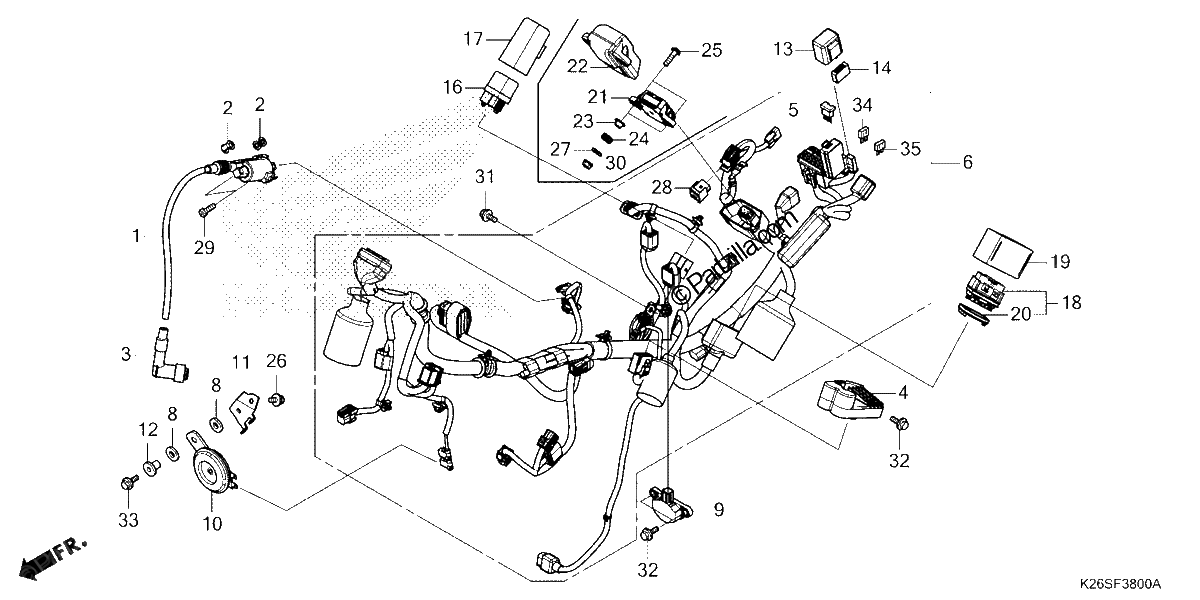

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COIL, IGNITION
$30.74¢15 369
#002
SPACER, IGNITION COIL
$3.36¢1 681
#003
CAP Assembly., NOISE SUPPRESSOR
$11.95¢5 975
#004
RECTIFIER, REGULATE (SHINDENGEN)
$88.10¢44 050
#005
DIODE ASSY., THREE WAY (SUMITOMO)
$12.64¢6 319
#006
WIRE HARNESS
$502.08¢251 038
#007
SLIDER
$23.61¢11 806
#008
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#009
SENSOR ASSY., BANK ANGLE
$193.17¢96 587
#010
HORN (HIGH)
$17.93¢8 963
#011
STAY, HORN
$5.20¢2 600
#012
COLLAR, HORN SETTING
$1.02¢513
#013
RELAY, TURN SIGNAL (MITSUBA)
$15.20¢7 600
#014
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.65¢1 825
#016
RELAY, STARTER (HONDALOCK)
$27.63¢13 813
#017
SUSPENSION, STARTER RELAY (HONDALOCK)
$5.49¢2 744
#018
PGM-FI UNIT
$113.55¢56 775
#019
SUSPENSION, ENGINE CONTROL UNIT
$3.84¢1 919
#020
SEAL, RING
$206.19¢103 094
#021
SENSOR Assembly., GYRO
$543.65¢271 825
#022
RUBBER, G-SENSOR
$8.24¢4 119
#023
COLLAR (6.2X5)
$1.64¢819
#024
RUBBER, SENSOR MOUNTING
$15.94¢7 969
#025
BOLT, TORX (6X22)
$1.35¢675
#026
BOLT, FLANGE (6X10)
$1.63¢813
#027
WASHER, RR. COVER GROMMET (FOR FR.)
$2.21¢1 106
#028
CONNECTOR, DUMMY (6P 025M)
$10.96¢5 481
#029
BOLT, HEX. (6X20)
$1.79¢894
#030
NUT, FLANGE (6MM)
$0.80¢400
#031
BOLT, FLANGE (6X12)
$2.09¢1 044
#032
BOLT, FLANGE (6X14)
$1.23¢613
#033
BOLT, FLANGE (6X16)
$2.09¢1 044
#034
FUSE, MINI (10A)
$1.70¢850
#035
FUSE, MINI (15A)
$1.49¢744
