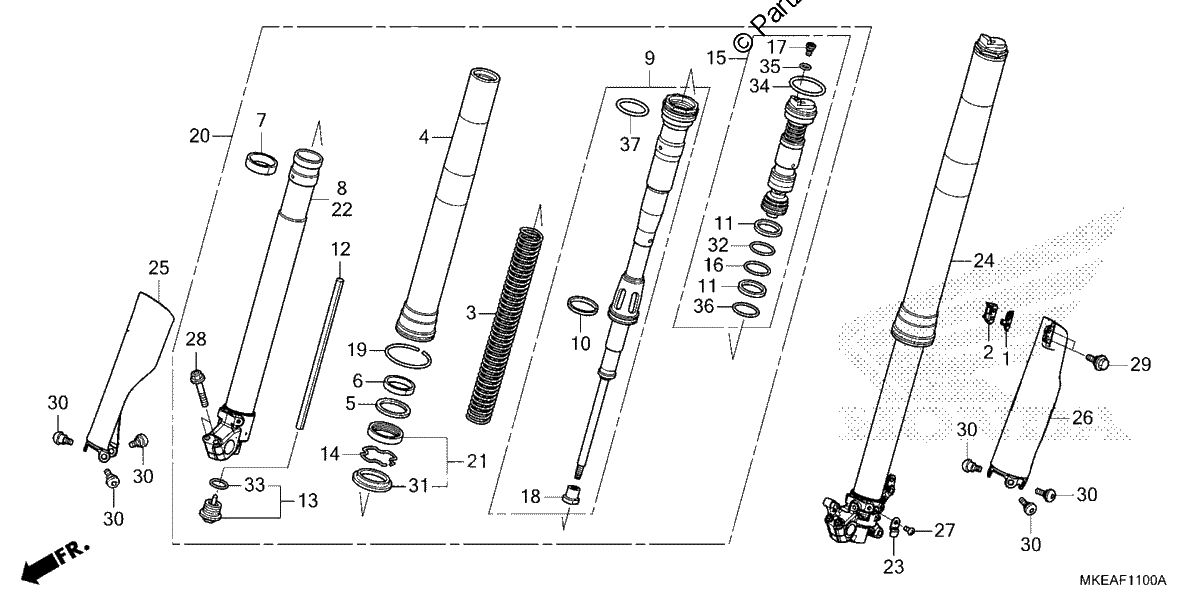

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$8.75¢4 375
#002
CLAMP B, BRAKE HOSE
$10.80¢5 400
#003
SPRING, Front FORK (5.0N/MM)
$143.65¢71 825
#004
TUBE (OUTER) (BLACK)
$710.76¢355 381
#005
RING, BACK-UP
$10.77¢5 387
#006
BUSH, GUIDE
$15.20¢7 600
#007
BUSH, SLIDER
$14.95¢7 475
#008
PIPE, R. SLIDE
$546.21¢273 106
#009
DAMPER, Front.
$486.59¢243 294
#010
BUSH B, SLIDER
$14.31¢7 156
#011
BUSH, SLIDER
$17.66¢8 831
#012
COLLAR, REBOUND NEEDLE
$13.75¢6 875
#013
BOLT, CENTER
$45.36¢22 681
#014
RING, OIL SEAL STOP
$4.54¢2 269
#015
BOLT ASSY., FR. FORK
$304.88¢152 438
#016
RING, PISTON
$12.89¢6 444
#017
BOLT, PLUG
$7.52¢3 762
#018
NUT, LOCK
$15.19¢7 594
#019
RING, WEAR
$9.36¢4 681
#020
FORK SUB-ASSY., R. FR.
$2020.51¢1 010 256
#021
SEAL SET, FR. FORK
$30.66¢15 331
#022
PIPE, L. SLIDE
$546.21¢273 106
#023
STAY, AXLE HOLDER
$5.14¢2 569
#024
FORK SUB-Assembly., L Front.
$2020.51¢1 010 256
#025
PROTECTOR, Right Front FORK R292R (WOL)(EXTREME RED)
$98.26¢49 131
#026
PROTECTOR, L Front FORK R292R (WOL)(EXTREME RED)
$98.69¢49 344
#027
SCREW, PAN (4X6)
$1.00¢500
#028
BOLT, FLANGE (8X40)
$2.75¢1 375
#029
BOLT, FLANGE (6MM)
$0.70¢350
#030
BOLT, PROTECTOR
$4.28¢2 138
#031
DUST SEAL
$14.75¢7 375
#032
O-RING (31.6X1.8)
$3.98¢1 988
#033
O-RING (22.1X1.9)
$3.24¢1 619
#034
O-RING (42.2X2.4)
$7.16¢3 581
#035
O-RING (3.5X1.5)
$3.49¢1 744
#036
O-RING (35.5X2)
$3.09¢1 544
#037
O-RING (47.2X2.4)
$4.58¢2 288
