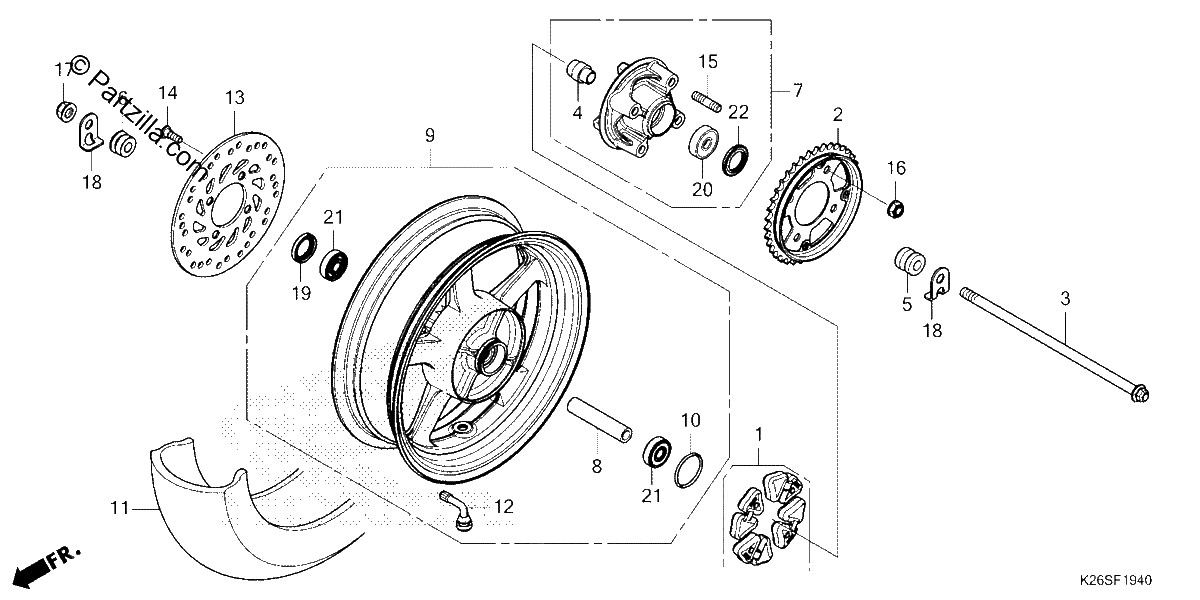

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$11.04¢5 519
#002
SPROCKET, FINAL DRIVEN (38T)
$27.86¢13 931
#003
AXLE, Rear WHEEL
$6.67¢3 338
#004
SLEEVE, RR. WHEEL
$3.65¢1 825
#005
COLLAR, L. RR. WHEEL SIDE
$14.42¢7 212
#006
COLLAR, Right Rear WHEEL SIDE
$10.66¢5 331
#007
FLANGE SUB-Assembly., FINAL DRIVEN
$116.74¢58 369
#008
COLLAR, RR. AXLE DISTANCE
$6.61¢3 306
#009
WHEEL SUB-Assembly., Rear. NH303M (MAT AXIS GRAY METALLIC)
$235.45¢117 725
#010
O-RING (40.5X3) (NIPPON DUST KEEPER)
$3.08¢1 538
#011
TIRE, Rear. (130/70-12 56L) (VEE)
$48.75¢24 375
#011
TIRE, Rear. (130/70-12 56L) (IRC)
$76.58¢38 288
#012
VALVE, RIM (DUNLOP)
$18.96¢9 481
#013
DISK, Rear BRAKE
$51.76¢25 881
#014
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#015
BOLT, STUD (10X22)
$1.41¢706
#016
NUT, U (10MM) (FUJI SEIMITSU)
$3.83¢1 913
#017
NUT, U (12MM)
$4.91¢2 456
#018
WASHER, Rear AXLE
$3.93¢1 963
#019
OIL SEAL (26X37X6) (ARAI)
$9.29¢4 644
#020
BEARING, RADIAL BALL (6203UU) (NTN)
$22.32¢11 163
#020
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$22.32¢11 163
#021
BEARING, RADIAL BALL (6301U L)(NTN)
$8.39¢4 194
#021
BEARING, RADIAL BALL (6301U L)(FAG)
$8.39¢4 194
#022
DUST SEAL (27X40X4.5) (NOK)
$1.27¢638
