FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

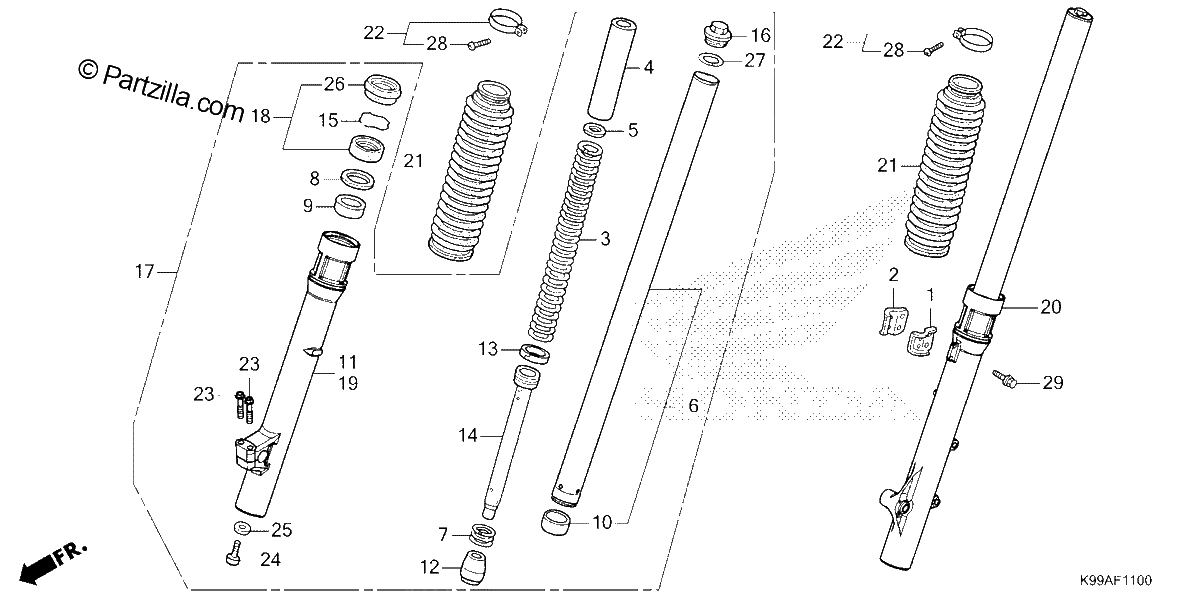

Diagrama de FRONT FORK

Repuestos

#001
45461-K99-A70
CLAMP A, BRAKE HOSE
$6.82¢3 410
1
#002
45462-K99-A70
CLAMP B, BRAKE HOSE
$2.77¢1 386
1
#003
51401-K99-A71
SPRING, Front FORK
$31.07¢15 536
1
#004
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#005
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.35¢2 674
1
#006
51410-K99-A01
PIPE, Front FORK
$88.57¢44 287
1
#007
51411-K99-A01
SPRING, REBOUND
$2.38¢1 190
1
#008
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#009
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#010
51415-K99-A01
BUSH, SLIDER
$4.04¢2 018
1
#011
51420-K99-A71
CASE, Right Front. (LOWER)
$1030.85¢515 424
1
#012
51432-MV4-003
PIECE, OIL LOCK
$17.61¢8 803
1
#013
51437-KV3-701
RING, PISTON
$8.03¢4 013
1
#014
51440-K99-A71
PIPE, SEAT
$18.63¢9 315
1
#015
51447-MCG-003
RING, OIL SEAL STOP
$1.13¢564
1
#016
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#017
51480-K99-A71
FORK SUB-Assembly., Right Front.
$358.71¢179 354
1
#018
51490-K99-A01
SEAL SET, Front FORK
$11.66¢5 831
1
#019
51520-K99-A71
CASE, L Front. (LOWER)
$1030.85¢515 424
1
#020
51580-K99-A71
FORK SUB-Assembly., L Front.
$358.71¢179 354
1
#021
51611-KF0-003
BOOT, Front FORK
$62.42¢31 211
1
#022
51612-KF0-003
BAND, FR. FORK BOOT
$11.73¢5 865
1
#023
90108-KZ4-J40
BOLT, FLANGE (8X40)
$2.53¢1 265
1
#024
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#025
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#026
91254-KF0-003
DUST SEAL, Front FORK
$24.91¢12 455
1
#027
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
#028
93500-03020-0A
SCREW, PAN (3X20)
$0.93¢466
1
#029
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
