SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

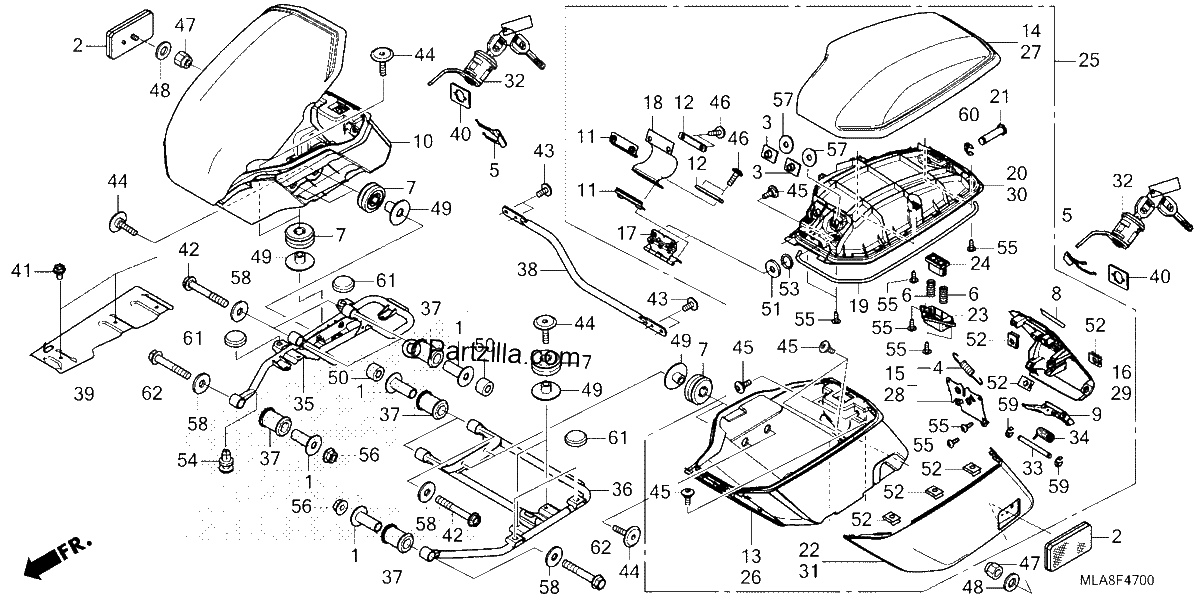

Diagrama de SADDLEBAG

Repuestos

#001
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.19¢4 594
1
#002
33742-MCV-N11
REFLECTOR, REFLEX
$31.14¢15 571
1
#003
61304-MGS-D70
NUT, SPECIAL (5MM)
$5.83¢2 915
1
#004
77234-KYZ-900
SPRING, SEAT LOCK
$1.45¢724
1
#005
77235-MLA-A30
SPRING, LOCK KEY SETTING (2WAY) (WAVE)
$4.36¢2 179
1
#006
77302-MEE-000
SPRING, SEAT LOCK
$2.54¢1 271
1
#007
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
1
#008
81173-MLA-A30
MARK, SADDLEBAG LID
$2.68¢1 340
1
#009
81252-MLA-A30
LEVER, SADDLEBAG
$17.54¢8 769
1
#010
81300-MLA-A30ZC
SADDLEBAG Assembly., Right. NHC65M (IRIDIUM GRAY METALLIC)
$618.57¢309 287
1
#011
81305-MLA-A30
BRACKET, STOPPER
$5.86¢2 932
1
#012
81307-MLA-A30
PLATE, STOPPER
$5.40¢2 702
1
#013
81311-MLA-A30
BODY, Right SADDLEBAG
$125.61¢62 807
1
#014
81320-MLA-A30ZC
LID, Right SADDLEBAG (OUTER) NHC65M (IRIDIUM GRAY METALLIC)
$249.14¢124 568
1
#015
81330-MLA-A30
CATCH, Right LID
$46.15¢23 075
1
#016
81335-MLA-A30
COVER, Right LOCK
$33.06¢16 531
1
#017
81340-MLA-A30
HINGE, SADDLEBAG
$45.45¢22 724
1
#018
81345-MLA-A30
STOPPER
$13.20¢6 601
1
#019
81351-MLA-A30
RUBBER, SADDLEBAG SEAL
$13.72¢6 860
1
#020
81361-MLA-A30
LID, Right SADDLEBAG (INNER)
$53.50¢26 749
1
#021
81362-MLA-A30
SHAFT (5X17)
$2.54¢1 271
1
#022
81363-MLA-A30ZC
PANEL, Right SADDLEBAG NHC65M (IRIDIUM GRAY METALLIC)
$49.83¢24 915
1
#023
81364-MLA-A30
CASE, LID SPRING (UPPER)
$3.96¢1 978
1
#024
81365-MLA-A30
CASE, LID SPRING (LOWER)
$3.71¢1 857
1
#025
81400-MLA-A30ZC
SADDLEBAG Assembly., Left NHC65M (IRIDIUM GRAY METALLIC)
$618.57¢309 287
1
#026
81411-MLA-A30
BODY, L SADDLEBAG
$146.49¢73 244
1
#027
81420-MLA-A30ZC
LID, L SADDLEBAG (OUTER) NHC65M (IRIDIUM GRAY METALLIC)
$260.34¢130 169
1
#028
81430-MLA-A30
CATCH, L LID
$65.25¢32 625
1
#029
81435-MLA-A30
COVER, L LOCK
$35.48¢17 739
1
#030
81461-MLA-A30
LID, L SADDLEBAG (INNER)
$53.50¢26 749
1
#031
81463-MLA-A30ZC
PANEL, L SADDLEBAG NHC65M (IRIDIUM GRAY METALLIC)
$49.83¢24 915
1
#032
81600-MLA-A31
KEY, SADDLEBAG LOCK (2WAY) (WAVE)
$60.51¢30 256
1
#033
83236-MKC-A00
PIN, CENTER POCKET
$5.66¢2 829
1
#034
83241-MKC-A00
SPRING, CENTER POCKET
$6.04¢3 019
1
#035
84151-MLA-A30
STAY, Right SADDLEBAG
$305.24¢152 622
1
#036
84152-MLA-A30
STAY, L SADDLEBAG
$305.24¢152 622
1
#037
84156-MLA-A30
RUBBER, SADDLEBAG STAY MOUNTING
$4.11¢2 053
1
#038
84161-MLA-A30
PIPE, CENTER CROSS
$97.49¢48 743
1
#039
84191-MLA-A30
GUARD, HEAT
$131.63¢65 815
1
#040
88537-MLA-A30
WASHER, KEY LOCK (2WAY) (WAVE)
$4.36¢2 179
1
#041
90031-GHB-610
BOLT, FLANGE (6X10)
$2.60¢1 299
1
#042
90036-GHB-770
BOLT, FLANGE (8X55)
$3.36¢1 679
1
#043
90101-K87-A00
BOLT, SOCKET SPECIAL (6X12)
$1.26¢633
1
#044
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.43¢2 214
1
#045
90114-MKC-A00
SCREW, SPECIAL (5X15)
$3.36¢1 679
1
#046
90133-K2E-T00
SCREW, PAN (5X20)
$1.54¢771
1
#047
90302-435-761
NUT, HEX. (5MM)
$2.64¢1 322
1
#048
90401-ZVA-000
WASHER (6MM)
$1.95¢977
1
#049
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
1
#050
90504-MLA-A30
COLLAR, SADDLEBAG STAY
$4.36¢2 179
1
#051
90507-MGM-D10
WASHER, PLAIN (5MM)
$3.60¢1 800
1
#052
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#053
91370-461-000
O-RING (11.9X2.2)
$2.83¢1 414
1
#054
91501-MKA-D80
CLIP, HANDLEBAR
$2.51¢1 254
1
#055
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#056
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#057
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#058
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#059
94540-03010
E-RING (3MM)
$1.30¢650
1
#060
94540-04010
E-RING (4MM)
$2.45¢1 225
1
#061
95011-63000
RUBBER C, STAND STOPPER
$4.36¢2 179
1
#062
95801-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
#062
96400-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
#062
96400-08050-07
BOLT, FLANGE (8X50)
$3.36¢1 679
