SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

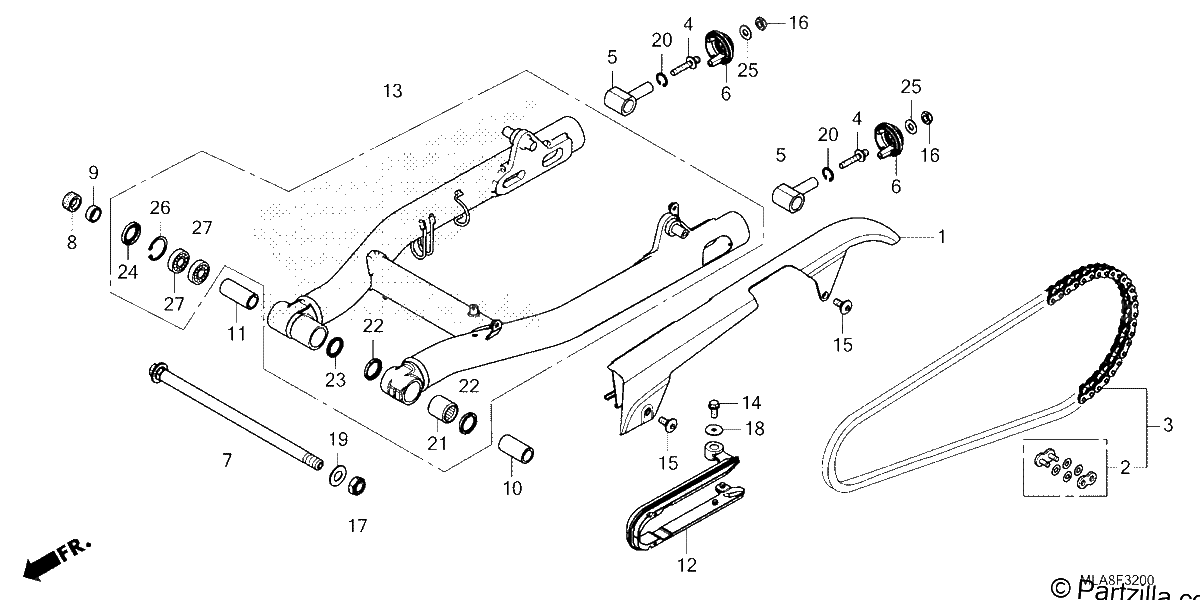

Diagrama de SWINGARM

Repuestos

#001
40510-MLA-A00
CASE, DRIVE CHAIN
$102.59¢51 294
1
#002
40531-MLA-A02
MASTER LINK (RK JAPAN)
$15.71¢7 856
1
#003
40540-MLA-A02
CHAIN, DRIVE (RK JAPAN) (RKBP525MRO-120LJFZ) (STANDARD LINK 114L)
$251.83¢125 913
1
#004
40542-K87-A00
BOLT, CHAIN ADJUSTING
$2.50¢1 250
1
#005
40543-MLA-A00
ADJUSTER, CHAIN
$35.09¢17 544
1
#006
40546-MLA-A00
CAP, SWINGARM END
$17.10¢8 550
1
#007
52101-MLA-A00
BOLT, SWINGARM PIVOT
$73.50¢36 750
1
#008
52109-MLA-A00
BOLT, PIVOT ADJUSTING
$16.83¢8 413
1
#009
52141-MKS-E00
COLLAR A, PIVOT
$6.67¢3 338
1
#010
52142-MLA-A00
COLLAR, L PIVOT DISTANCE
$14.57¢7 288
1
#011
52143-MLA-A00
COLLAR, R. PIVOT DISTANCE
$14.57¢7 288
1
#012
52170-MLA-A00
SLIDER, CHAIN
$42.64¢21 319
1
#013
52200-MLA-A00
SWINGARM SUB-Assembly., Rear.
$963.17¢481 588
1
#014
90013-GHB-620
BOLT, FLANGE (6X14)
$2.99¢1 494
1
#015
90118-MJK-N20
SCREW, SPECIAL (6X14)
$3.49¢1 744
1
#016
90301-MLA-A01
NUT, U (10MM)
$4.07¢2 037
1
#017
90305-GW2-711
NUT, U (16MM)
$19.01¢9 506
1
#018
90404-GE2-760
WASHER, PLAIN (6MM)
$2.88¢1 438
1
#019
90501-K87-A00
WASHER, PLAIN (16.4X32X2)
$1.93¢963
1
#020
90651-K87-A00
CIRCLIP (INNER) (20)
$2.01¢1 006
1
#021
91071-MT7-003
BEARING, NEEDLE (NTN)
$31.19¢15 594
1
#022
91202-MAL-601
DUST SEAL (25X33X4)
$8.44¢4 219
1
#023
91203-GC8-003
OIL SEAL (24X31X3.5)
$12.21¢6 106
1
#024
91214-MAL-601
DUST SEAL (23X35X5)
$10.58¢5 288
1
#025
94101-10700
WASHER, PLAIN (10MM)
$1.38¢688
1
#026
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#027
96100-60030-10
BEARING, RADIAL BALL (6003)
$16.44¢8 219
1
