RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

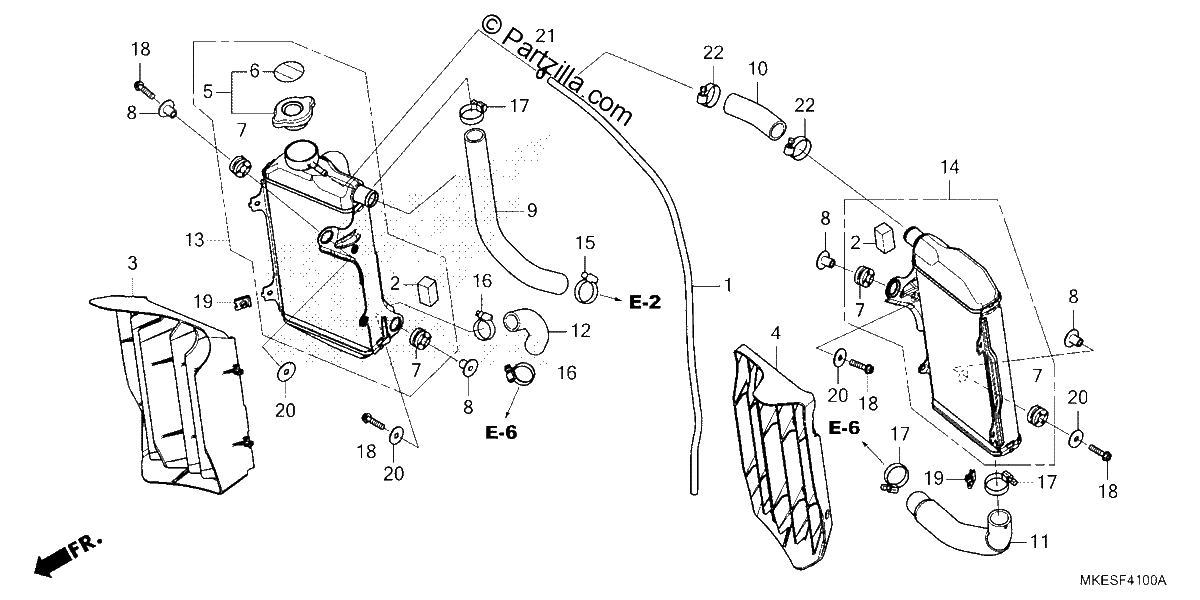

Diagrama de RADIATOR

Repuestos

#001
19003-MKE-A70
TUBE, RADIATOR
$4.61¢2 306
1
#002
19021-MEN-A30
RUBBER, RADIATOR (UPPER)
$2.97¢1 487
1
#003
19033-MKE-AF0
GRILLE, R. RADIATOR
$51.86¢25 931
1
#004
19034-MKE-AF0
GRILLE, L. RADIATOR
$44.09¢22 044
1
#005
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#006
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#007
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#008
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#009
19061-MKE-AF0
HOSE A, WATER
$19.01¢9 506
1
#010
19062-MKE-AF1
HOSE B, WATER
$5.02¢2 512
1
#011
19063-MKE-AF0
HOSE C, WATER
$30.65¢15 325
1
#012
19064-MKE-AF0
HOSE D, WATER
$9.90¢4 950
1
#013
19100-MKE-AF0
RADIATOR ASSY., R.
$318.65¢159 325
1
#014
19150-MKE-AF0
RADIATOR ASSY., L.
$318.65¢159 325
1
#015
19502-MKE-A00
CLAMP, WATER HOSE (D27)
$11.74¢5 869
1
#016
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#017
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#018
90020-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#019
90201-KPR-901
NUT, CLIP (6MM)
$2.40¢1 200
1
#020
90403-KA3-830
WASHER, RADIATOR MOUNTING
$3.04¢1 519
1
#021
95002-02080
CLIP, TUBE (B8)
$2.15¢1 075
1
#022
19505-ML3-770
CLAMP, WATER HOSE
$8.58¢4 288
1
