CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

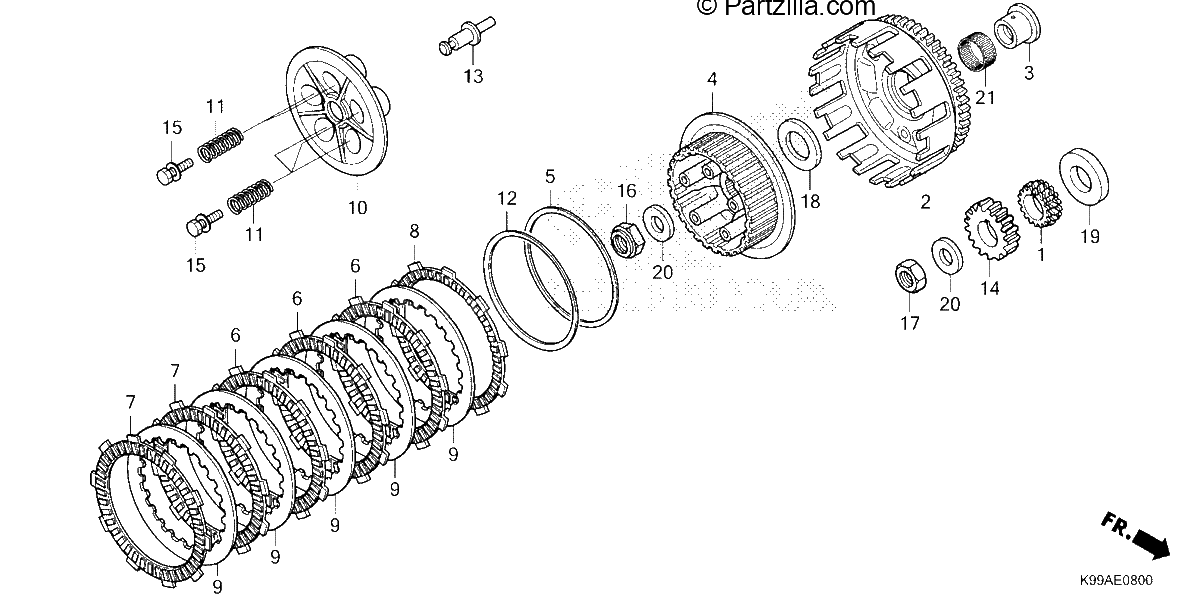

Diagrama de CLUTCH

Repuestos

#001
14311-K3W-B00
SPROCKET, TIMING (17T) (NOT AVAILABLE)
$17.85¢8 925
1
#002
22100-K99-A71
CLUTCH OUTER
$164.13¢82 063
1
#003
22116-K31-900
GUIDE, CLUTCH (OUTER)
$13.38¢6 688
1
#004
22121-K99-A01
CENTER, CLUTCH
$18.81¢9 406
1
#005
22125-ML7-000
SEAT, JUDDER SPRING
$12.49¢6 244
1
#006
22201-K99-A71
DISK, CLUTCH FRICTION
$35.19¢17 594
1
#007
22201-MAE-000
DISK, CLUTCH FRICTION
$20.58¢10 288
1
#008
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#009
22321-ML7-000
PLATE, CLUTCH
$16.39¢8 194
1
#010
22350-K99-A01
PLATE, CLUTCH PRESSURE
$15.90¢7 950
1
#011
22401-K99-A01
SPRING, CLUTCH
$3.65¢1 825
1
#012
22402-K87-A31
SPRING, JUDDER
$20.02¢10 013
1
#013
22847-K99-A70
PIN, CLUTCH LIFTER
$17.48¢8 738
1
#014
23121-K3W-B00
GEAR, PRIMARY DRIVE (23T) (NOT AVAILABLE)
$34.14¢17 069
1
#015
90050-K31-901
BOLT-WASHER (6X25)
$3.05¢1 525
1
#016
90201-KYJ-900
NUT, SPECIAL (16MM)
$4.33¢2 163
1
#017
90235-K31-900
NUT, LOCK (16MM)
$8.97¢4 488
1
#018
90404-KVK-900
WASHER (20X40X2)
$3.65¢1 825
1
#019
90434-K2K-D00
WASHER (19MM) (NOT AVAILABLE)
No Disponible
1
#020
90434-KPS-900
WASHER (16MM)
$2.56¢1 281
1
#021
91012-KYJ-901
BEARING, NEEDLE (28X33X16.8)
$7.66¢3 831
1
