REAR BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

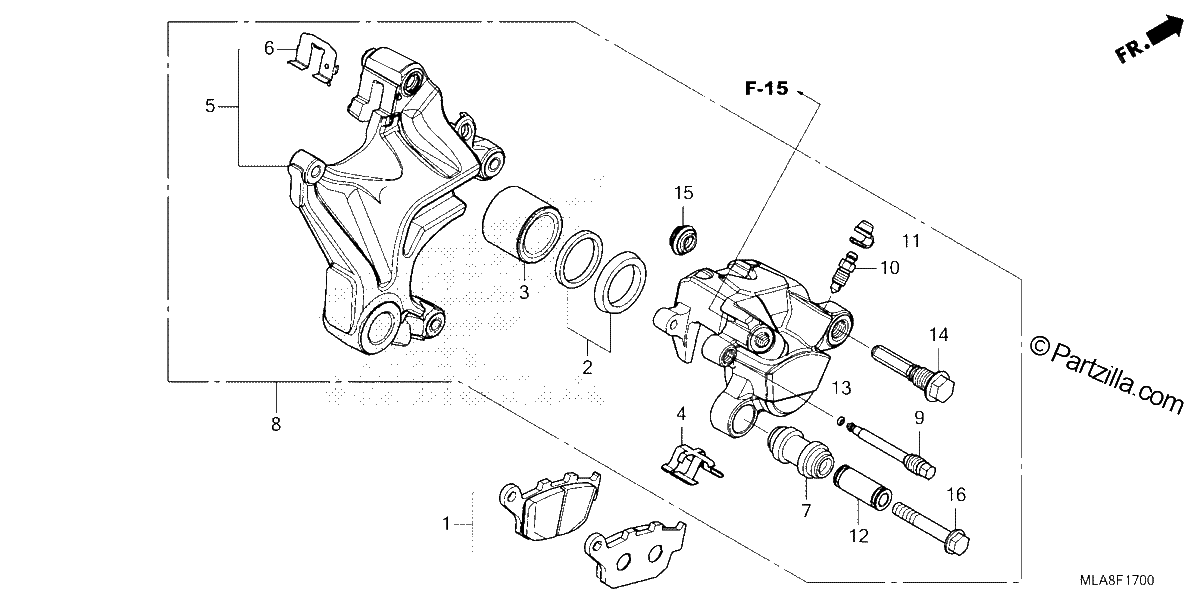

Diagrama de REAR BRAKE CALIPER

Repuestos

#001
06435-MGZ-J02
PAD SET, Rear.
$35.54¢17 769
1
#002
06451-443-405
SEAL SET, PISTON
$15.48¢7 738
1
#003
43107-KT7-761
PISTON
$43.96¢21 981
1
#004
43108-MBB-006
SPRING, PAD
$7.49¢3 744
1
#005
43110-MLA-A51
BRACKET, Rear BRAKE (NISSIN)
$347.82¢173 913
1
#006
43112-MFF-D01
RETAINER
$9.80¢4 900
1
#007
43132-KT7-761
BOOT, SLEEVE
$9.98¢4 988
1
#008
43150-MLA-A51
CALIPER SUB-Assembly., Rear BRAKE (NISSIN)
$494.43¢247 213
1
#009
43215-KZ4-J41
PIN, HANGER
$6.38¢3 188
1
#010
43352-568-003
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
1
#011
43353-461-771
CAP, BLEEDER
$6.13¢3 063
1
#012
45111-MA3-006
SLEEVE
$15.54¢7 769
1
#013
45111-MAJ-G41
RING, STOPPER
$4.61¢2 306
1
#014
45131-MN9-006
BOLT, PIN
$18.54¢9 269
1
#015
45133-MA3-006
BOOT B
$6.61¢3 306
1
#016
90180-MN8-006
BOLT, FLANGE (8X49)
$7.35¢3 675
1
