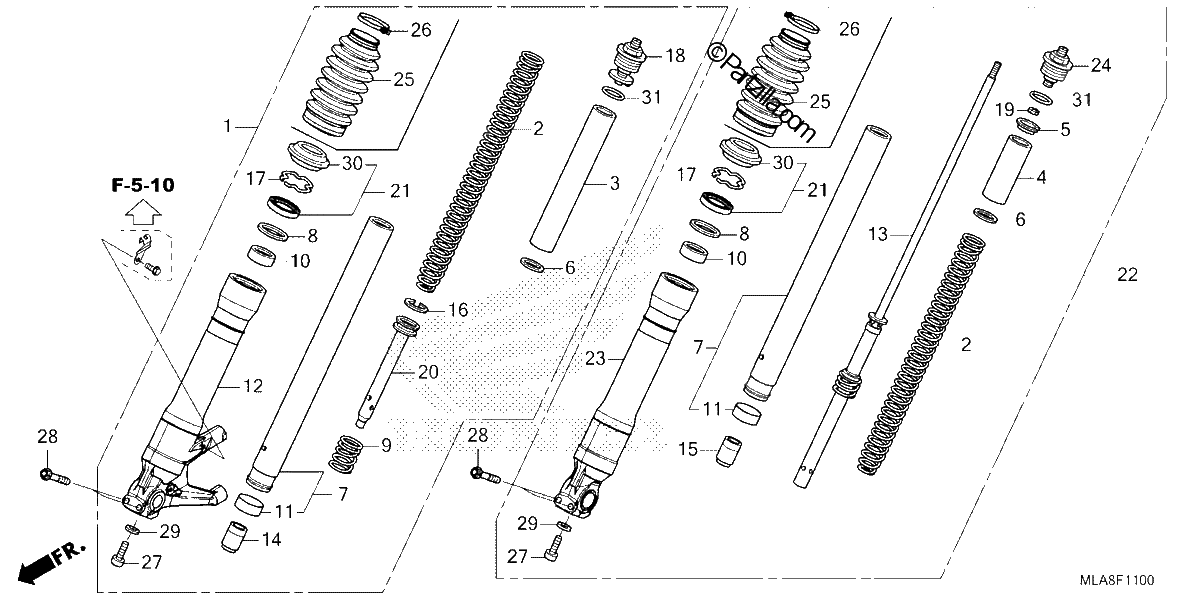

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front. (SHOWA)
$756.06¢378 028
#002
SPRING, FR. FORK
$101.99¢50 997
#003
COLLAR, SPRING
$31.26¢15 628
#004
COLLAR, SPRING
$21.09¢10 545
#005
SEAT, SPRING
$13.36¢6 681
#006
SEAT, SPRING
$6.95¢3 473
#007
PIPE, FR. FORK
$394.21¢197 104
#008
RING, BACK-UP
$10.38¢5 192
#009
SPRING, REBOUND
$7.69¢3 847
#010
BUSH, GUIDE
$7.89¢3 944
#011
BUSH, SLIDER
$32.92¢16 462
#012
CASE, Right. (LOWER)
$399.43¢199 715
#013
DAMPER, FR.
$348.53¢174 265
#014
PIECE, OIL LOCK (SHOWA)
$21.26¢10 632
#015
PIECE, OIL LOCK
$37.78¢18 889
#016
RING, PISTON
$6.61¢3 306
#017
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#018
BOLT, FR. FORK
$67.87¢33 937
#019
NUT, HEX. (10MM)
$3.43¢1 713
#020
PIPE, SEAT
$39.69¢19 843
#021
SEAL SET, FR. FORK
$21.36¢10 678
#022
FORK Assembly., L Front. (SHOWA)
$943.02¢471 511
#023
CASE, Left (LOWER)
$399.43¢199 715
#024
BOLT, FR. FORK
$62.08¢31 038
#025
BOOT, Front FORK
$36.67¢18 337
#026
BAND, Front FORK BOOT
$9.52¢4 761
#027
BOLT, SOCKET (8X27)
$5.72¢2 858
#028
BOLT (8X45)
$3.36¢1 679
#029
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#030
DUST SEAL
$13.80¢6 900
#031
O-RING (35.2X2.4)
$4.20¢2 099
