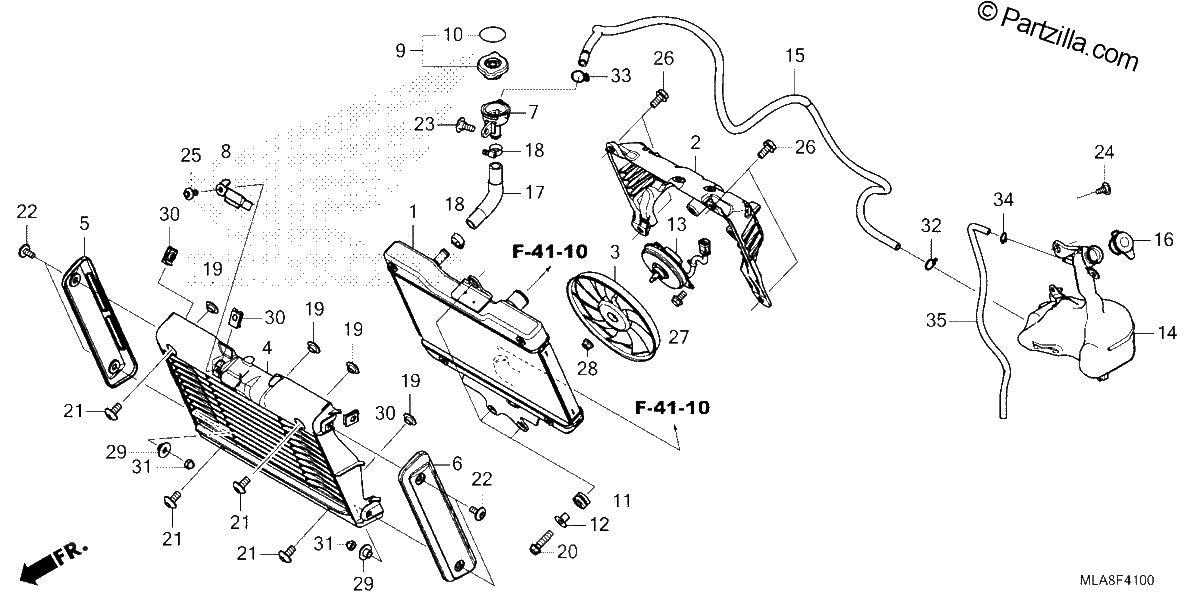

RADIATOR RESERVE TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RADIATOR (TOYO)
$879.78¢439 888
#002
SHROUD
$94.74¢47 369
#003
FAN, COOLING
$52.88¢26 438
#004
GRILLE, RADIATOR
$207.09¢103 544
#005
COVER, Right RADIATOR SIDE
$36.51¢18 256
#006
COVER, L. RADIATOR SIDE
$36.51¢18 256
#007
FILLER, NECK
$35.83¢17 913
#008
BAND, HARNESS
$5.54¢2 769
#009
CAP, RADIATOR
$35.16¢17 581
#010
LABEL, RADIATOR CAP
$3.65¢1 825
#011
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
#012
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
#013
MOTOR Assembly., FAN (TOYO)
$290.39¢145 194
#014
TANK, RADIATOR RESERVE
$58.32¢29 162
#015
TUBE Assembly., RESERVE TANK
$26.34¢13 169
#016
CAP, RESERVE TANK
$2.05¢1 025
#017
HOSE, FILLER NECK
$17.56¢8 781
#018
CLAMP A, WATER HOSE
$14.94¢7 469
#019
COLLAR, FR. FENDER
$4.90¢2 450
#020
BOLT, FLANGE (6X22)
$2.81¢1 406
#021
BOLT, SOCKET SPECIAL (6X12)
$1.38¢688
#022
BOLT, SOCKET (5X12)
$3.50¢1 750
#023
SCREW, PAN (6X14)
$4.74¢2 369
#024
BOLT, FR. DISK COVER
$3.75¢1 875
#025
SCREW, SPECIAL (5X10.5)
$3.36¢1 681
#026
BOLT-WASHER (6X14)
$3.44¢1 719
#027
BOLT, FLANGE (5X10)
$3.43¢1 713
#028
NUT, SERRATE (5MM)
$2.99¢1 494
#029
COLLAR
$2.24¢1 119
#030
NUT, CLIP (5MM)
$4.94¢2 469
#031
NUT, CAP (5MM)
$1.70¢850
#032
CLIP, TUBE (B10)
$2.44¢1 219
#033
CLIP, TUBE (B12)
$2.39¢1 194
#034
CLIP, TUBE (C9)
$1.54¢769
#035
BULK HOSE, VACUUM (5X3000) (5X300)
$24.39¢12 194
