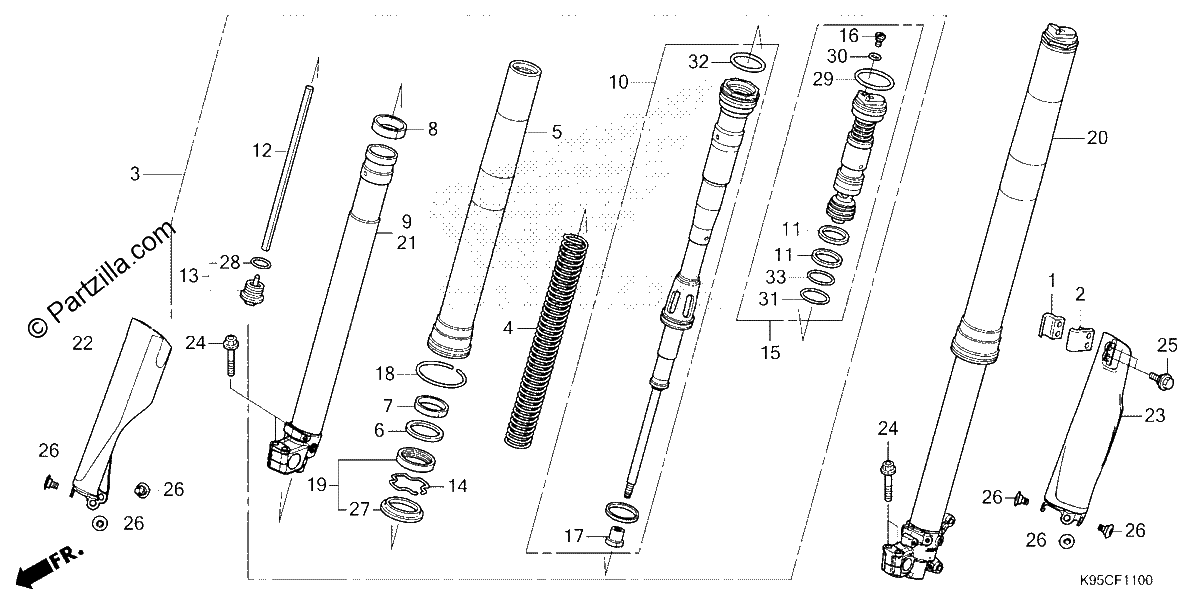

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, FR. BRAKE HOSE
$7.70¢3 850
#002
CLAMP B, FR. BRAKE HOSE
$5.67¢2 838
#003
FORK SET, Right Front. (TYPE1) (WL)
$1765.84¢882 919
#004
SPRING, Front FORK (4.6N/MM)
$92.36¢46 181
#004
SPRING, Front FORK (4.8N/MM)
$92.36¢46 181
#004
SPRING, Front FORK (5.0N/MM)
$92.36¢46 181
#005
TUBE (OUTER)
$505.00¢252 500
#006
RING, BACK-UP
$10.13¢5 063
#007
BUSH, GUIDE
$15.20¢7 600
#008
BUSH, SLIDER
$14.95¢7 475
#009
PIPE, Right SLIDE
$616.63¢308 313
#010
DAMPER, Front.
$386.21¢193 106
#011
BUSH, SLIDER
$17.66¢8 831
#012
COLLAR, REBOUND NEEDLE
$10.43¢5 213
#013
BOLT, CENTER
$45.54¢22 769
#014
RING, OIL SEAL STOP
$4.54¢2 269
#015
BOLT Assembly., Front FORK
$309.16¢154 581
#016
BOLT, PLUG
$7.52¢3 762
#017
NUT, LOCK
$15.19¢7 594
#018
RING, WEAR
$9.36¢4 681
#019
SEAL SET, Front FORK
$26.34¢13 169
#020
FORK SET, L Front. (TYPE1) (WL)
$1765.84¢882 919
#021
PIPE, L SLIDE
$616.63¢308 313
#022
PROTECTOR SET, Right Front FORK (TYPE1) (WL)
$158.11¢79 056
#023
PROTECTOR SET, L Front FORK (TYPE1) (WL)
$144.43¢72 213
#024
BOLT, FLANGE (8X40)
$2.75¢1 375
#025
BOLT, FLANGE (6MM)
$3.65¢1 825
#026
BOLT, PROTECTOR
$4.28¢2 138
#027
DUST SEAL
$12.72¢6 363
#028
O-RING (22.1X1.9)
$3.24¢1 619
#029
O-RING (42.2X2.4)
$7.16¢3 581
#030
O-RING (3.5X1.5)
$3.49¢1 744
#031
O-RING (35.5X2)
$3.09¢1 544
#032
O-RING (47.2X2.4)
$4.58¢2 288
#033
O-RING (32.7X3.5)
$4.07¢2 037
