FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

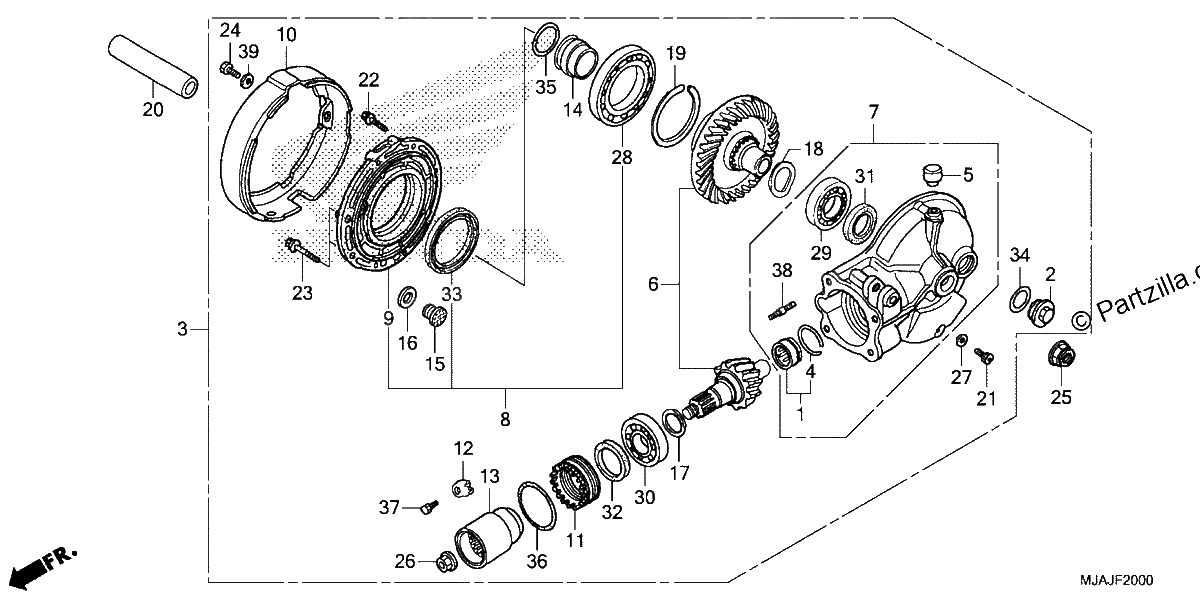

Diagrama de FINAL DRIVEN GEAR

Repuestos

#001
06910-MBL-610
BEARING SET, NEEDLE
$32.30¢16 150
1
#002
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$12.51¢6 256
1
#002
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#002
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#003
41300-MEG-A60
GEAR Assembly., FINAL
$2387.59¢1 193 794
1
#004
41305-MB4-770
RING, STOPPER
$7.24¢3 619
1
#005
41306-MB0-020
CAP, BREATHER
$10.81¢5 406
1
#006
41310-MM8-305
GEAR SET, FINAL
$655.61¢327 806
1
#007
41311-MEG-010
CASE SET, FINAL
$1308.30¢654 150
1
#008
41320-MBL-611
COVER SUB-ASSY., FINAL GEAR
$262.50¢131 250
1
#009
41321-ME5-771
COVER, GEAR CASE
$191.05¢95 525
1
#010
41324-MAH-000
PLATE, DUST GUARD
$147.05¢73 525
1
#011
41331-ME9-010
RETAINER, BEARING
$170.55¢85 275
1
#012
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$3.24¢1 619
1
#012
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$3.24¢1 619
1
#013
41410-ME9-770
JOINT, PINION
$188.38¢94 188
1
#014
41433-MB0-010
HOLDER, O-RING
$16.63¢8 313
1
#015
41436-MB0-310
PIN, RING GEAR STOPPER
$41.09¢20 544
1
#016
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
$6.81¢3 406
1
#016
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
$6.23¢3 113
1
#017
41450-MG8-000
SHIM A, PINION GEAR (1.82)
$9.61¢4 806
1
#017
41451-MG8-000
SHIM B, PINION GEAR (1.88)
$9.61¢4 806
1
#017
41452-MG8-000
SHIM C, PINION GEAR (1.94)
$9.16¢4 581
1
#017
41453-MG8-000
SHIM D, PINION GEAR (2.00)
$9.16¢4 581
1
#017
41454-MG8-000
SHIM E, PINION GEAR (2.06)
$9.16¢4 581
1
#017
41455-MG8-000
SHIM F, PINION GEAR (2.12)
$9.16¢4 581
1
#017
41456-MG8-000
SHIM G, PINION GEAR (2.18)
$9.16¢4 581
1
#018
41510-MB0-003
WASHER, SPECIAL (35X40)
$15.80¢7 900
1
#019
41538-MB0-000
SPACER I, RING GEAR (2.30)
$21.44¢10 719
1
#019
41537-MB0-000
SPACER H, RING GEAR (2.24)
$21.44¢10 719
1
#019
41536-MB0-000
SPACER G, RING GEAR (2.18)
$21.44¢10 719
1
#019
41535-MB0-000
SPACER F, RING GEAR (2.12)
$21.44¢10 719
1
#019
41534-MB0-000
SPACER E, RING GEAR (2.06)
$21.44¢10 719
1
#019
41533-MB0-000
SPACER D, RING GEAR (2.00)
$21.44¢10 719
1
#019
41532-MB0-000
SPACER C, RING GEAR (1.94)
$21.44¢10 719
1
#019
41531-MB0-000
SPACER B, RING GEAR (1.88)
$21.44¢10 719
1
#019
41530-MB0-000
SPACER A, RING GEAR (1.82)
$21.44¢10 719
1
#020
42625-MAH-000
COLLAR B, RR. DISTANCE
$47.44¢23 719
1
#021
90109-ME5-770
BOLT, SOCKET (8X11)
$6.95¢3 475
1
#022
90133-MEG-A60
BOLT, FLANGE (8X27)
$1.60¢800
1
#023
90134-MGE-000
BOLT, FLANGE (10X35)
$3.71¢1 856
1
#024
90170-MB0-000
BOLT, HEX. (6X16)
$3.28¢1 638
1
#025
90306-MCH-003
NUT, FLANGE (18MM)
$15.26¢7 631
1
#026
90381-MT3-000
NUT, HEX. (16MM)
$8.77¢4 387
1
#027
90471-580-000
GASKET (8MM)
$3.65¢1 825
1
#028
91051-MB0-005
BEARING, RADIAL BALL (16012C3)
$155.65¢77 825
1
#028
91051-MG8-005
BEARING, RADIAL BALL (16012C3)
$155.65¢77 825
1
#029
91052-MG8-005
BEARING, RADIAL BALL (57/34C3)
$59.51¢29 756
1
#029
91052-MB0-003
BEARING, RADIAL BALL (57/34C3)
$59.51¢29 756
1
#030
91061-MB0-005
BEARING, RADIAL BALL (6305)
$161.15¢80 575
1
#030
91061-MG8-005
BEARING, RADIAL BALL (6305) (KOYO)
$161.15¢80 575
1
#031
91261-MB0-003
OIL SEAL (34X50X7) (ARAI)
$14.09¢7 044
1
#031
91261-MB0-005
OIL SEAL (34X50X7) (NOK)
$14.09¢7 044
1
#032
91262-ME9-003
OIL SEAL (39X51X7) (ARAI)
$19.96¢9 981
1
#032
91262-ME9-005
OIL SEAL (39X51X7) (NOK)
$19.96¢9 981
1
#033
91265-MB0-000
OIL SEAL (60X80X8)
$17.89¢8 944
1
#033
91265-MB0-003
OIL SEAL (60X80X8) (ARAI)
$17.89¢8 944
1
#034
91302-001-020
O-RING (30.8MM)
$4.54¢2 269
1
#035
91356-MB0-000
O-RING (35.5X2.4)
$4.06¢2 031
1
#035
91356-MB0-005
O-RING (35.2X2.4) (NOK)
$4.06¢2 031
1
#036
91359-MB0-000
O-RING (58.5X3.5)
$6.38¢3 188
1
#037
92101-06012-0A
BOLT, HEX. (6X12)
$1.82¢913
1
#038
92900-10032-0E
BOLT, STUD (10X32)
$4.74¢2 369
1
#039
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
