MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

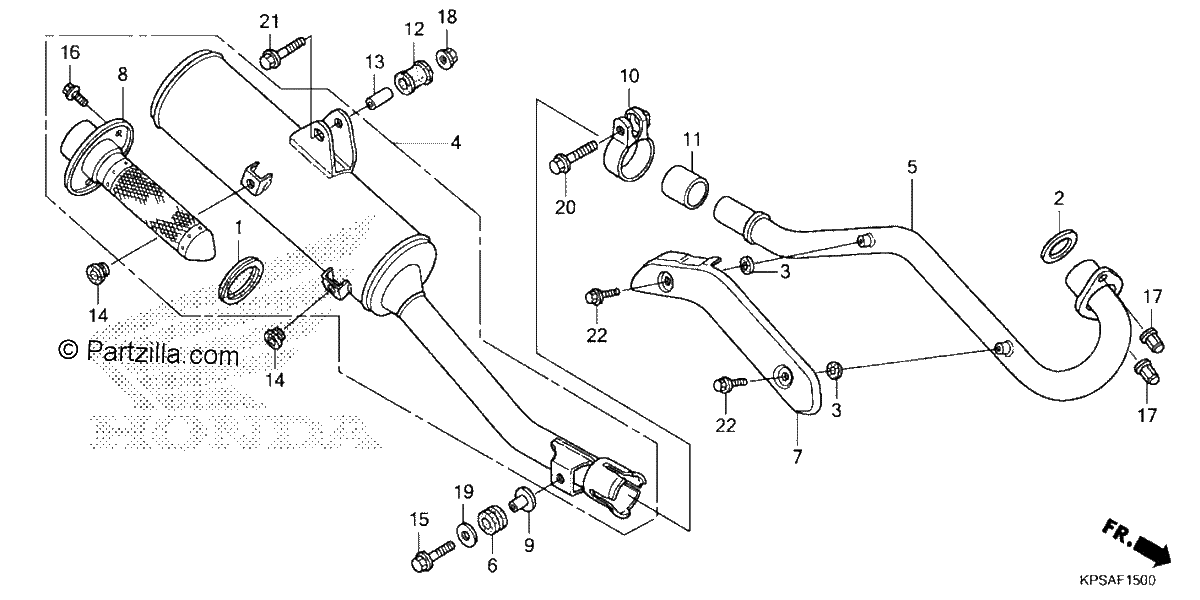

Diagrama de MUFFLER

Repuestos

#001
18291-KPS-900
GASKET, EX. MUFFLER
$8.91¢4 456
1
#002
18291-MN5-650
GASKET, EX. PIPE
$4.21¢2 105
1
#003
18292-KBR-000
GASKET, PROTECTOR
$3.85¢1 926
1
#004
18300-KPS-307
MUFFLER ASSY., EX. (COO)
$1065.67¢532 835
1
#004
18300-KPS-A70
MUFFLER ASSY., EX.
$1065.67¢532 835
1
#005
18320-KPS-900
PIPE, EX.
$52.72¢26 358
1
#006
18328-KAE-000
RUBBER, RR. CHAMBER MOUNTING
$2.68¢1 340
1
#007
18345-KPS-901ZA
PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)
$58.71¢29 354
1
#008
18355-KPS-306
ARRESTER ASSY. (COO)
$308.23¢154 117
1
#008
18355-KPS-730
ARRESTER ASSY.
$308.23¢154 117
1
#009
18356-KAE-000
COLLAR, MUFFLER MOUNTING
$5.40¢2 702
1
#010
18373-KRH-D20
BAND, EX. PIPE
$61.13¢30 567
1
#011
18391-MB0-891
GASKET, EX.
$19.14¢9 568
1
#012
18421-KFB-000
RUBBER, MUFFLER MOUNTING
$5.01¢2 507
1
#013
18422-KFB-000
COLLAR, MUFFLER MOUNTING
$5.28¢2 639
1
#014
83512-KA4-700
RUBBER, SIDE COVER
$5.11¢2 553
1
#015
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#016
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#016
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#017
90305-KPS-900
NUT, HEX. CAP (7MM)
$9.34¢4 669
1
#018
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#019
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#020
95701-08040-07
BOLT, FLANGE (8X40)
$2.75¢1 374
1
#021
95701-08045-07
BOLT, FLANGE (8X45)
$2.56¢1 282
1
#022
96001-06008-07
BOLT, FLANGE (6X8)
$1.12¢558
1
