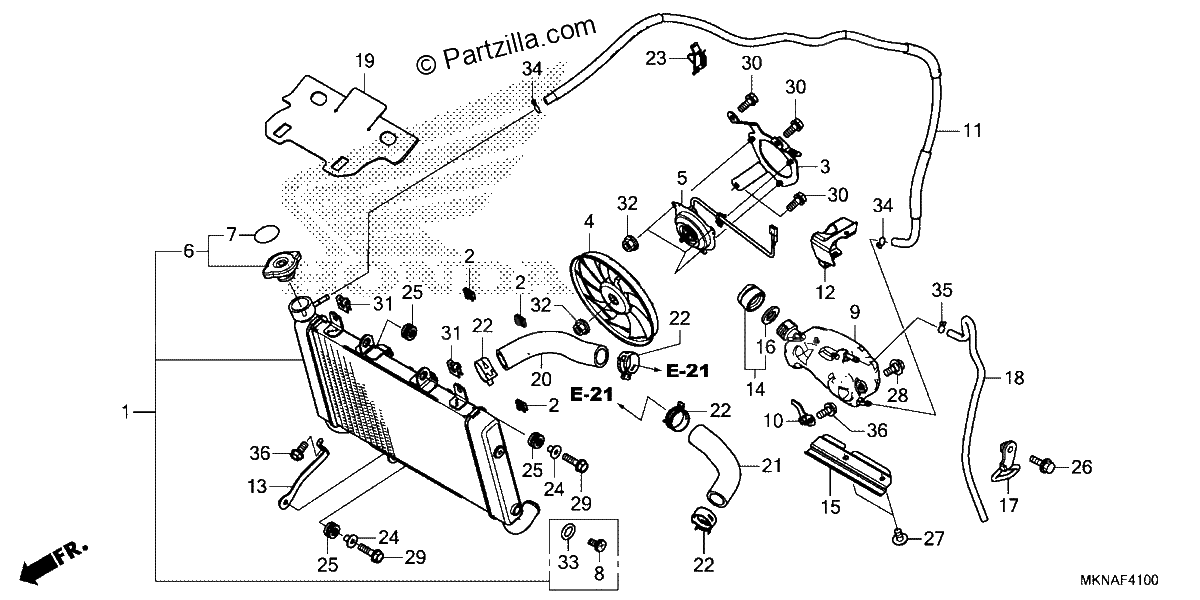

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RADIATOR (TOYO)
$218.27¢109 135
#002
NUT, SETTING (6MM)
$3.45¢1 725
#003
SHROUD
$24.23¢12 115
#004
FAN, COOLING
$48.64¢24 322
#005
MOTOR Assembly., FAN
$138.80¢69 402
#006
CAP, RADIATOR
$32.35¢16 175
#007
LABEL, RADIATOR CAP
$3.36¢1 679
#008
PETCOCK, DRAIN
$3.99¢1 995
#009
TANK, RADIATOR RESERVE
$8.97¢4 485
#010
STAY, RESERVE TANK
$3.48¢1 742
#011
TUBE, RESERVE TANK
$24.95¢12 478
#012
COVER, RESERVE TANK
$6.79¢3 393
#013
STAY, RADIATOR (LOWER)
$9.73¢4 865
#014
CAP ASSY., RESERVE TANK
$7.69¢3 847
#015
GUARD, RESERVE TANK HEAT
$12.97¢6 486
#016
GASKET, RESERVE TANK
$4.17¢2 087
#017
STAY, TUBE CLAMP
$8.75¢4 376
#018
TUBE, RESERVE TANK OVERFLOW
$7.46¢3 732
#019
GUARD, RADIATOR HEAT
$6.61¢3 306
#020
HOSE A, RADIATOR
$15.98¢7 993
#021
HOSE B, RADIATOR
$14.83¢7 417
#022
CLIP, WATER HOSE
$8.16¢4 082
#023
CLIP, WIRE HARNESS
$3.47¢1 737
#024
COLLAR, RADIATOR MOUNTING
$4.47¢2 237
#025
RUBBER, HEADLIGHT CASE MOUNTING
$3.86¢1 932
#026
BOLT, FLANGE (6X16)
$2.64¢1 322
#027
SCREW, PAN (6X12)
$2.59¢1 294
#028
BOLT, FLANGE (6MM)
$3.36¢1 679
#029
BOLT, FLANGE (6X22)
$1.45¢724
#030
BOLT-WASHER (6X12)
$2.28¢1 138
#031
NUT, CLIP (6MM)
$1.26¢633
#032
NUT, SERRATE (5MM)
$2.75¢1 374
#033
O-RING (9.8X1.9)
$3.82¢1 909
#034
CLIP, TUBE (B10)
$2.24¢1 121
#035
CLIP, TUBE (C9)
$1.41¢707
#036
BOLT, FLANGE (6X14)
$1.13¢564
