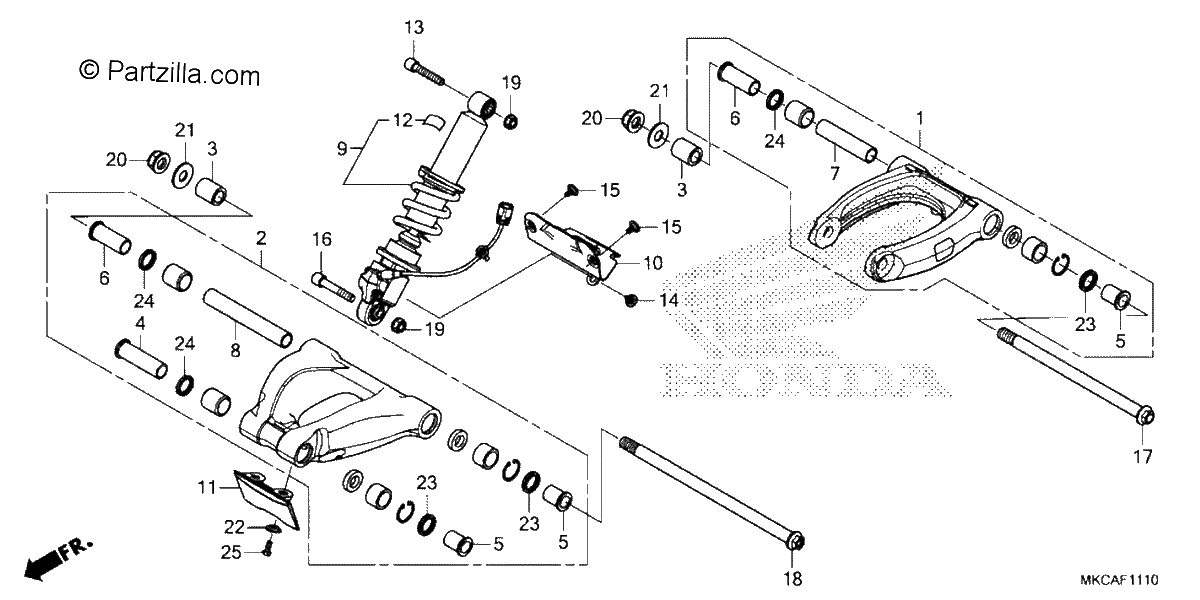

CUSHION ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
ARM ASSY., FR. (UPPER) (TYPE1)
$551.06¢275 529
#002
ARM ASSY., FR. (LOWER) (TYPE1)
$744.18¢372 088
#003
BOLT, FR. PIVOT ADJUSTING
$27.04¢13 518
#004
COLLAR A, R. PIVOT DISTANCE
$24.86¢12 432
#005
COLLAR, L. PIVOT DISTANCE
$16.21¢8 108
#006
COLLAR B, R. PIVOT DISTANCE
$22.34¢11 172
#007
COLLAR, FR. ARM DISTANCE (UPPER)
$12.83¢6 417
#008
COLLAR A, FR. ARM DISTANCE (LOWER)
$20.11¢10 057
#009
CUSHION ASSY., FR.
$2209.09¢1 104 546
#010
COVER, ARM (LOWER)
$152.63¢76 314
#011
FLAP, AIR GUIDE
$21.21¢10 603
#012
LABEL, RR. DAMPER (ENGLISH)
$5.84¢2 921
#013
BOLT, SOCKET (10X55)
$6.43¢3 214
#014
SCREW, SPECIAL (5X11)
$3.07¢1 535
#015
SCREW, SPECIAL (5X15)
$3.36¢1 679
#016
BOLT, SOCKET (10X58)
$9.94¢4 968
#017
BOLT, FR. ARM PIVOT (UPPER)
$53.82¢26 910
#018
BOLT, FR. ARM PIVOT (LOWER)
$63.43¢31 717
#019
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
#020
NUT, U (16MM)
$9.97¢4 985
#021
WASHER, ARM PIVOT
$6.55¢3 278
#022
WASHER, KNUCKLE
$2.64¢1 322
#023
OIL SEAL (22X30X5)
$6.47¢3 237
#024
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
#025
BOLT, HEX. (5X12)
$1.23¢615
#025
BOLT, HEX. (5X12)
$1.23¢615
