WATER PUMP

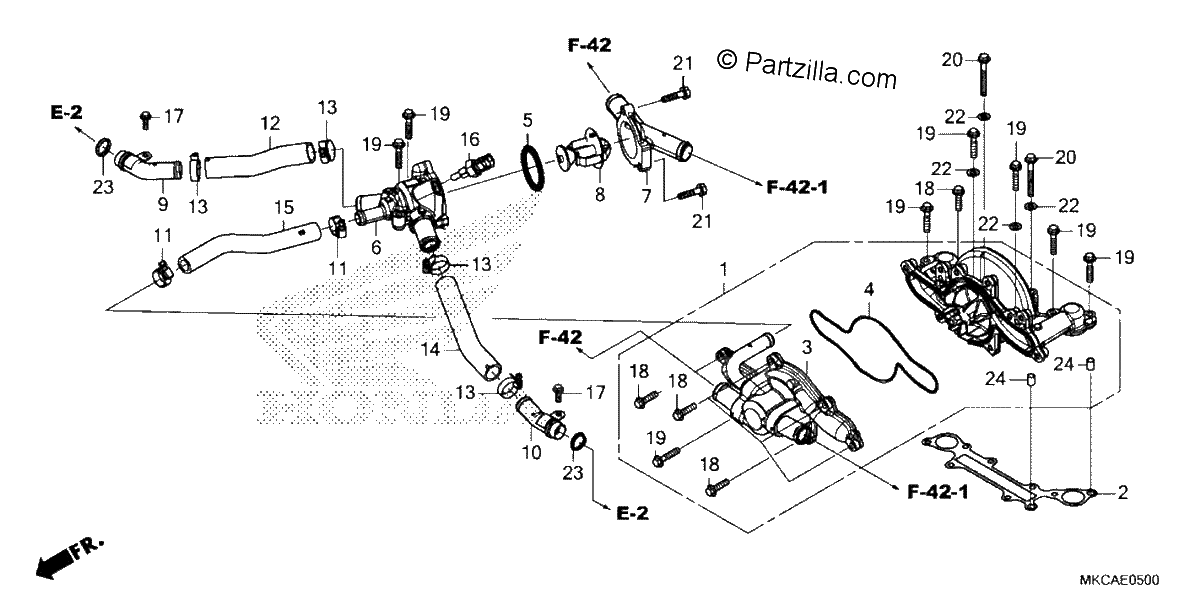

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
WATER PUMP ASSY.
$634.35¢317 175
#002
GASKET, WATER PUMP BODY
$11.03¢5 513
#003
COVER, WATER PUMP
$195.78¢97 888
#004
GASKET, WATER PUMP COVER
$13.43¢6 713
#005
RUBBER, THERMOSTAT
$7.35¢3 675
#006
CASE, THERMOSTAT
$168.08¢84 038
#007
COVER, THERMOSTAT
$84.51¢42 256
#008
THERMOSTAT (NIPPON THERMOSTAT)
$90.26¢45 131
#009
PIPE, R. WATER
$43.72¢21 862
#010
PIPE, L. WATER
$43.72¢21 862
#011
CLAMP A, WATER HOSE
$14.94¢7 469
#012
HOSE, R. HEAD
$10.26¢5 131
#013
CLAMP B, WATER HOSE
$9.10¢4 550
#014
HOSE, L. HEAD
$11.63¢5 813
#015
HOSE, BYPASS (BOTTOM)
$10.26¢5 131
#016
SENSOR ASSY., WATER TEMPERATURE
$58.26¢29 131
#017
BOLT, FLANGE (6X16) (NSHF)
$2.73¢1 363
#018
BOLT, FLANGE (6X22) (NSHF)
$2.89¢1 444
#019
BOLT, FLANGE (6X28) (NSHF)
$3.05¢1 525
#020
BOLT, FLANGE (6X45) (NSHF)
$3.34¢1 669
#021
BOLT, FLANGE (6X23) (CT200)
$2.60¢1 300
#022
WASHER, SEALING (6MM)
$2.92¢1 463
#023
SEAL, WATER PIPE (22.5MM)
$7.44¢3 719
#024
PIN, DOWEL (8X10)
$2.89¢1 444
