RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

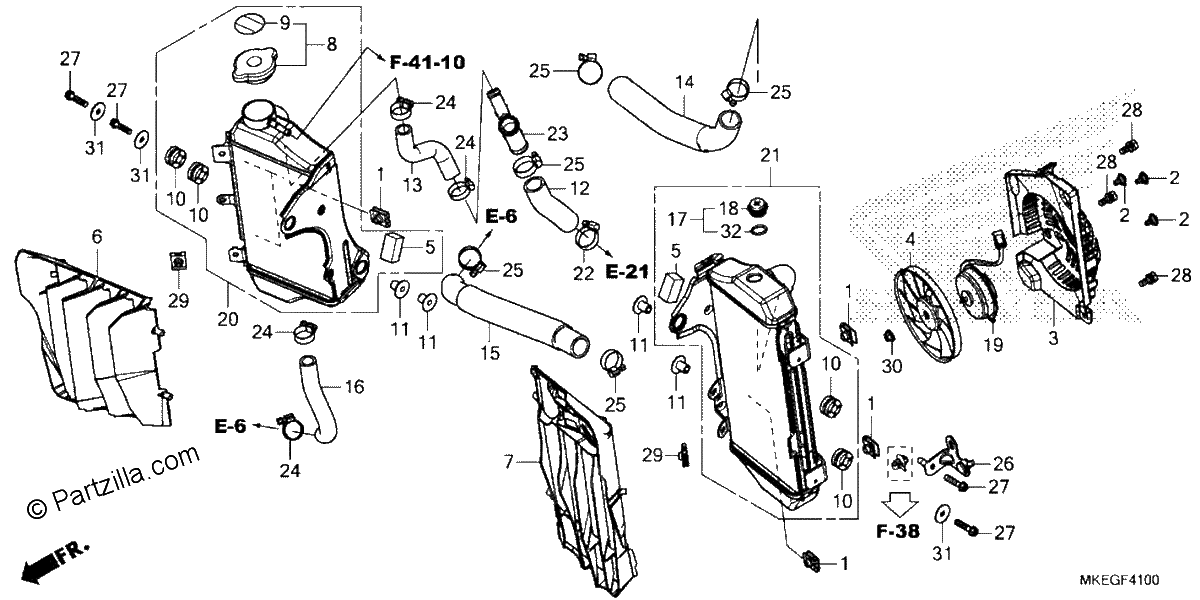

Diagrama de RADIATOR

Repuestos

#001
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#002
19016-KEA-003
SCREW, PAN (4X8.5)
$2.09¢1 044
1
#003
19016-MKE-A51
SHROUD, FAN
$73.59¢36 794
1
#004
19020-KVZ-631
FAN, COOLING
$34.04¢17 019
1
#005
19021-MEN-A30
RUBBER, RADIATOR (UPPER)
$2.97¢1 487
1
#006
19033-MKE-A50
GRILLE, R. RADIATOR
$51.50¢25 750
1
#007
19034-MKE-A50
GRILLE, L RADIATOR
$51.50¢25 750
1
#008
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#009
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#010
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#011
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#012
19061-MKE-A50
HOSE A, WATER
$6.09¢3 044
1
#013
19062-MKE-A50
HOSE B, WATER
$7.75¢3 875
1
#014
19063-MKE-A50
HOSE C, WATER
$37.64¢18 819
1
#015
19064-MKE-A50
HOSE D, WATER
$37.02¢18 513
1
#016
19065-MKE-A50
HOSE E, WATER
$7.75¢3 875
1
#017
19070-MEC-003
PETCOCK ASSY., DRAIN
$12.95¢6 475
1
#018
19071-MEC-003
PETCOCK, DRAIN
$4.34¢2 169
1
#019
19080-MKE-A51
MOTOR Assembly., FAN
$222.91¢111 456
1
#020
19100-MKE-A50
RADIATOR ASSY., R.
$401.21¢200 606
1
#021
19160-MKE-A50
RADIATOR Assembly., Left
$343.60¢171 800
1
#022
19502-MKE-A00
CLAMP, WATER HOSE (D27)
$11.74¢5 869
1
#023
19503-MKE-A50
JOINT, HOSE THREE WAY
$45.60¢22 800
1
#024
19505-MKE-A50
CLAMP, WATER HOSE (D21)
$11.19¢5 594
1
#025
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#026
50155-MKE-A50
STAY, HORN
No Disponible
1
#027
90020-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#028
90120-KCR-003
BOLT-WASHER (6X16)
$5.32¢2 662
1
#029
90201-KPR-901
NUT, CLIP (6MM)
$2.40¢1 200
1
#030
90315-MFL-003
NUT, FLANGE (3MM)
$2.99¢1 494
1
#031
90403-KA3-830
WASHER, RADIATOR MOUNTING
$3.04¢1 519
1
#032
91353-MEC-003
O-RING (9.8X1.9)
$4.15¢2 075
1
