WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

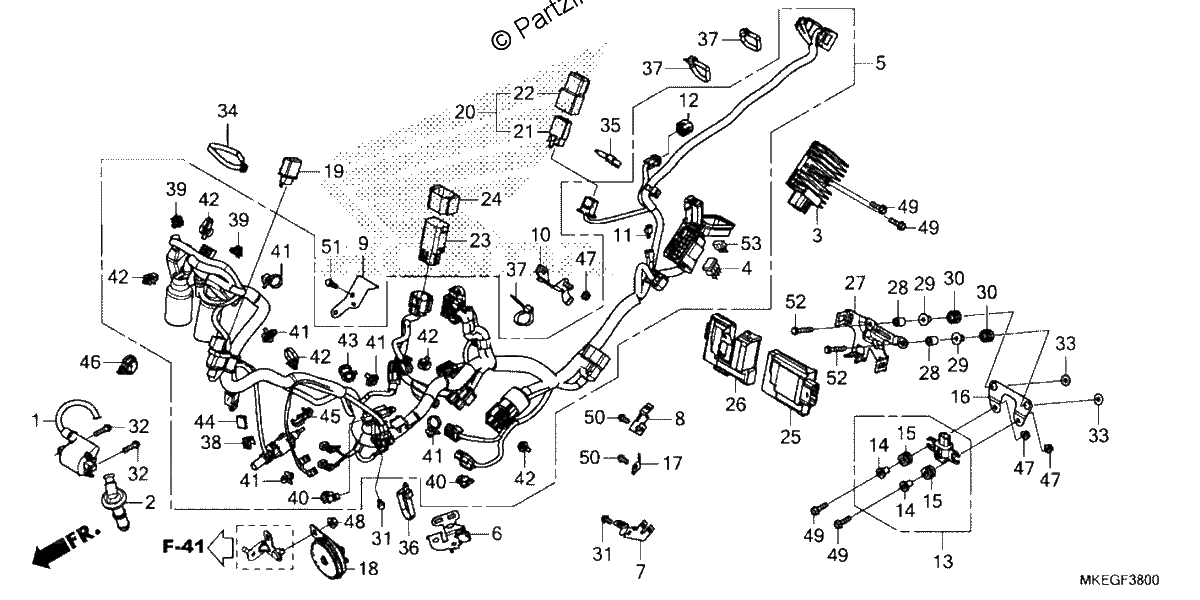

Diagrama de WIRE HARNESS

Repuestos

#001
30500-MKE-A01
COIL ASSY., IGNITION
$74.22¢37 111
1
#002
30700-MKE-A01
CAP ASSY., NOISE SUPPRESSOR
$66.64¢33 321
1
#003
31600-K87-A01
RECTIFIER ASSY., REGULATE
$127.29¢63 647
1
#004
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
1
#005
32100-MKE-A51
WIRE HARNESS
$1290.81¢645 403
1
#006
32111-MKE-A50
STAY, HARNESS
$8.84¢4 422
1
#007
32125-MKE-A50
STAY, HARNESS (L)
$6.58¢3 289
1
#008
32126-MKE-A50
STAY, CONNECTOR (L)
$8.97¢4 485
1
#009
32127-MKE-A50
STAY, CABLE
$8.97¢4 485
1
#010
32129-MKE-A50
STAY, HARNESS
$8.84¢4 422
1
#011
32146-S84-003
CONNECTOR, DIODE (2P) (3A)
$16.01¢8 004
1
#012
32606-GEV-761
CAP, DUMMY (4P) (RED)
$5.36¢2 680
1
#013
35160-MKE-A51
SENSOR Assembly., BANK ANGLE
$101.12¢50 560
1
#014
35161-MKE-A51
COLLAR
$5.77¢2 886
1
#015
35163-MGC-003
GROMMET
$2.66¢1 328
1
#016
35165-MKE-A50
STAY, BANK ANGLE SENSOR
$11.20¢5 600
1
#017
35711-MKE-A50
STAY, SIDE STAND SWITCH WIRE
$4.52¢2 260
1
#018
38110-MBV-712
HORN ASSY. (HIGH)
$100.91¢50 456
1
#019
38301-KZZ-J01
RELAY, TURN SIGNAL (LED)
$67.38¢33 689
1
#020
38500-GC7-612
RELAY ASSY., STARTER
$59.42¢29 710
1
#021
38501-GN2-014
RELAY, STARTER (MITSUBA)
$53.02¢26 508
1
#022
38506-GC7-611
SUSPENSION, STARTER RELAY (MITSUBA)
$5.01¢2 507
1
#023
38580-HP5-601
RELAY, WATERPROOF (15AX2)
$49.92¢24 961
1
#024
38585-MKE-A11
CUSHION, RELAY
$6.45¢3 226
1
#025
38770-MKE-A52
PGM-FI UNIT
$944.24¢472 121
1
#026
38771-MKE-A00
SUSPENSION, PGM-FI UNIT
$11.07¢5 537
1
#027
50124-MKE-A00
BRACKET, ECU
$21.93¢10 965
1
#028
50125-MKE-A50
COLLAR, ECU BRACKET
$5.66¢2 829
1
#029
61104-MKE-A50
COLLAR
$5.16¢2 582
1
#030
84703-MKE-A50
RUBBER, MOUNT
$6.19¢3 093
1
#031
90020-GHB-610
BOLT, FLANGE (6X10)
$2.51¢1 254
1
#032
90020-GHB-680
BOLT, FLANGE (6X25)
$2.68¢1 340
1
#033
90535-MKE-A00
WASHER (6.1MM)
$2.94¢1 472
1
#034
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#035
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#036
90650-MA6-720
BAND, WIRE HARNESS
$4.62¢2 311
1
#037
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#038
91531-TG1-003
CLIP, HARNESS BAND (145MM) (BLACK)
$1.51¢753
1
#039
91533-SDA-003
CLIP, CONNECTOR (BEIGE)
$3.00¢1 501
1
#040
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
1
#041
91540-S7S-003
CLIP, HARNESS BAND (157.7MM) (BLACK)
$6.55¢3 278
1
#042
91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$3.69¢1 846
1
#043
91542-SWY-003
CLIP, HARNESS BAND (158.9MM) (BLACK)
$0.68¢339
1
#044
91554-SM4-003
HOLDER, BRACKET (RED)
$9.26¢4 629
1
#045
91558-P5G-A01
CLIP, TUBE (11MM) (BLACK)
$9.61¢4 807
1
#046
91558-SD5-003
CLIP, WIRE HARNESS (BLACK)
$8.44¢4 220
1
#047
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#048
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#049
95701-06022-08
BOLT, FLANGE (6X22)
$2.04¢1 018
1
#050
96001-06010-00
BOLT, FLANGE (6X10)
$1.92¢960
1
#051
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#052
96001-06038-00
BOLT, FLANGE (6X38)
$0.64¢322
1
#053
98200-41000
FUSE, MINI (10A)
$1.56¢782
1
