HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

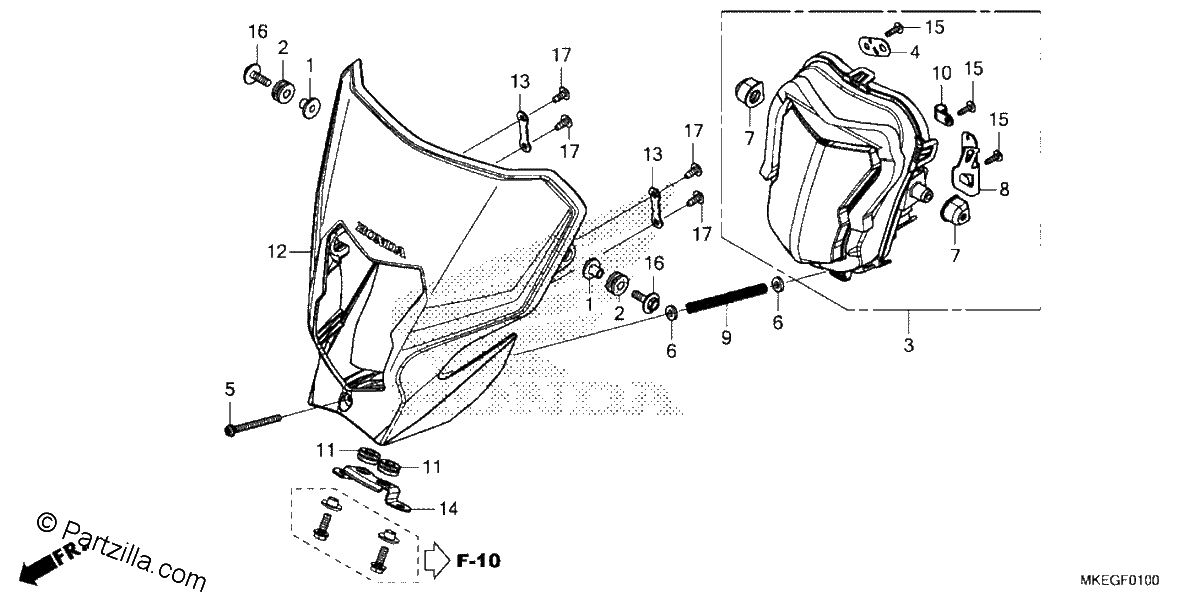

Diagrama de HEADLIGHT

Repuestos

#001
17239-MGS-D30
COLLAR, AIR CLEANER MOUNTING
$4.76¢2 381
1
#002
18294-KSV-J00
RUBBER, PROTECTOR GASKET
$2.52¢1 263
1
#003
33100-MKE-A51
HEADLIGHT ASSY.
$1103.55¢551 775
1
#004
33102-MKE-A51
STAY A
$5.14¢2 569
1
#005
33103-MKE-A50
SCREW, PAN (5X70)
$9.30¢4 650
1
#006
33104-MKE-A50
WASHER, PLAIN (5MM)
$1.13¢563
1
#007
33105-MKE-A51
CAP, RUBBER
$5.07¢2 537
1
#008
33106-MKE-A51
STAY B
$15.26¢7 631
1
#009
33107-MKE-A50
SPRING, BEAM ADJUST
$6.54¢3 269
1
#010
33116-KPP-T01
CLAMP, WIRE
$2.92¢1 463
1
#011
36037-657-000
GROMMET A, TUBE
$7.46¢3 731
1
#011
36043-657-000
GROMMET, WIRE HARNESS
$7.46¢3 731
1
#012
61300-MKE-A50ZA
VISOR SET, FR. (TYPE1) (WL)
$227.59¢113 794
1
#013
61317-MKE-A50
PLATE, HEADLIGHT UNIT
$2.99¢1 494
1
#014
61320-MKE-A50
STAY, HEADLIGHT (LOWER)
$16.48¢8 238
1
#015
90102-MKE-A51
SCREW, SPECIAL (4X14)
$2.99¢1 494
1
#016
93404-06020-07
BOLT-WASHER (6X20)
$2.09¢1 044
1
#017
93903-25220
SCREW, TAPPING (5X12)
$1.16¢581
1
