MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

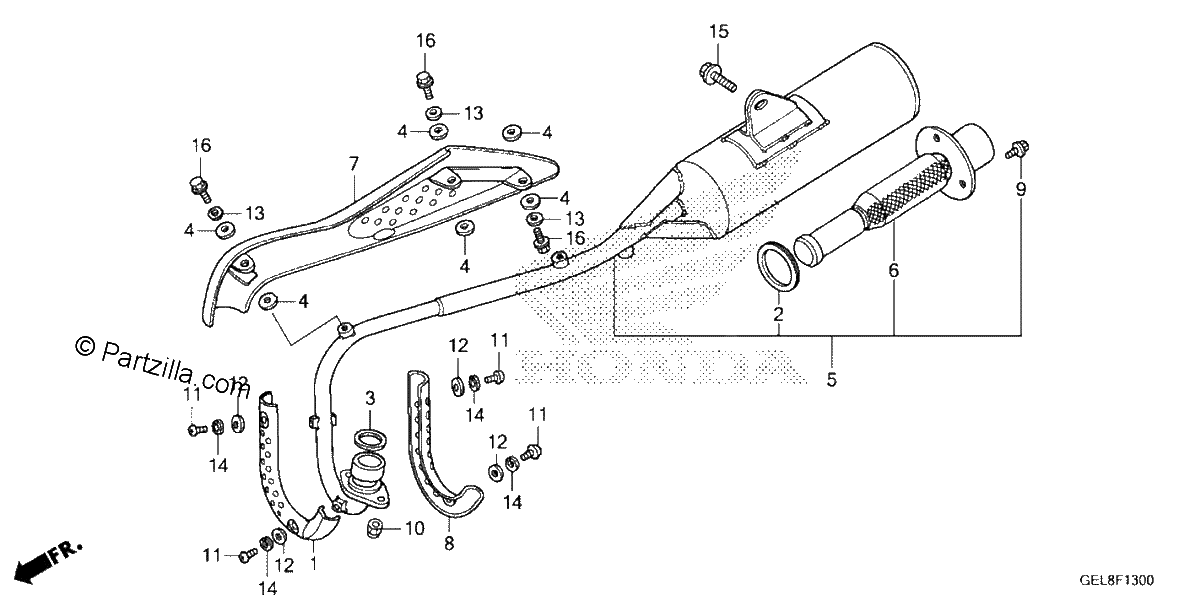

Diagrama de MUFFLER

Repuestos

#001
18240-GEL-A80
COVER A, EX. PIPE
$20.26¢10 131
1
#002
18291-KR1-680
GASKET A, EX PIPE
$9.35¢4 675
1
#003
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#003
18291-KVR-C00
GASKET, EX. PIPE
$7.22¢3 611
1
#004
18293-GEL-A80
GASKET, PROTECTOR
$13.75¢6 877
1
#005
18300-GEL-306
MUFFLER ASSY. (COO)
$384.57¢192 286
1
#005
18300-GEL-A80
MUFFLER ASSY.
$384.57¢192 286
1
#006
18317-KYK-910
ARRESTER, SPARK
No Disponible
1
#007
18355-GEL-305
PROTECTOR, EX. PIPE (COO)
$82.33¢41 164
1
#007
18355-GEL-A80
PROTECTOR, EX. PIPE
$82.33¢41 164
1
#008
18450-GEL-A80
COVER B, EX. PIPE
$20.26¢10 131
1
#009
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#009
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#010
90207-165-600
NUT, CAP (6MM)
$7.96¢3 979
1
#010
90304-438-000
NUT, CAP (6MM)
$7.96¢3 979
1
#011
93500-05006-0G
SCREW, PAN (5X6)
$0.98¢489
1
#012
94101-05700
WASHER, PLAIN (5MM)
$1.17¢586
1
#013
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#014
94111-05700
WASHER, SPRING (5MM)
$1.33¢667
1
#015
95701-08035-07
BOLT, FLANGE (8X35)
$1.66¢828
1
#016
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
