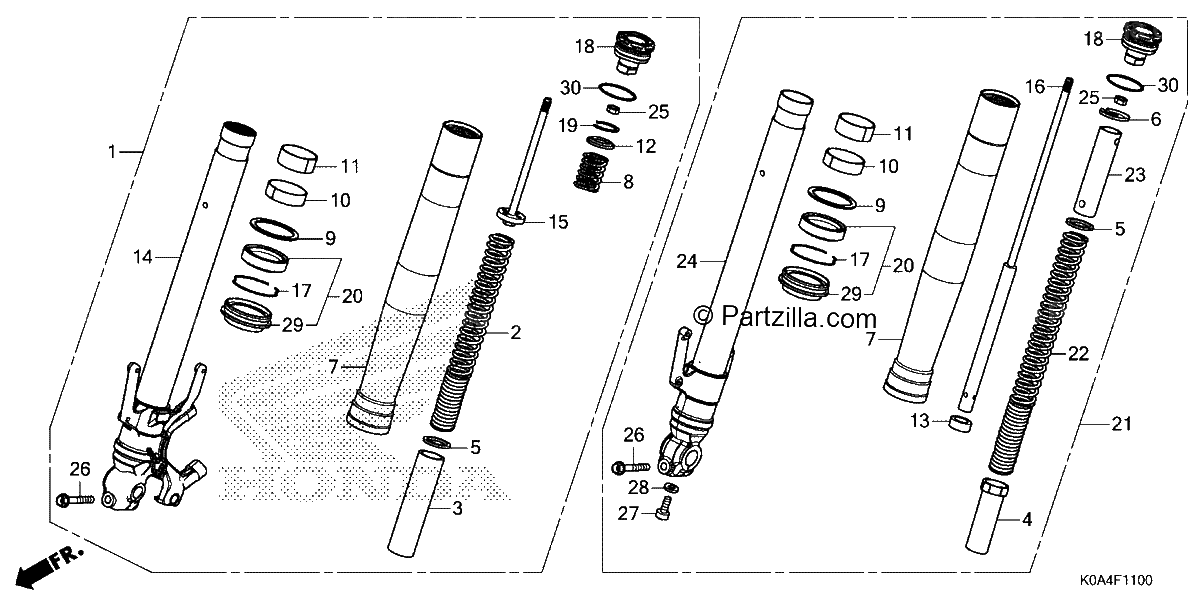

FRONT FORK 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK ASSY., R. FR. (SHOWA)
$730.48¢365 238
#002
SPRING, FR. FORK
$73.59¢36 794
#003
COLLAR, SPRING
$7.31¢3 656
#004
JOINT, SPRING
$1.57¢788
#005
SEAT, SPRING (SHOWA)
$5.81¢2 906
#006
STOPPER, SPRING SEAT
$17.79¢8 894
#007
TUBE (OUTER)
$299.16¢149 581
#008
SPRING, REBOUND
$8.97¢4 488
#009
RING, BACK-UP (SHOWA)
$11.29¢5 644
#010
BUSH, GUIDE
$8.80¢4 400
#011
BUSH, SLIDER
$8.80¢4 400
#012
SEAT, STOPPER
$11.90¢5 950
#013
PLATE, CENTERING
$2.66¢1 331
#014
PIPE, R. SLIDE
$341.13¢170 563
#015
ROD
$26.41¢13 206
#016
DAMPER, FR.
$152.21¢76 106
#017
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#018
BOLT, FR. FORK
$81.79¢40 894
#019
RING, STOPPER
$2.88¢1 438
#020
SEAL SET, FR. FORK
$26.44¢13 219
#021
FORK ASSY., L. FR. (SHOWA)
$805.09¢402 544
#022
SPRING B, FR. FORK
$73.59¢36 794
#023
COLLAR B, SPRING
$8.50¢4 250
#024
PIPE, L. SLIDE
$327.81¢163 906
#025
NUT, HEX.
$1.68¢838
#026
BOLT, FLANGE (8X45)
$5.99¢2 994
#027
BOLT, SOCKET (8X22)
$2.60¢1 300
#028
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#029
DUST SEAL (SHOWA)
$10.00¢5 000
#030
O-RING (39.7X2.4)
$2.73¢1 363
