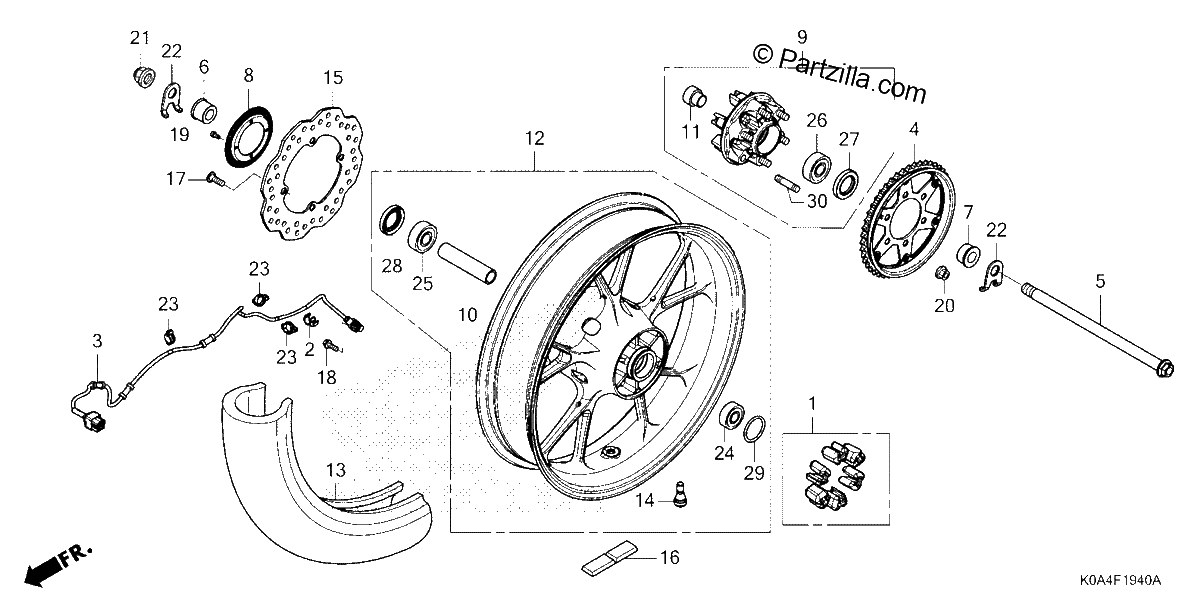

REAR WHEEL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$52.09¢26 044
#002
CLAMP, PIPE
$8.64¢4 319
#003
SENSOR, RR. WHEEL SPEED
$50.31¢25 156
#004
SPROCKET, FINAL DRIVEN (36T)
$70.64¢35 319
#005
AXLE, RR. WHEEL
$70.90¢35 450
#006
COLLAR, Right Rear WHEEL SIDE
$19.94¢9 969
#007
COLLAR, L. RR. WHEEL SIDE
$15.82¢7 913
#008
RING, RR. PULSER
$117.81¢58 906
#009
FLANGE SUB-ASSY., RR. DRIVEN *NH303M*(MAT AXIS GRAY METALLIC)
$190.96¢95 481
#010
COLLAR, RR. WHEEL DISTANCE
$11.63¢5 813
#011
COLLAR B, Rear AXLE DISTANCE
$21.50¢10 750
#012
WHEEL SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$363.01¢181 506
#013
TIRE, RR. (150/60R17M/C 66H) (DUNLOP)
$185.52¢92 762
#013
TIRE, RR. (150/60R17M/C 66H) (DUNLOP)
$185.52¢92 762
#014
VALVE, RIM
$0.71¢356
#014
VALVE, RIM (TRITON)
$0.71¢356
#015
DISK, RR. BRAKE
$118.42¢59 213
#016
WEIGHT, BALANCE (20G)
$5.22¢2 613
#016
WEIGHT, BALANCE (15G)
$4.68¢2 338
#016
WEIGHT, BALANCE (10G)
$3.91¢1 956
#017
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#018
BOLT, FLANGE (6X14)
$0.74¢369
#019
BOLT, TORX (5X10)
$2.99¢1 494
#020
NUT, U (10MM) (FUJI SEIMITSU)
$3.83¢1 913
#021
NUT, U (16MM)
$5.67¢2 838
#022
WASHER, RR. AXLE
$6.16¢3 081
#023
CLIP, CABLE (14MM)
$2.27¢1 138
#024
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$22.32¢11 163
#024
BEARING, RADIAL BALL (6203UU) (NTN)
$22.32¢11 163
#025
BEARING, RADIAL BALL L (6303UU) (NTN)
$25.71¢12 856
#026
BEARING, RADIAL BALL L (6204UU) (NTN)
$237.97¢118 988
#027
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#027
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#028
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#028
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#029
O-RING (48X2)
$1.57¢788
#030
BOLT, STUD (10X25)
$1.95¢975
