REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

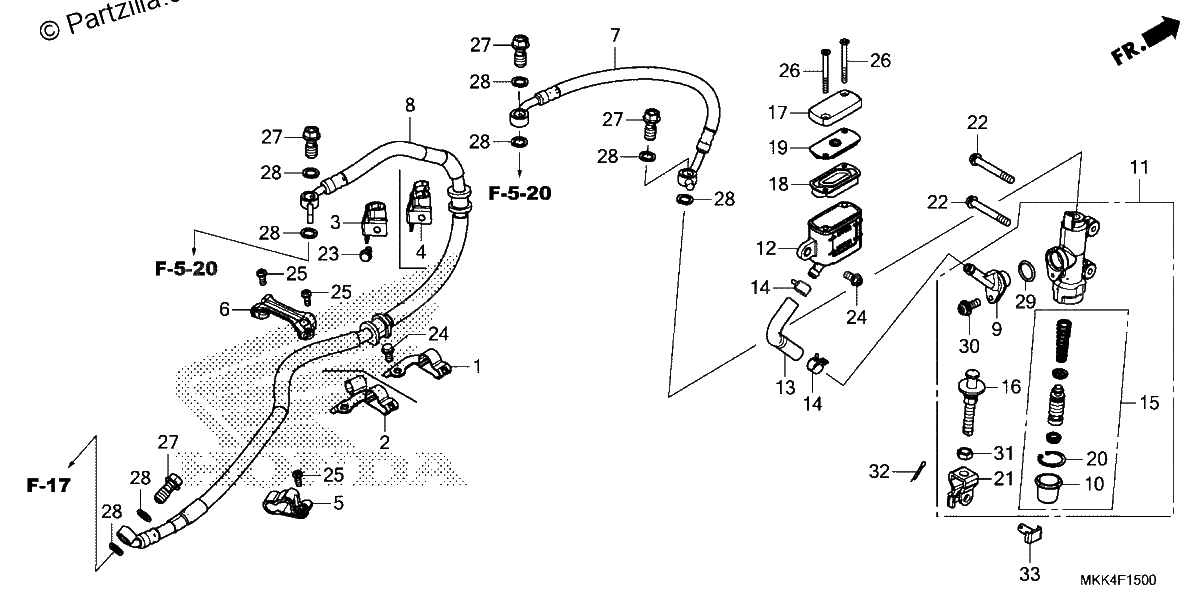

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#001
43155-MJP-G50
CLAMP, RR. BRAKE HOSE
$10.33¢5 164
1
#003
43156-MJP-G60
CLAMP A, RR. BRAKE HOSE
$10.61¢5 307
1
#005
43157-MJP-G80
GUIDE, Rear BRAKE HOSE
$8.79¢4 393
1
#006
43158-MJP-G50
GUIDE B, BRAKE HOSE
$5.81¢2 904
1
#007
43310-MKK-D01
HOSE A, RR. BRAKE
$48.38¢24 190
1
#008
43311-MKK-D01
HOSE B, RR. BRAKE
$76.94¢38 468
1
#009
43503-MR8-006
CONNECTOR, MASTER CYLINDER
$8.58¢4 289
1
#010
43504-MB2-006
BOOT
$10.80¢5 399
1
#011
43510-MKK-D01
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$188.89¢94 444
1
#012
43511-KW7-881
CUP, OIL (NISSIN)
$21.47¢10 735
1
#013
43512-MKK-D01
HOSE, RR. MASTER CYLINDER
$10.22¢5 112
1
#014
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#015
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
1
#016
43530-MJ0-006
ROD, PUSH
$24.64¢12 322
1
#017
45513-K33-D01
CAP, MASTER CYLINDER
$19.52¢9 758
1
#018
45520-GW0-911
DIAPHRAGM
$8.13¢4 065
1
#019
45521-GW0-911
PLATE, DIAPHRAGM
$6.39¢3 197
1
#020
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#021
46504-MAL-601
JOINT, BRAKE ROD
$15.87¢7 935
1
#022
90020-GHB-750
BOLT, FLANGE (6X45)
$3.21¢1 604
1
#023
90021-GHB-610
BOLT, FLANGE (6X10)
$2.51¢1 254
1
#024
90021-GHB-620
BOLT, FLANGE (6X12)
$2.64¢1 322
1
#025
90107-MJP-G50
SCREW, PAN (5X12)
$2.22¢1 110
1
#026
90140-KZZ-901
SCREW, FLAT (4X45)
$6.80¢3 398
1
#027
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#028
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#029
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#030
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#030
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#031
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#032
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#033
95015-54000
PIN D, JOINT
$4.74¢2 369
1
