REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

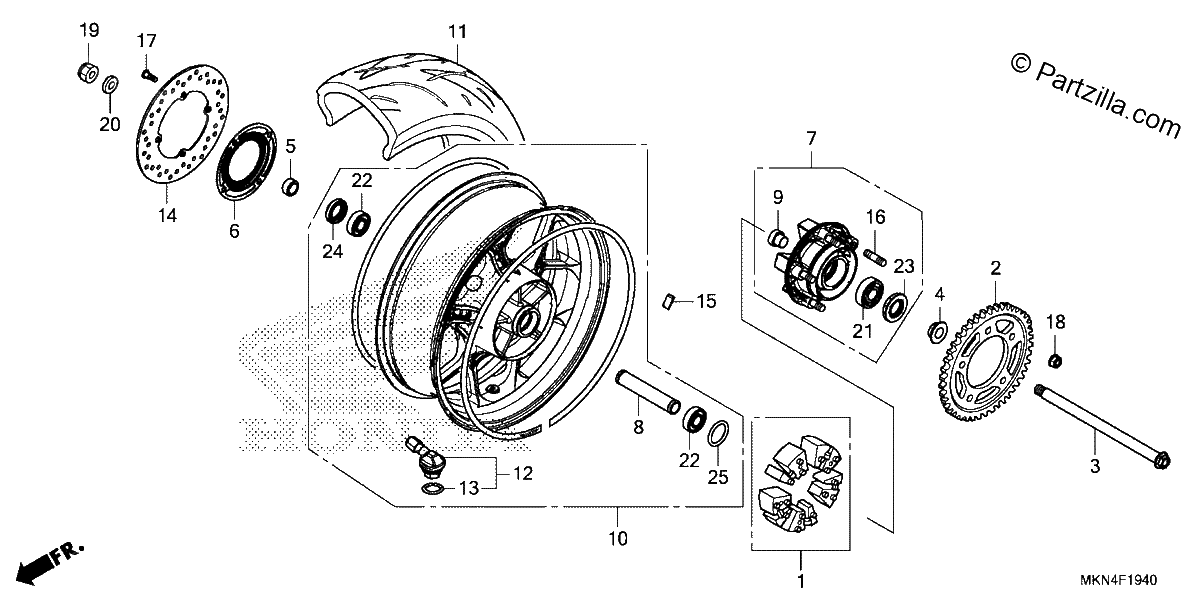

Diagrama de REAR WHEEL

Repuestos

#001
06410-MGS-D30
DAMPER SET, WHEEL
$61.81¢30 906
1
#002
41201-MKN-D50
SPROCKET, FINAL DRIVEN (42T)
$64.39¢32 194
1
#002
41201-MKN-D51
SPROCKET, FINAL DRIVEN (42T)
$64.39¢32 194
1
#003
42301-MKN-D50
AXLE, Rear WHEEL
$38.04¢19 021
1
#004
42311-MER-D00
COLLAR, L. RR. WHEEL SIDE
$22.11¢11 057
1
#005
42312-MER-D00
COLLAR, Rear BRAKE SIDE
$12.91¢6 457
1
#006
42515-MKN-D50
RING, RR. PULSER
$56.67¢28 336
1
#007
42615-MJE-D00
FLANGE SUB-Assembly., Rear DRIVEN
$157.02¢78 511
1
#008
42620-MKN-D50
COLLAR, Rear AXLE DISTANCE
$24.24¢12 121
1
#009
42625-MER-D00
COLLAR B, RR. WHEEL DISTANCE
$22.06¢11 029
1
#010
42650-MKN-D30ZA
WHEEL SUB-ASSY., RR. (TYPE1) (WL)
$530.54¢265 270
1
#011
42711-MKN-D51
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$154.24¢77 119
1
#011
42711-MKN-D52
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$154.24¢77 119
1
#012
42755-MKA-D81
VALVE ASSY., CLAMP IN
$17.71¢8 855
1
#013
42758-MKA-D81
O-RING
$1.81¢903
1
#014
43251-K87-A00
DISK, Rear BRAKE
$94.89¢47 443
1
#015
44721-MGH-H21
WEIGHT, BALANCE (10G)
$3.60¢1 800
1
#015
44722-MGH-H21
WEIGHT, BALANCE (15G)
$4.30¢2 151
1
#015
44723-MGH-H21
WEIGHT, BALANCE (20G)
$4.81¢2 403
1
#016
90102-MAS-000
BOLT, STUD (12X25)
$4.47¢2 237
1
#017
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#018
90306-KGH-901
NUT, U (12MM) (FUJI SEIMITSU)
$3.04¢1 518
1
#019
90306-MJE-D01
NUT, U (18MM)
$9.79¢4 893
1
#020
90401-KZ4-890
WASHER (18X32X2)
$4.99¢2 496
1
#021
91051-MAS-003
BEARING, RADIAL BALL (6322)
$42.76¢21 379
1
#022
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#023
91252-MAS-003
DUST SEAL (30X56X7.5)
$12.95¢6 474
1
#024
91253-MAE-003
DUST SEAL (30X47X7.5)
$17.03¢8 516
1
#025
91351-MGS-D30
O-RING (55X2)
$3.36¢1 679
1
