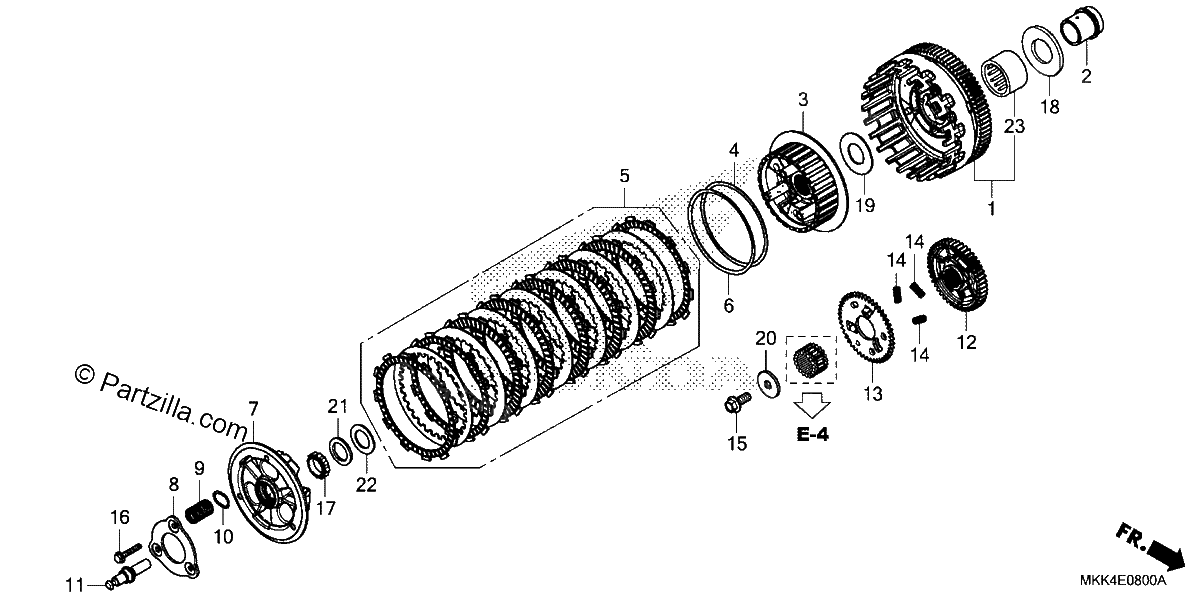

CLUTCH 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLUTCH OUTER
$490.92¢245 462
#002
GUIDE, CLUTCH (OUTER)
$22.76¢11 379
#003
CENTER, CLUTCH
$140.13¢70 064
#004
SEAT, JUDDER SPRING
$5.32¢2 662
#005
DISK SET, CLUTCH
$173.60¢86 802
#006
SPRING, JUDDER
$43.42¢21 712
#007
PLATE, CLUTCH PRESSURE
$79.03¢39 514
#008
PLATE, SETTING
$28.60¢14 300
#009
SPRING, CLUTCH
$6.22¢3 111
#010
SEAT, CLUTCH SPRING
$12.63¢6 313
#011
PIN, CLUTCH LIFTER
$39.07¢19 533
#012
GEAR, PRIMARY DRIVE (45T)
$129.09¢64 544
#013
SUB-GEAR, PRIMARY (45T)
$70.62¢35 311
#014
SPRING, PRIMARY DAMPER
$2.74¢1 368
#015
BOLT, SPECIAL (10X25)
$5.05¢2 524
#016
BOLT, FLANGE (6X35)
$2.43¢1 213
#017
NUT, LOCK (25MM)
$20.06¢10 028
#018
WASHER (35X50X3.2)
$6.37¢3 186
#019
WASHER, THRUST (28.2X56X2)
$18.79¢9 395
#020
WASHER (10.5X36X4)
$2.78¢1 392
#021
WASHER, SPRING (25MM) (CHUO HATSUJO)
$8.58¢4 289
#022
WASHER, THRUST (25X40X2)
$7.11¢3 553
#023
BEARING, NEEDLE (35X42X23)
$106.50¢53 251
