CLUTCH MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

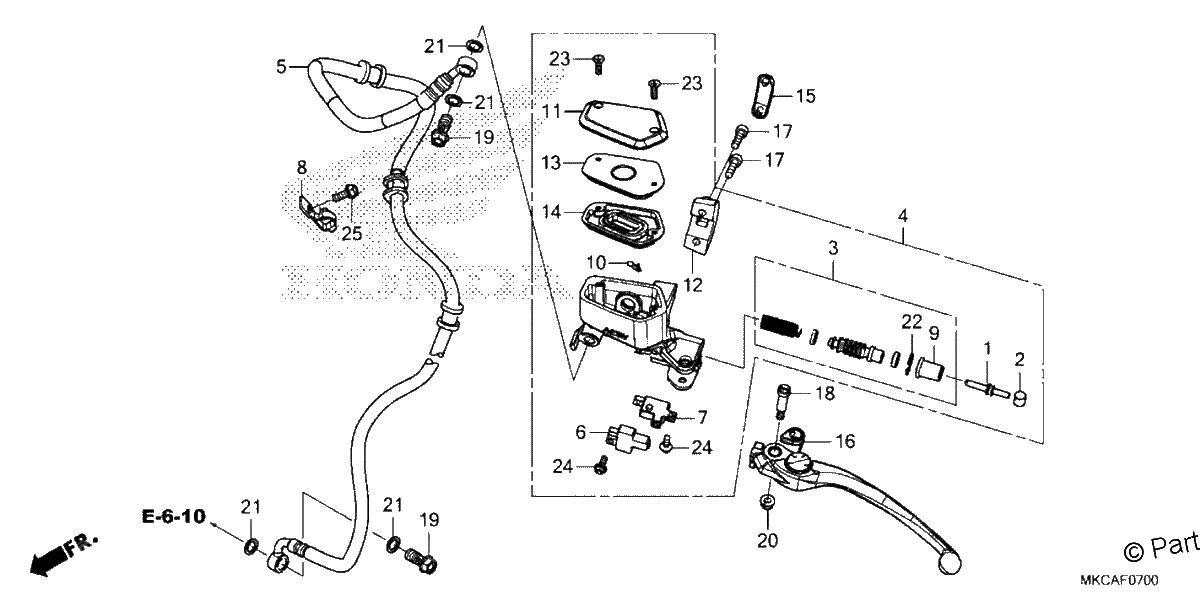

Diagrama de CLUTCH MASTER CYLINDER

Repuestos

#001
22884-MAT-E01
ROD, PUSH
$20.85¢10 425
1
#002
22885-MB0-006
BUSH
$13.94¢6 969
1
#003
22886-MAT-E01
PISTON SET, MASTER CYLINDER
$60.93¢30 463
1
#004
22890-MKC-A21
MASTER CYLINDER SUB-ASSY., CLUTCH
$275.49¢137 747
1
#005
22900-MKC-A11
HOSE, CLUTCH
$91.02¢45 511
1
#006
35330-MB0-003
SWITCH ASSY., CLUTCH
$19.45¢9 723
1
#007
35335-MG9-951
SWITCH ASSY., CLUTCH CRUISE (TOYO)
$25.20¢12 598
1
#008
45158-MFL-D00
CLAMP A, FR. BRAKE HOSE
$4.31¢2 156
1
#009
45504-MAT-E01
BOOT
$11.37¢5 687
1
#010
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#011
45513-MGE-006
CAP, MASTER CYLINDER
$41.48¢20 740
1
#012
45517-MAM-A62
HOLDER, MASTER CYLINDER
$15.26¢7 630
1
#013
45518-MGE-006
PLATE, DIAPHRAGM
$9.54¢4 773
1
#014
45520-MGE-006
DIAPHRAGM
$17.95¢8 976
1
#015
45553-MAM-A60
CAP, BRAKE MASTER CYLINDER HOLDER
$3.47¢1 737
1
#016
53180-MCA-006
LEVER Assembly., L HANDLE
$76.64¢38 318
1
#016
53180-MCA-305
LEVER ASSY., L. HANDLE (COO)
$76.64¢38 318
1
#017
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#018
90114-MG9-951
BOLT, HANDLE LEVER
$8.80¢4 399
1
#019
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#020
90202-ZV0-000
NUT, CAP (6MM)
$3.29¢1 644
1
#021
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#022
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#023
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#023
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#024
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#024
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#025
95701-06016-07
BOLT, FLANGE (6X16)
$1.92¢960
1
