SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

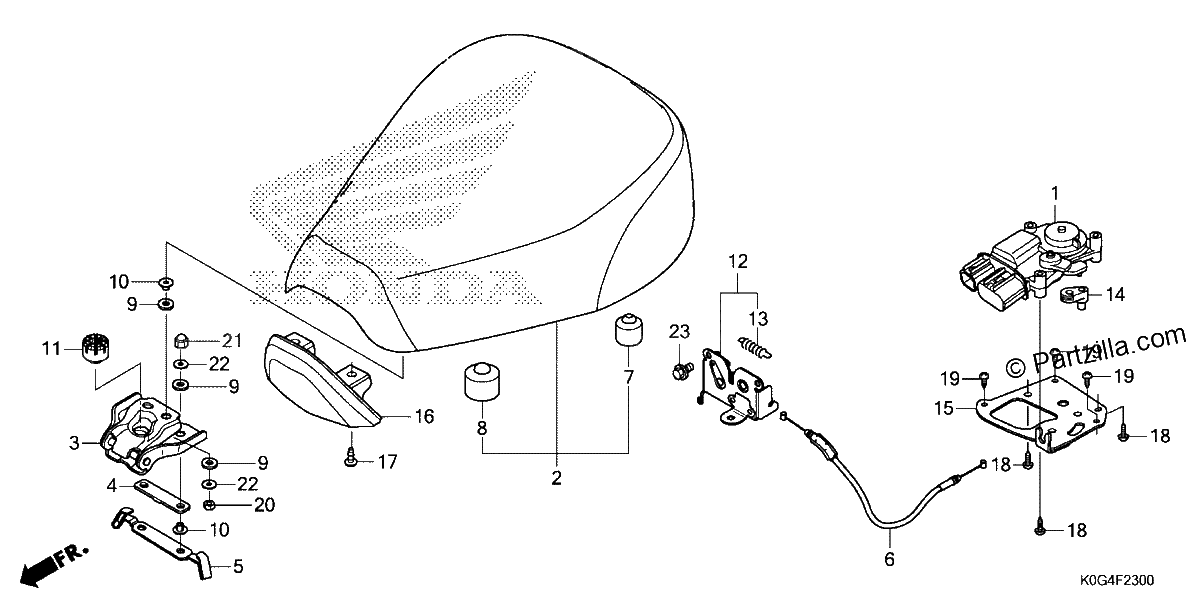

Diagrama de SEAT

Repuestos

#001
36520-KSV-J03
ACTUATOR ASSY.
$109.93¢54 964
1
#002
77100-K0G-901ZB
SEAT, SINGLE (TYPE1)
$184.45¢92 224
1
#003
77110-K0G-900
HINGE, SEAT
$15.34¢7 671
1
#004
77116-K0G-900
RUBBER, CUSHION
$3.33¢1 667
1
#005
77117-K0G-900
HOOK, HELMET
$8.26¢4 129
1
#006
77156-K0G-901
CABLE, SEAT LOCK
$6.61¢3 306
1
#007
77206-KPK-900
RUBBER, SEAT CUSHION
$1.66¢828
1
#008
77206-KPP-T00
RUBBER, SEAT CUSHION
$3.74¢1 869
1
#009
77207-GN5-910
RUBBER B, SEAT MOUNTING
$2.94¢1 472
1
#010
77208-KPW-900
COLLAR, SEAT MOUNTING
$1.53¢765
1
#011
77215-KW7-900
RUBBER C, SEAT SETTING
$5.90¢2 950
1
#012
77230-K0G-900
CATCH, SEAT
$16.07¢8 033
1
#013
77234-GGZ-J00
SPRING, SEAT LOCK
$0.36¢178
1
#014
77242-KSV-J00
JOINT, CABLE
$6.92¢3 461
1
#015
77250-K0G-900
STAY, ACTUATOR
$9.64¢4 819
1
#016
83405-K0G-900
COVER, SEAT HINGE
$22.06¢11 029
1
#017
93903-24310
SCREW, TAPPING (4X12)
$1.07¢535
1
#018
93903-34510
SCREW, TAPPING (4X20)
$0.71¢357
1
#019
93913-14220
SCREW, TAPPING (4X12)
$1.07¢535
1
#020
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#020
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#021
94021-06000-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#021
94021-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#021
94021-06020-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#021
94022-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#022
94103-06000
WASHER, PLAIN (6MM)
$1.17¢586
1
#023
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
