AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

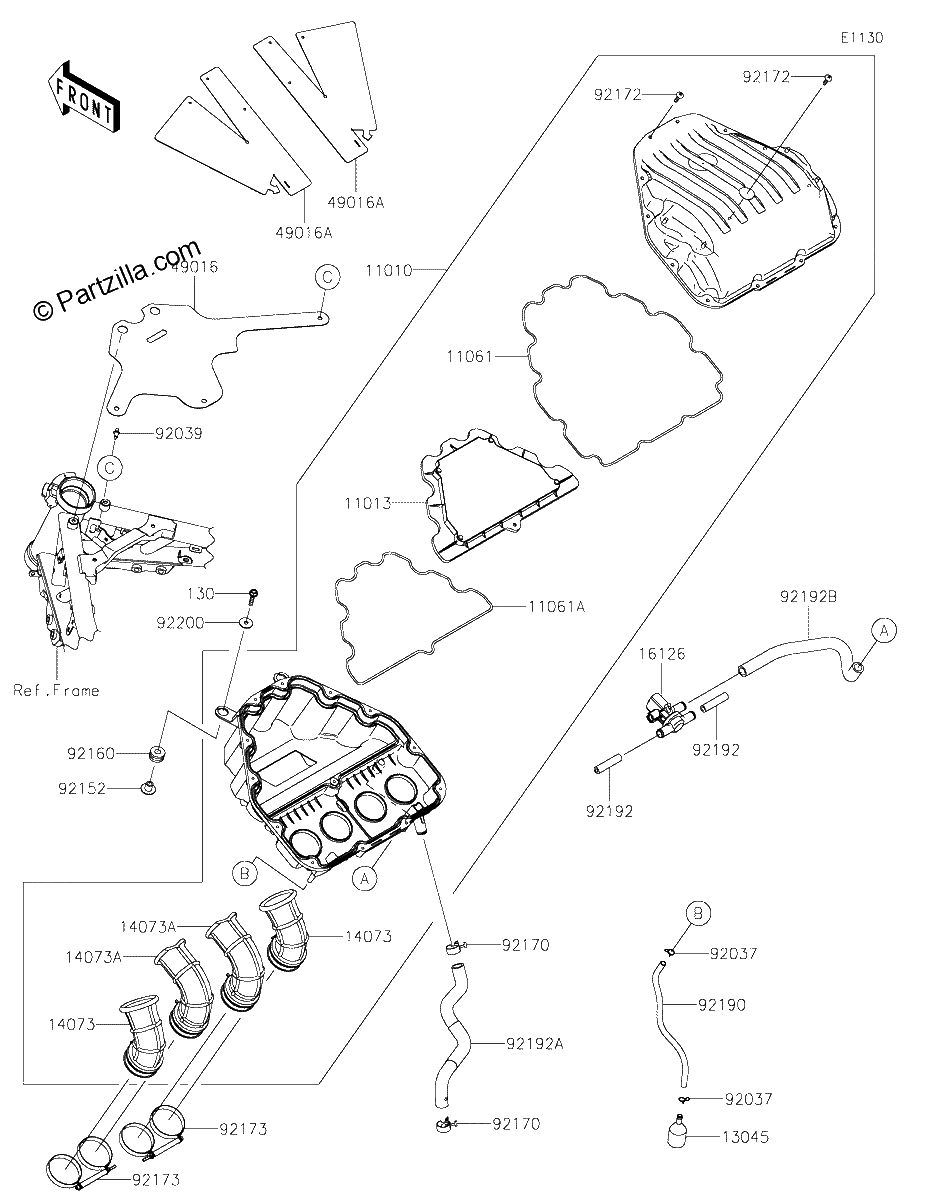

Diagrama de AIR CLEANER

Repuestos

#130
130BA0625
BOLT FLANGED,6X25
$1.26¢631
1
#11010
11010-0952
FILTER-ASSY-AIR
$425.21¢212 606
1
#11013
11013-0768
ELEMENT-AIR FILTER
$69.19¢34 594
1
#11061
11061-1263
GASKET,CASE
$11.04¢5 519
1
#11061A
11061-1264
GASKET,ELEMENT
$6.99¢3 494
1
#13045
13045-1057
RECEIVER-OIL
$9.74¢4 869
1
#14073
14073-0941
DUCT,#1,#4
$46.75¢23 375
1
#14073A
14073-0942
DUCT,#2,#3
$49.56¢24 781
1
#16126
16126-0745
VALVE,AIR SWITCHING
$242.40¢121 200
1
#49016
49016-0652
COVER-SEAL,WATERPROOF
$24.22¢12 112
1
#49016A
49016-0653
COVER-SEAL
$15.46¢7 731
1
#92037
92037-1712
CLAMP
$4.96¢2 481
1
#92039
92039-0023
RIVET
$2.73¢1 363
1
#92152
92152-0547
COLLAR,6.5X10.5X13.1
$5.79¢2 894
1
#92160
92160-1162
DAMPER
$4.96¢2 481
1
#92170
92170-1060
CLAMP
$9.29¢4 644
1
#92172
92172-0483
SCREW,TAPPING,5X20
No Disponible
1
#92173
92173-2298
CLAMP
$25.31¢12 656
1
#92190
92190-1253
TUBE,6X9X300
$5.67¢2 838
1
#92192B
92192-1785
TUBE,ASWV-A/C
$19.09¢9 544
1
#92192A
92192-1692
TUBE,BLOWBY
$29.29¢14 644
1
#92192
92192-0843
TUBE,HEAD ASV
$2.64¢1 319
1
#92200
92200-1087
WASHER,6.5X22X1.6
$3.93¢1 963
1
