CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

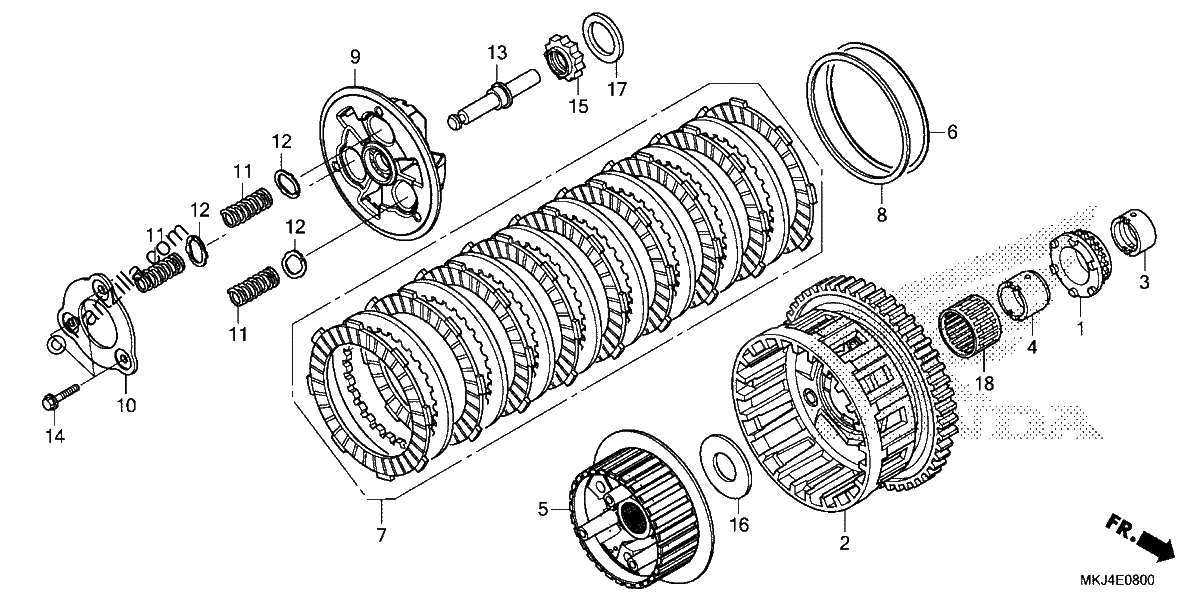

Diagrama de CLUTCH

Repuestos

#001
15131-MEL-003
SPROCKET, OIL PUMP DRIVE (26T)
$79.23¢39 613
1
#002
22100-MKJ-D00
CLUTCH OUTER A (77T) (BLUE) (NOT AVAILABLE)
$532.21¢266 106
1
#002
22200-MKJ-D00
CLUTCH OUTER B (77T) (YELLOW) (NOT AVAILABLE)
$532.21¢266 106
1
#003
22116-MEL-000
COLLAR, OIL PUMP SPROCKET
$21.27¢10 638
1
#004
22117-MEL-D20
GUIDE A, CLUTCH (OUTER) (HOLE NOTHING)
$24.65¢12 325
1
#004
22118-MEL-D20
GUIDE B, CLUTCH (OUTER) (2MM HOLE)
$22.99¢11 494
1
#005
22121-MKJ-D01
CENTER, CLUTCH (NOT AVAILABLE)
$147.64¢73 819
1
#006
22125-HP6-A00
SEAT, JUDDER SPRING
$5.79¢2 894
1
#007
22210-MKF-D40
DISK SET, CLUTCH
$219.13¢109 563
1
#008
22325-MJP-G51
SPRING, JUDDER
$47.20¢23 600
1
#009
22350-MKJ-D01
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
$93.65¢46 825
1
#010
22361-MJP-G51
PLATE, SETTING
$31.09¢15 544
1
#011
22401-MKJ-D00
SPRING, CLUTCH (NOT AVAILABLE)
$7.89¢3 944
1
#012
22425-MKF-D41
SEAT, CLUTCH SPRING
$14.79¢7 394
1
#013
22847-MGP-D60
PIN, CLUTCH LIFTER
$45.29¢22 644
1
#014
90050-MKF-D41
BOLT, FLANGE (6X45)
$3.71¢1 856
1
#015
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#016
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#017
90407-MFL-000
WASHER (25.1X37X3.2)
$5.02¢2 512
1
#018
91101-MFL-881
BEARING A, NEEDLE (35X41X27.8) (RED)
$11.68¢5 838
1
#018
91102-MFL-881
BEARING B, NEEDLE (35X41X27.8) (WHITE)
$10.00¢5 000
1
#018
91103-MKJ-D01
BEARING C, NEEDLE (35X41X27.8)(YELLOW) (NOT AVAILABLE)
$20.92¢10 462
1
