CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

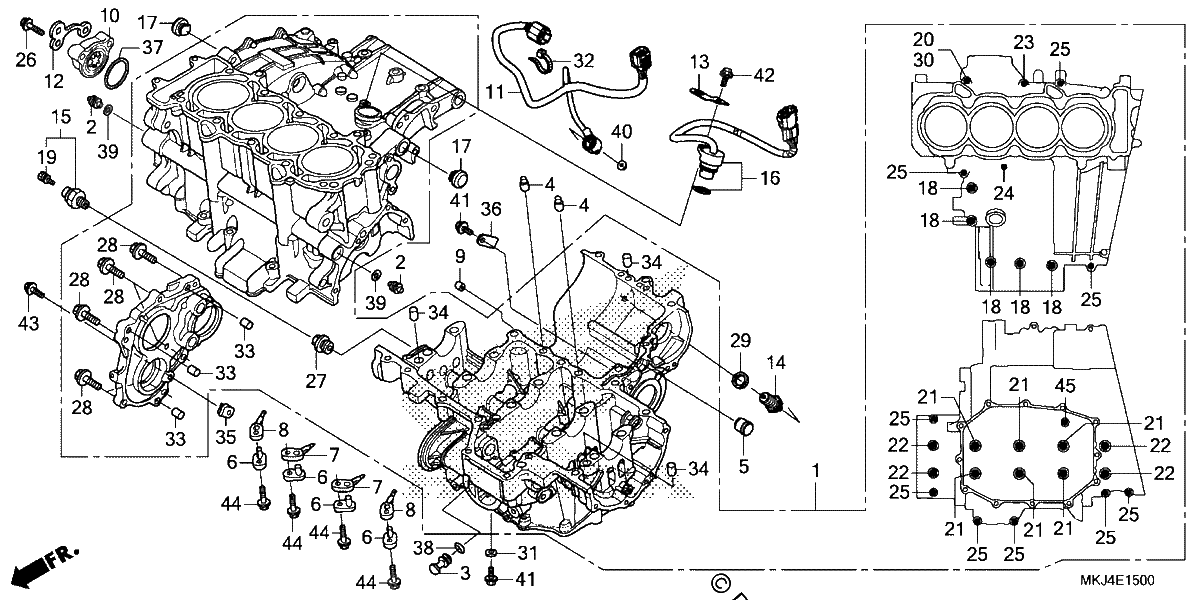

Diagrama de CRANKCASE

Repuestos

#001
11000-MKJ-D00
CRANKCASE SET (NOT AVAILABLE)
$3838.05¢1 919 025
1
#002
11103-MEL-000
PLUG, SEALING
$10.76¢5 381
1
#003
11104-MEL-000
PLUG, OIL COOLER
$8.88¢4 438
1
#004
11105-MEL-000
ORIFICE (1.6MM)
$9.90¢4 950
1
#005
11105-MKJ-D01
PLUG, CRANKCASE (NOT AVAILABLE)
$27.56¢13 781
1
#006
11145-MEL-000
BUSH, ORIFICE
$26.36¢13 181
1
#007
11146-MEL-000
ORIFICE A (#100)
$29.51¢14 756
1
#008
11147-MEL-000
ORIFICE B (#100)
$29.51¢14 756
1
#009
11206-MEL-000
ORIFICE (1.4MM)
$2.91¢1 456
1
#010
11360-MFN-D00
FINDER, OIL LEVEL
$39.40¢19 700
1
#011
32101-MKJ-D00
SUB-HARNESS, ENGINE (NOT AVAILABLE)
$39.36¢19 681
1
#012
32114-MFN-D00
GUIDE, OIL PRESSURE SWITCH WIRE
$4.71¢2 356
1
#013
32211-MKJ-D00
STAY, HARNESS (ENGINE) (NOT AVAILABLE)
$5.00¢2 500
1
#014
35600-MKF-D41
SWITCH ASSY., NEUTRAL
$27.85¢13 925
1
#015
37240-P13-013
SWITCH ASSY., OIL PRESSURE (DENSO)
$52.05¢26 025
1
#016
37700-MKJ-D01
SENSOR ASSY., SPEED (NOT AVAILABLE)
$141.29¢70 644
1
#017
47117-196-000
RUBBER, STOPPER
$3.61¢1 806
1
#018
90001-MFA-D00
BOLT, FLANGE (8X55)
$1.86¢931
1
#019
90002-PA6-003
BOLT-WASHER (4X8) (DENSO)
$7.54¢3 769
1
#020
90004-MFA-D00
BOLT, SPECIAL (7X42.5)
$3.30¢1 650
1
#021
90015-MEL-003
BOLT, FLANGE (9X105)
$12.39¢6 194
1
#022
90016-MEL-003
BOLT, FLANGE (9X125)
$12.39¢6 194
1
#023
90017-MFA-D00
BOLT, FLANGE (7X60)
$3.40¢1 700
1
#024
90018-MFA-D00
BOLT, FLANGE (7X80)
$4.69¢2 344
1
#025
90019-MFA-D00
BOLT, FLANGE (7X40)
$2.60¢1 300
1
#026
90027-GHB-690
BOLT, FLANGE (6X28)
$2.99¢1 494
1
#027
90048-MFL-000
BOLT, SEALING (22MM)
$12.24¢6 119
1
#028
90133-MEL-000
BOLT, FLANGE (8X30)
$4.26¢2 131
1
#029
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#030
90447-KE1-000
WASHER, SEALING (7MM)
$3.43¢1 713
1
#031
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#032
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#033
90701-MEL-000
PIN, DOWEL (8X14)
$3.21¢1 606
1
#034
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#035
91011-MEL-000
PLATE A, BEARING SETTING
$7.19¢3 594
1
#036
91012-MEL-000
PLATE B, BEARING SETTING
$2.48¢1 238
1
#037
91301-MEE-003
O-RING (32X1.7)
$2.44¢1 219
1
#038
91302-ZE9-000
O-RING (11.8X2.4)
$3.15¢1 575
1
#038
91302-ZE9-003
O-RING (11.8X2.4)
$3.15¢1 575
1
#039
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#040
94050-04000
NUT, FLANGE (4MM)
$1.57¢788
1
#041
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#042
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#043
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
#044
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#045
95701-08040-00
BOLT, FLANGE (8X40)
$1.54¢769
1
