CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

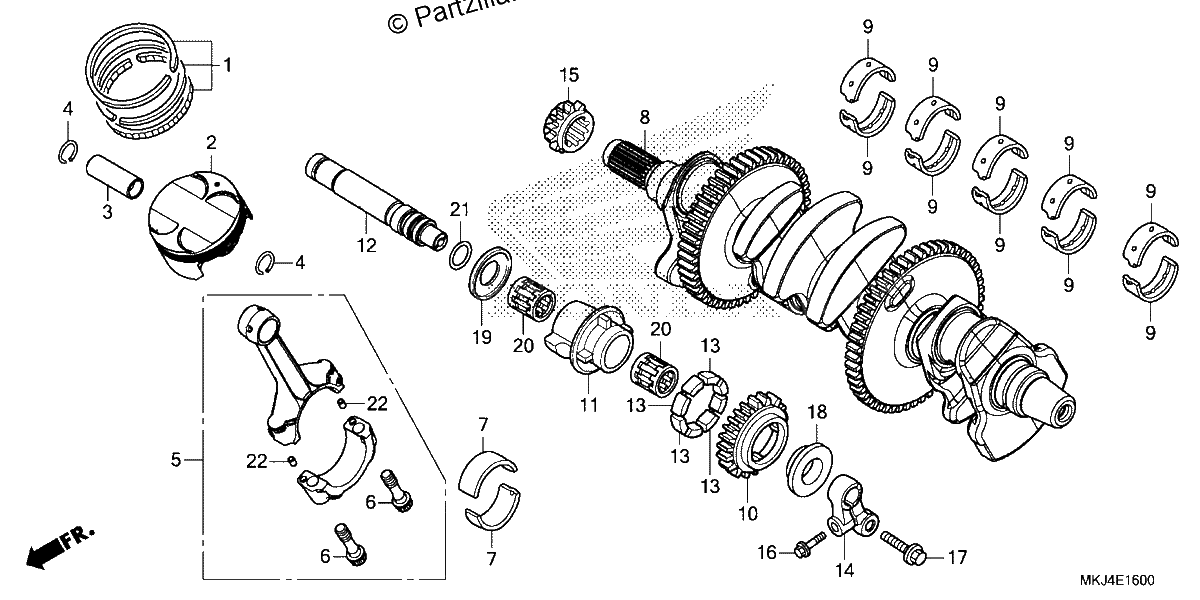

Diagrama de CRANKSHAFT PISTON

Repuestos

#001
13031-MEL-010
RING SET, PISTON (STD)
$53.75¢26 876
1
#001
13041-MEL-010
RING SET, PISTON (O.S. 0.25)
$60.10¢30 049
1
#002
13101-MKJ-D00
PISTON (NOT AVAILABLE)
$316.64¢158 320
1
#002
13103-MKJ-D00
PISTON (O.S. 0.25) (NOT AVAILABLE)
$312.12¢156 061
1
#003
13111-MCJ-750
PIN, PISTON
$19.40¢9 700
1
#004
13112-MEL-000
CLIP, PISTON PIN (17MM)
$3.06¢1 529
1
#005
13210-MKJ-D00
ROD ASSY., CONNECTING (NOT AVAILABLE)
$258.05¢129 024
1
#006
13213-MEL-003
BOLT, CONNECTING ROD
$6.43¢3 214
1
#007
13214-MEL-003
BEARING A, CONNECTING ROD (BLUE)
$15.19¢7 596
1
#007
13215-MEL-003
BEARING B, CONNECTING ROD (BLACK)
$12.93¢6 463
1
#007
13216-MEL-003
BEARING C, CONNECTING ROD (BROWN)
$13.02¢6 509
1
#007
13217-MEL-003
BEARING D, CONNECTING ROD (GREEN)
$12.93¢6 463
1
#007
13218-MEL-003
BEARING E, CONNECTING ROD (YELLOW)
$12.93¢6 463
1
#008
13310-MKJ-D00
CRANKSHAFT (NOT AVAILABLE)
$1492.79¢746 396
1
#009
13318-MEL-003
BEARING F, CRANKSHAFT (RED)
$11.21¢5 606
1
#009
13317-MEL-003
BEARING E, CRANKSHAFT (PINK)
$11.21¢5 606
1
#009
13316-MEL-003
BEARING D, CRANKSHAFT (YELLOW)
$11.21¢5 606
1
#009
13315-MEL-003
BEARING C, CRANKSHAFT (GREEN)
$11.21¢5 606
1
#009
13314-MEL-003
BEARING B, CRANKSHAFT (BROWN)
$13.18¢6 590
1
#010
13421-MEL-D20
GEAR, BALANCER (26T)
$117.32¢58 662
1
#011
13430-MEL-000
WEIGHT, BALANCER
$143.07¢71 536
1
#012
13431-MEL-000
SHAFT, BALANCER
$116.32¢58 161
1
#013
13435-MAT-000
RUBBER, DAMPER
$3.36¢1 679
1
#014
13436-MM5-000
HOLDER, BALANCER SHAFT
$65.68¢32 838
1
#015
14312-MEL-000
SPROCKET, TIMING (17T)
$40.64¢20 321
1
#016
90002-MCZ-000
BOLT, FLANGE (6X18)
$1.12¢558
1
#017
90037-GHB-680
BOLT, FLANGE (8X25) (NOT AVAILABLE)
$2.71¢1 357
1
#018
90457-MAT-000
WASHER A, BALANCER SIDE
$6.73¢3 364
1
#019
90458-MAT-000
WASHER B, BALANCER SIDE
$6.24¢3 122
1
#020
91015-MEL-003
BEARING B, NEEDLE (18X27X23.8) (BLUE)
$24.79¢12 397
1
#020
91016-MEL-003
BEARING C, NEEDLE (18X27X23.8) (WHITE)
$24.79¢12 397
1
#020
91017-MEL-003
BEARING D, NEEDLE (18X27X23.8) (GREEN)
$23.71¢11 857
1
#021
91302-377-000
O-RING (15X2.5)
$5.92¢2 961
1
#022
94303-04065
PIN C, DOWEL (4X6.5)
$2.53¢1 265
1
