RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

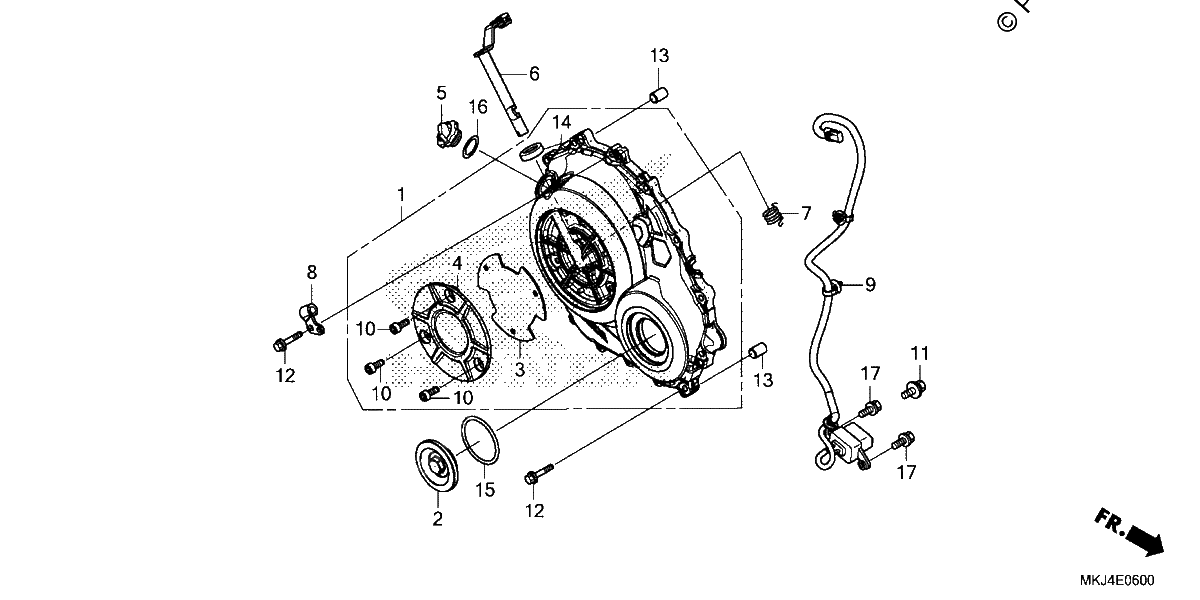

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-MKJ-D00
COVER, R. (NOT AVAILABLE)
$371.36¢185 679
1
#002
11332-MKJ-D00
CAP (45MM) (NOT AVAILABLE)
$19.57¢9 786
1
#003
11334-MKJ-D00
RUBBER, R. COVER (NOT AVAILABLE)
$14.44¢7 222
1
#004
11335-MKJ-D00
COVER, CLUTCH (NOT AVAILABLE)
$92.56¢46 282
1
#005
15611-MKJ-D00
CAP, OIL FILLER (NOT AVAILABLE)
$11.50¢5 750
1
#006
22810-MKJ-D00
LEVER, CLUTCH (NOT AVAILABLE)
$69.47¢34 736
1
#007
22815-MFL-000
SPRING, CLUTCH LEVER
$3.36¢1 679
1
#008
22821-MKJ-D00
RECEIVER, CLUTCH CABLE (NOT AVAILABLE)
$6.35¢3 174
1
#009
30300-MKJ-D01
GENERATOR ASSY., PULSE (NOT AVAILABLE)
$81.57¢40 785
1
#010
90001-MKJ-D00
BOLT, FLANGE SOCKET (6X16) (NOT AVAILABLE)
$3.21¢1 604
1
#011
90021-MM5-000
BOLT-WASHER (6X12)
$5.70¢2 852
1
#012
90027-GHB-690
BOLT, FLANGE (6X28)
$2.75¢1 374
1
#013
90701-MV9-670
PIN, DOWEL (10X16)
$4.80¢2 398
1
#014
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$5.63¢2 818
1
#015
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.38¢2 191
1
#016
91307-KF0-003
O-RING (18X3) (ARAI)
$3.36¢1 679
1
#017
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
