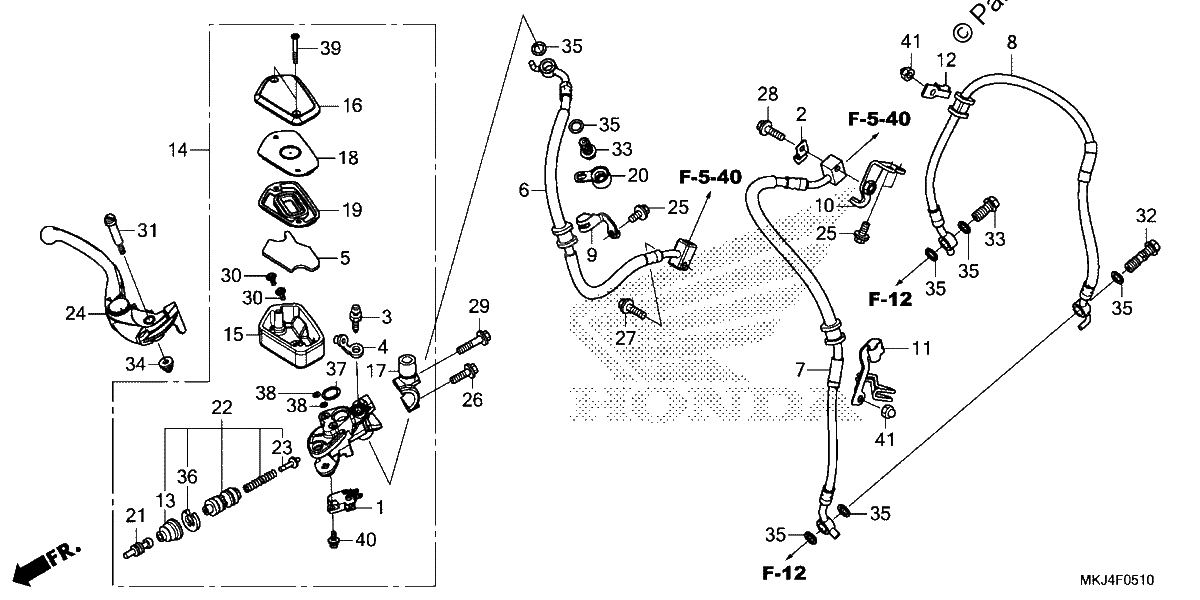

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
CLAMP B, SENSOR WIRE
$2.68¢1 340
#003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
#004
CAP, BLEEDER
$5.63¢2 818
#005
FLOAT
$3.98¢1 989
#006
HOSE A, FR. BRAKE
$67.55¢33 776
#007
HOSE D, FR. BRAKE
$67.50¢33 753
#008
HOSE E, FR. BRAKE
$53.84¢26 922
#009
CLAMP A, FR. BRAKE HOSE
$6.88¢3 439
#010
STAY B, FR. BRAKE HOSE
$11.14¢5 572
#011
CLAMP, L. FR. BRAKE HOSE
$9.67¢4 836
#012
CLAMP A, FR. BRAKE HOSE
$4.31¢2 156
#013
BOOT
$14.06¢7 032
#014
MASTER CYLINDER SUB-ASSY., FR.
$373.04¢186 519
#015
TANK, OIL
$22.11¢11 057
#016
CAP
$38.71¢19 354
#017
HOLDER, MASTER CYLINDER
$13.25¢6 624
#018
PLATE, DIAPHRAGM
$9.54¢4 773
#019
DIAPHRAGM
$17.95¢8 976
#020
BOOT, MASTER CYLINDER
$5.45¢2 726
#021
ROD, PUSH
$15.69¢7 843
#022
MASTER CYLINDER SET
$61.86¢30 929
#023
GUIDE, SPRING
$5.26¢2 628
#024
LEVER ASSY., R. HANDLE
$54.39¢27 197
#025
BOLT, FLANGE (6X12)
$2.64¢1 322
#026
BOLT, FLANGE (6X22)
$2.59¢1 294
#027
BOLT, FLANGE (6X25)
$2.68¢1 340
#028
BOLT, FLANGE (6X28)
$2.64¢1 322
#029
BOLT, FLANGE (6X32)
$2.94¢1 472
#030
SCREW, TRIPLE (4X11)
$3.68¢1 840
#031
BOLT, HANDLE LEVER
$6.49¢3 243
#032
BOLT, OIL (10X34)
$8.61¢4 307
#033
BOLT, OIL (10X22)
$8.18¢4 088
#034
NUT, CAP (6MM)
$3.29¢1 644
#035
WASHER, OIL BOLT
$4.46¢2 231
#036
CIRCLIP
$2.68¢1 340
#037
O-RING (14.8X2.4)
$3.04¢1 518
#038
O-RING
$3.51¢1 754
#039
SCREW, FLAT (4X35)
$0.56¢282
#040
SCREW-WASHER (4X12)
$1.59¢793
#040
SCREW-WASHER (4X12)
$1.59¢793
#041
NUT, CAP (6MM)
$1.83¢914
