SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

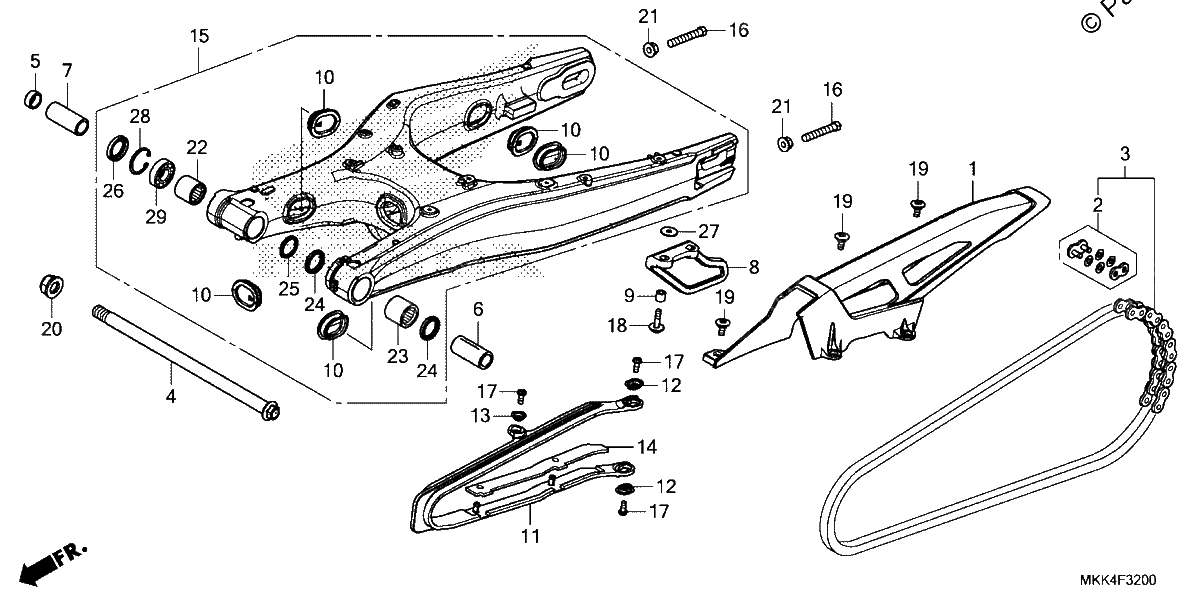

Diagrama de SWINGARM

Repuestos

#001
40510-MJP-G50
CASE, DRIVE CHAIN
$128.55¢64 275
1
#002
40535-MJM-D01
MASTER LINK SET (DAIDO)
$17.13¢8 563
1
#003
40540-MJP-G51
CHAIN, DRIVE (DID525HV3-130ZB)(DAIDO) (STANDARD LINK 124L)
$253.92¢126 962
1
#004
52101-MJP-G50
BOLT, SWINGARM PIVOT
$68.27¢34 137
1
#005
52141-MJP-G50
COLLAR A, PIVOT
$7.34¢3 669
1
#006
52142-MJP-G50
COLLAR, L PIVOT DISTANCE
$21.70¢10 850
1
#007
52143-MJP-G50
COLLAR, R. PIVOT DISTANCE
$21.09¢10 544
1
#008
52156-MJP-G50
GUARD, CHAIN
$25.90¢12 950
1
#009
52157-MJP-G50
COLLAR, CHAIN GUARD
$4.39¢2 194
1
#010
52161-KZZ-900
CAP, Rear SWINGARM
$3.43¢1 713
1
#011
52170-MKK-D00
SLIDER, CHAIN
$73.95¢36 975
1
#012
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#013
52171-MAN-620
WASHER, CHAIN SLIDER
$4.14¢2 069
1
#014
52171-MKK-D00
RUBBER, CHAIN SLIDER
$13.84¢6 919
1
#015
52200-MJP-G50
SWINGARM SUB-ASSY., RR.
$1717.79¢858 894
1
#016
90106-MCF-D00
BOLT, HEX. (8X50)
$3.11¢1 556
1
#017
90107-MJP-G50
SCREW, PAN (5X12)
$2.41¢1 206
1
#018
90108-KSV-J00
BOLT-WASHER (6X25)
$2.69¢1 344
1
#019
90114-MGE-D00
BOLT, SPECIAL (6X15)
$2.64¢1 319
1
#020
90305-MBZ-C50
NUT, SPECIAL U (16MM)
$10.84¢5 419
1
#020
90305-MCB-610
NUT, U (16MM)
$10.84¢5 419
1
#021
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#022
91063-MZ1-003
BEARING, NEEDLE (24X31X28)
$19.81¢9 906
1
#023
91071-MT7-003
BEARING, NEEDLE (NTN)
$31.19¢15 594
1
#024
91202-MAL-601
DUST SEAL (25X33X4)
$8.44¢4 219
1
#025
91203-GC8-003
OIL SEAL (24X31X3.5)
$12.21¢6 106
1
#026
91214-MAL-601
DUST SEAL (23X35X5)
$10.58¢5 288
1
#027
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#028
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#029
96100-60030-10
BEARING, RADIAL BALL (6003)
$16.44¢8 219
1
