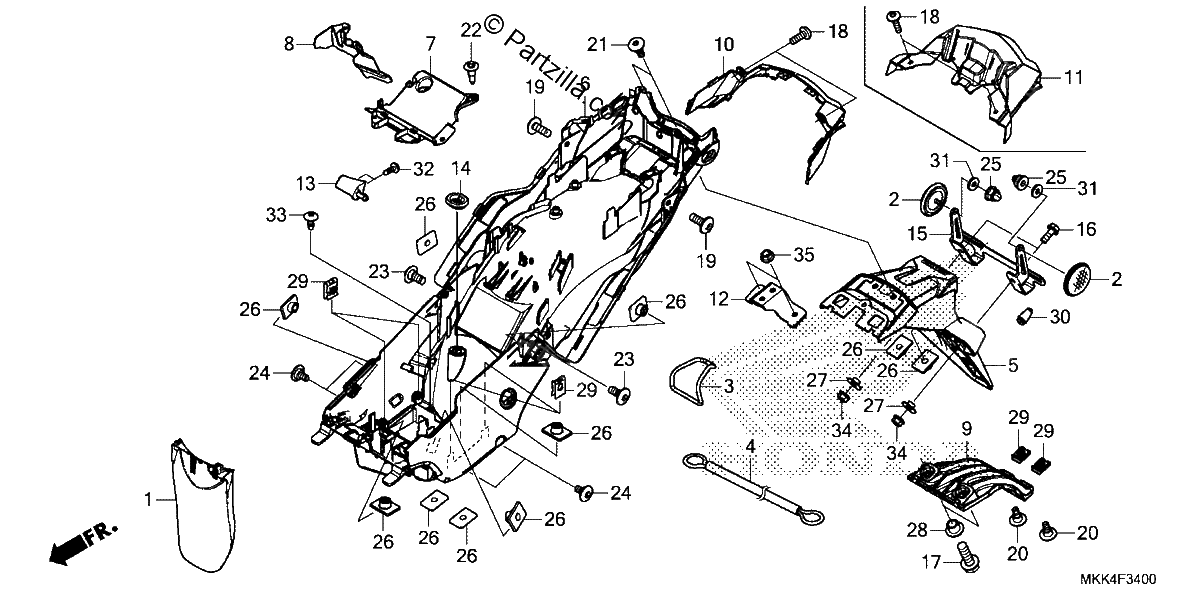

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPLASH GUARD
$44.84¢22 419
#002
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
#003
BAND B, TOOL
$11.74¢5 869
#004
WIRE, HELMET SET
$10.28¢5 138
#005
FENDER A SET, RR. (TYPE1) (WL)
$119.04¢59 519
#006
FENDER B, RR.
$210.10¢105 050
#007
TRAY, ETC
$8.88¢4 438
#008
COVER, SEAT LOCK
$5.29¢2 644
#009
COVER, RR. FENDER
$43.04¢21 519
#011
COWL, RR. CENTER
$21.38¢10 688
#012
BRACKET, FENDER COVER
$36.85¢18 425
#013
BOSS, GROMMET
$5.78¢2 888
#014
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
#015
BRACKET, NUMBER PLATE
$19.51¢9 756
#016
BOLT, FLANGE (6X16)
$4.26¢2 131
#017
BOLT, FLANGE (8X25)
$2.99¢1 494
#018
SCREW, PAN (5X20)
$2.99¢1 494
#019
SCREW, SPECIAL (6MM)
$2.88¢1 438
#020
SCREW, SPECIAL (5X14)
$2.63¢1 313
#021
BOLT, SPECIAL (6X8)
$1.50¢750
#022
CLIP, BUMPER SEAL
$5.72¢2 863
#023
SCREW, PAN (6X14)
$2.64¢1 319
#024
SCREW, SPECIAL (5X11)
$3.20¢1 600
#025
NUT, FLANGE CAP (6MM)
$2.99¢1 494
#026
NUT, SPECIAL (6X7)
$4.65¢2 325
#027
COLLAR, MUFFLER COVER
$2.64¢1 319
#028
COLLAR (8MM)
$5.79¢2 894
#029
NUT, CLIP (5MM)
$4.94¢2 469
#030
PLUG, CONE
$4.20¢2 100
#031
WASHER, BLACK (20MM)
$6.99¢3 494
#032
SCREW, TAPPING (4X12)
$1.16¢581
#033
SCREW, TAPPING (5X12)
$1.66¢831
#034
NUT, FLANGE (6MM)
$1.86¢931
#035
NUT, FLANGE (8MM)
$1.15¢575
