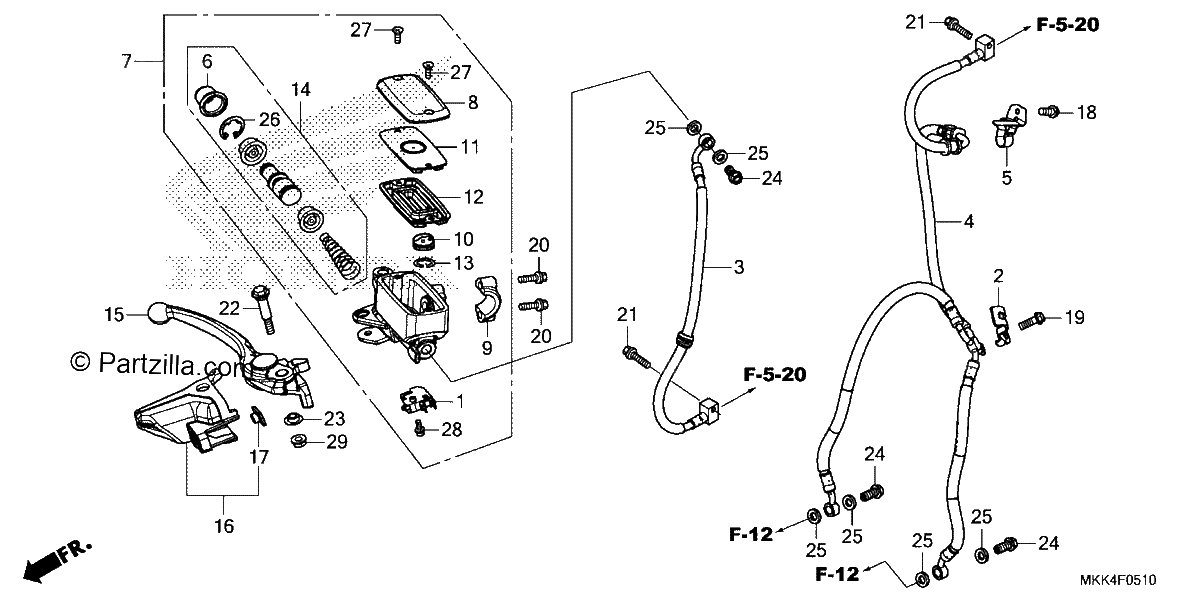

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, SENSOR WIRE
$4.96¢2 481
#003
HOSE A, FR. BRAKE
$70.96¢35 481
#004
HOSE D, FR. BRAKE
$166.05¢83 025
#005
CLAMP, FR. BRAKE HOSE
$13.05¢6 525
#006
BOOT
$14.24¢7 119
#007
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$325.20¢162 600
#008
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#009
HOLDER, MASTER CYLINDER
$15.74¢7 869
#010
SEPARATOR
$9.24¢4 619
#011
PLATE, DIAPHRAGM
$12.36¢6 181
#012
DIAPHRAGM
$17.68¢8 838
#013
RING
$3.65¢1 825
#014
MASTER CYLINDER SET
$55.46¢27 731
#015
LEVER ASSY., R. HANDLE
$59.06¢29 531
#016
HOLDER, Right KNUCKLE
$19.52¢9 763
#017
NUT, SPECIAL (6MM)
$3.65¢1 825
#018
BOLT, FLANGE (6X14)
$2.88¢1 438
#019
BOLT, FLANGE (6X18)
$2.91¢1 456
#020
BOLT, FLANGE (6X22)
$2.81¢1 406
#021
BOLT, FLANGE (6X25)
$2.91¢1 456
#022
BOLT, HANDLE LEVER
$8.89¢4 444
#023
COLLAR (6X4)
$4.15¢2 075
#024
BOLT, OIL (10X22)
$8.89¢4 444
#025
WASHER, OIL BOLT
$4.85¢2 425
#026
CIRCLIP
$3.10¢1 550
#027
SCREW, FLAT (4X12)
$1.16¢581
#027
SCREW, FLAT (4X12)
$1.16¢581
#028
SCREW-WASHER (4X12)
$1.72¢862
#028
SCREW-WASHER (4X12)
$1.72¢862
#029
NUT, FLANGE (6MM)
$0.80¢400
