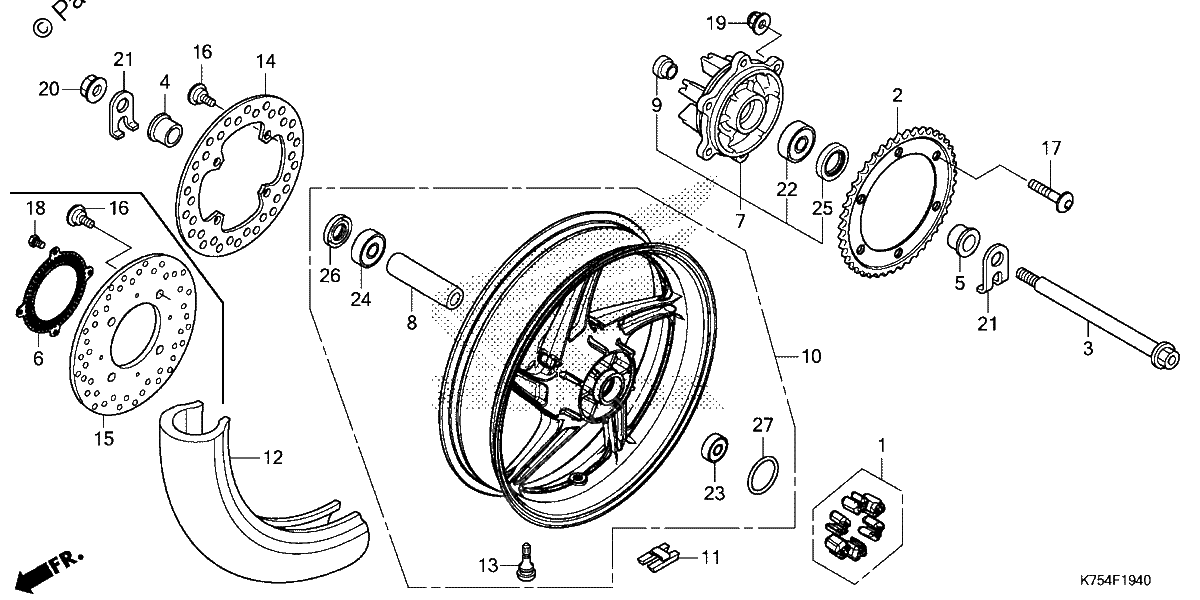

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$52.09¢26 044
#002
SPROCKET, FINAL DRIVEN (36T)
$52.76¢26 381
#003
AXLE, Rear WHEEL
$24.01¢12 006
#004
COLLAR, Right Rear WHEEL SIDE
$19.94¢9 969
#005
COLLAR, L. RR. WHEEL SIDE
$15.82¢7 913
#007
FLANGE SUB-ASSY., RR. DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)
$140.23¢70 113
#008
COLLAR, RR. WHEEL DISTANCE
$9.14¢4 569
#009
COLLAR B, RR. AXLE DISTANCE
$25.29¢12 644
#009
COLLAR B, Rear AXLE DISTANCE
$21.50¢10 750
#010
WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)
$521.76¢260 881
#011
WEIGHT, BALANCE (10G)
$10.91¢5 456
#011
WEIGHT, BALANCE (20G)
$22.41¢11 206
#011
WEIGHT, BALANCE (30G)
$22.09¢11 044
#012
TIRE, Rear. (140/70-17M/C 66S) (IRC)
$133.13¢66 563
#013
VALVE, RIM (TRITON)
$0.71¢356
#014
DISK, RR. BRAKE
$76.85¢38 425
#016
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#017
BOLT, SPROCKET FIXING
$1.74¢869
#019
NUT, U (10MM) (FUJI SEIMITSU)
$3.83¢1 913
#020
NUT, U FLANGE (16MM)
$8.36¢4 181
#021
WASHER, Rear SWINGARM
$3.86¢1 931
#022
BEARING, RADIAL BALL (6204) (UU) (FUJIKOSHI)
$17.13¢8 563
#023
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$10.90¢5 450
#024
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$25.54¢12 769
#025
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#025
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#026
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#026
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#027
O-RING (54X2)
$3.91¢1 956
#027
O-RING (54X2)
$3.91¢1 956
#027
O-RING (54X2) (ARAI)
$3.91¢1 956
