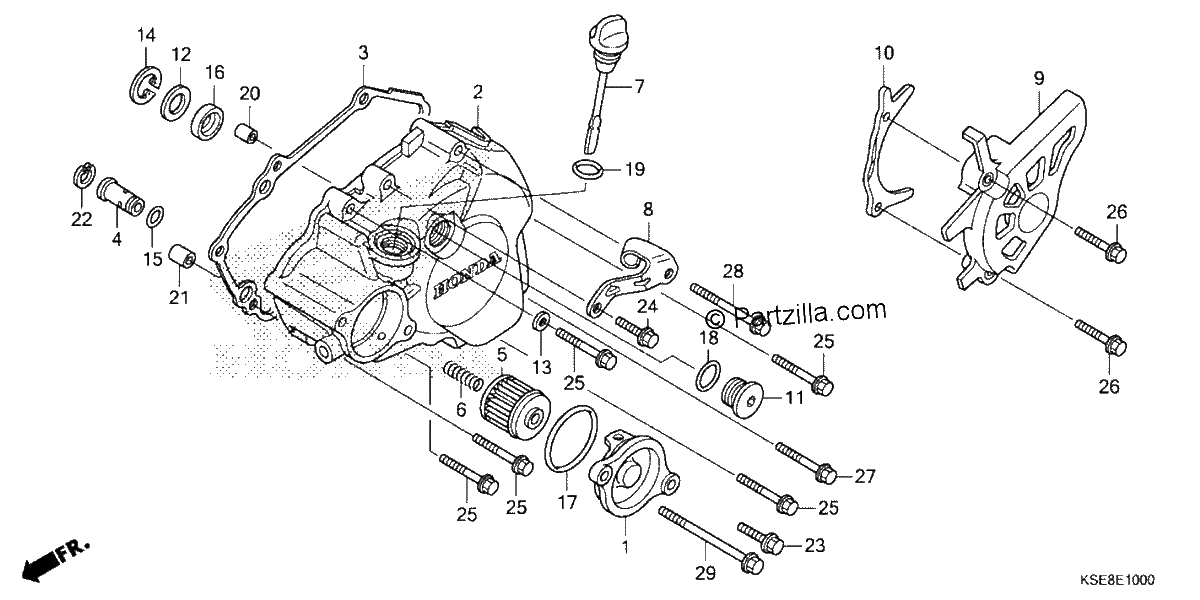

LEFT CRANKCASE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, OIL FILTER
$59.61¢29 806
#002
COVER, L. CRANKCASE
$133.19¢66 594
#003
GASKET, L. COVER
$15.00¢7 500
#004
VALVE ASSY., RELIEF
$32.46¢16 231
#005
FILTER, ENGINE OIL
$9.11¢4 556
#006
SPRING, OIL FILTER
$3.38¢1 688
#007
DIPSTICK, OIL
$14.40¢7 200
#008
RECEIVER, CLUTCH CABLE
$10.58¢5 288
#009
COVER, DRIVE SPROCKET
$36.19¢18 094
#010
GUIDE, DRIVE CHAIN
$17.88¢8 938
#011
CAP (14MM)
$14.88¢7 438
#011
CAP (14MM)
$14.88¢7 438
#012
WASHER (13X24X1.6)
$2.54¢1 269
#013
WASHER, SEALING (6.5MM)
$3.65¢1 825
#014
CIRCLIP, SPECIAL INNER (24MM)
$3.71¢1 856
#015
O-RING (8.5X1.7)
$3.49¢1 744
#016
OIL SEAL (10X21X5)
$4.45¢2 225
#017
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
#018
O-RING (13.8X2.5)
$4.15¢2 075
#019
O-RING (18X3)
$3.65¢1 825
#020
PIN, DOWEL (8X14)
$2.89¢1 444
#021
PIN, DOWEL (10X16)
$2.92¢1 463
#022
CIRCLIP, INNER (14MM)
$1.19¢594
#023
BOLT, FLANGE (6X16)
$1.35¢675
#024
BOLT, FLANGE (6X18)
$2.21¢1 106
#025
BOLT, FLANGE (6X28)
$2.79¢1 394
#026
BOLT, FLANGE (6X30)
$1.80¢900
#027
BOLT, FLANGE (6X35)
$1.80¢900
#028
BOLT, FLANGE (6X45)
$2.52¢1 263
#029
BOLT, FLANGE (6X75)
$2.88¢1 438
