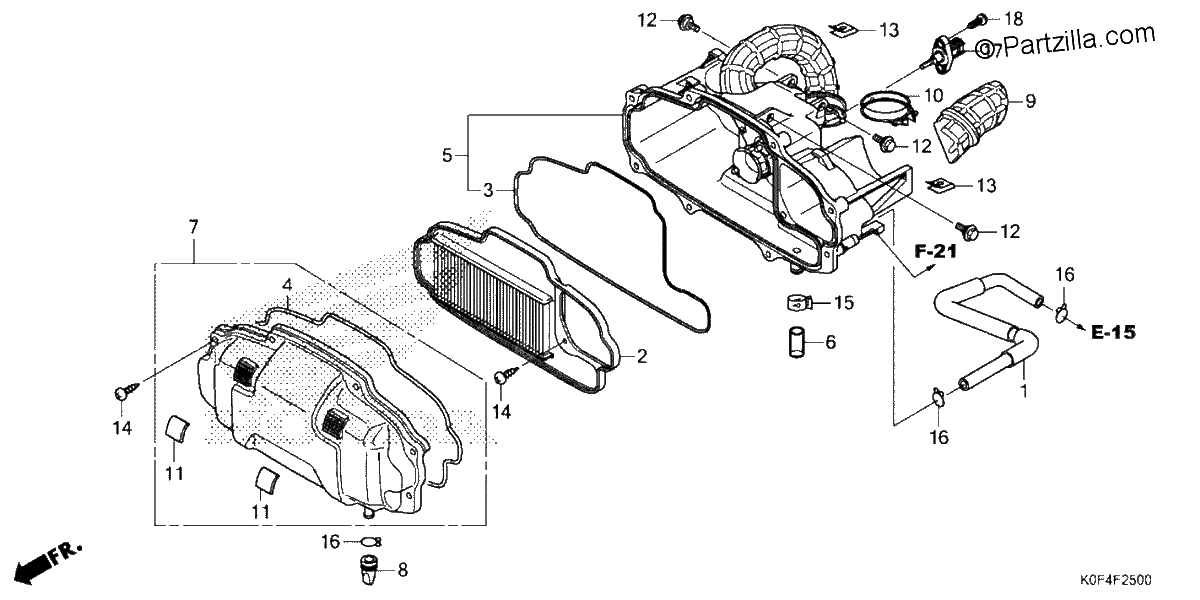

AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

Repuestos

#001

15761-K0F-T00

TUBE, BREATHER

$13.67¢6 837

#002

17210-K0F-T00

ELEMENT, AIR CLEANER

$8.29¢4 146

#003

17212-KWN-900

SEAL, AIR CLEANER

$1.85¢926

#004

17214-K0F-T00

SEAL, AIR CLEANER COVER

$2.81¢1 403

#005

17225-K0F-V00

CASE SUB-ASSY., AIR CLEANER

$13.29¢6 647

#006

17227-KPK-900

TUBE, VINYL (11X15X35)

$3.45¢1 725

#007

17235-K0F-T00

COVER SUB-Assembly., AIR CLEANER

$12.54¢6 268

#008

17236-KVB-900

PLUG, AIR CLEANER DRAIN

$1.30¢650

#009

17241-K0F-T00

DUCT, AIR CLEANER

$14.16¢7 078

#010

17254-K26-900

BAND, CONNECTING TUBE (44)

$4.83¢2 415

#011

50387-K0F-T00

CUSHION, BATTERY

$2.17¢1 087

#012

90116-KVB-900

BOLT, FLANGE (6MM)

$1.17¢586

#013

90302-KWW-A00

NUT, SPRING (4MM)

$1.15¢575

#014

93903-25580

SCREW, TAPPING (5X25)

$1.30¢650

#015

95002-41300-08

CLAMP, TUBE (D13)

$3.36¢1 679

#016

95002-80000

CLIP, TUBE (C12)

$0.55¢276

#017

37880-KWW-C01

SENSOR ASSY., AIR TEMPERATURE

$47.61¢23 805

#018

93913-255J0

SCREW, TAPPING (5X20)

$2.04¢1 018
