MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

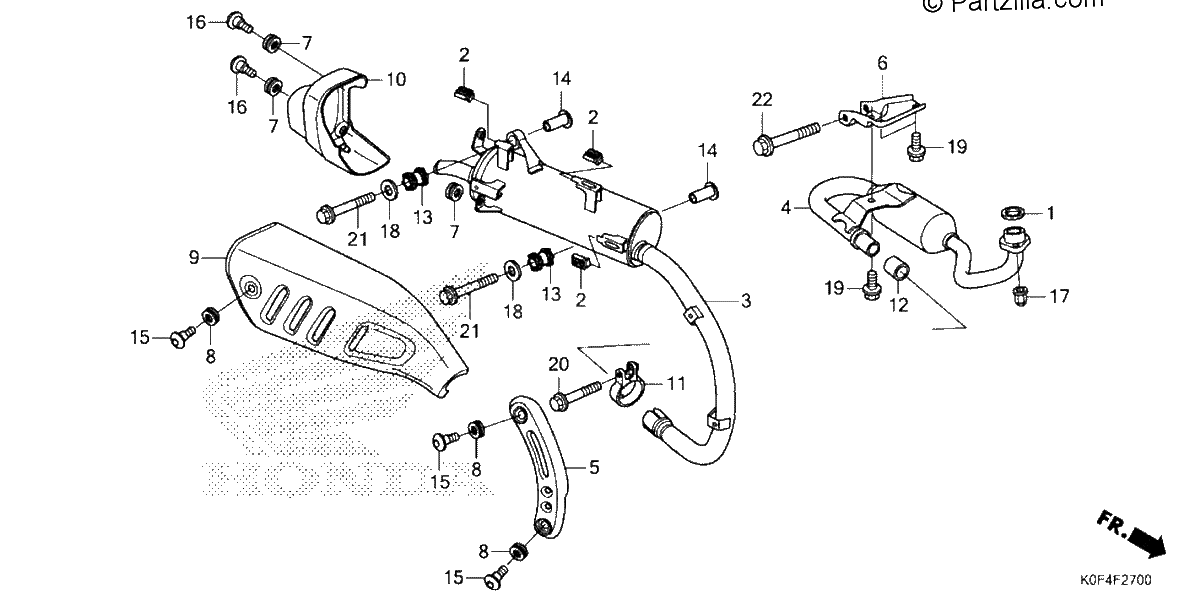

Diagrama de MUFFLER

Repuestos

#001
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#002
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#003
18310-K0F-T00
MUFFLER, EX.
$376.20¢188 100
1
#004
18320-K0F-T00
PIPE, EX.
$416.54¢208 271
1
#005
18325-K0F-T00
PROTECTOR, EX. PIPE
$36.45¢18 228
1
#006
18330-K0F-T00
STAY, EX PIPE
$29.55¢14 777
1
#007
18345-K15-920
RUBBER, MOUNTING
$3.36¢1 679
1
#008
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#009
18356-K0F-T00
PROTECTOR, MUFFLER
$128.04¢64 021
1
#010
18358-K0F-T00
COVER, TAIL CAP
$9.14¢4 571
1
#011
18371-K26-900
BAND, MUFFLER
$43.88¢21 942
1
#012
18391-HB7-000
GASKET, MUFFLER
$11.98¢5 991
1
#013
18421-K26-B00
RUBBER, MUFFLER MOUNTING
$0.70¢351
1
#014
18422-K26-900
COLLAR, MUFFLER MOUNTING
$4.86¢2 432
1
#015
90113-GFP-B00
SCREW, PAN (6X12)
$3.99¢1 995
1
#016
90113-K15-920
SCREW, PAN (6X14)
$1.68¢839
1
#017
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#018
94103-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#019
95701-08018-08
BOLT, FLANGE (8X18)
$1.91¢954
1
#020
95701-08032-02
BOLT, FLANGE (8X32)
$1.54¢771
1
#021
95701-08040-07
BOLT, FLANGE (8X40)
$2.75¢1 374
1
#022
95701-10055-08
BOLT, FLANGE (10X55)
$3.22¢1 610
1
