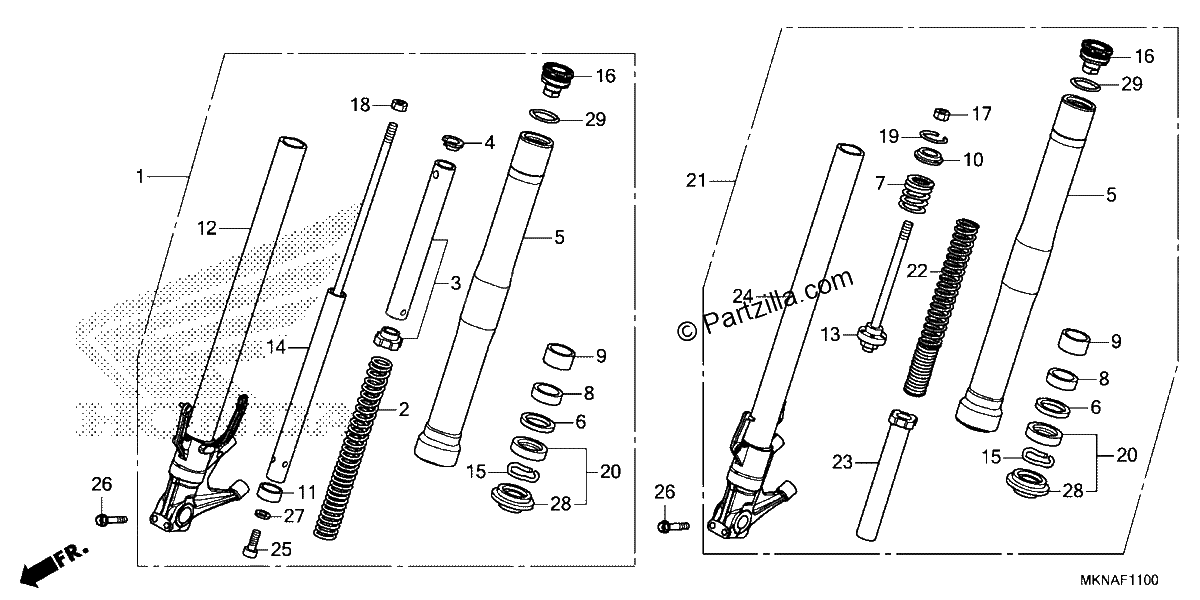

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front. (SHOWA)
$813.35¢406 674
#002
SPRING, Right Front.
$44.62¢22 310
#003
COLLAR, SPRING (SHOWA)
$31.08¢15 542
#004
STOPPER, SPRING SEAT (SHOWA)
$18.19¢9 096
#005
TUBE (OUTER)
$300.17¢150 086
#006
RING, BACK-UP (SHOWA)
$10.38¢5 192
#007
SPRING B, REBOUND (SHOWA)
$5.75¢2 875
#008
BUSH, GUIDE
$8.10¢4 048
#009
BUSH, SLIDER
$8.10¢4 048
#010
SEAT, STOPPER
$10.95¢5 474
#011
PLATE, CENTERING
$2.45¢1 225
#012
PIPE, Right SLIDE (SHOWA)
$335.86¢167 929
#013
ROD (SHOWA)
$41.53¢20 763
#014
DAMPER, Front. (SHOWA)
$128.59¢64 296
#015
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#016
BOLT, FR. FORK
$75.24¢37 622
#017
NUT, HEX. (10MM)
$3.43¢1 713
#018
NUT, LOCK (SHOWA)
$4.28¢2 139
#019
RING, STOPPER
$2.64¢1 322
#020
SEAL SET, FR. FORK
$26.84¢13 420
#021
FORK ASSY., L. FR. (SHOWA)
$708.38¢354 189
#022
SPRING, L Front.
$34.73¢17 365
#023
COLLAR B, SPRING (SHOWA)
$24.13¢12 064
#024
PIPE, L. SLIDE (SHOWA)
$340.25¢170 125
#025
BOLT, SOCKET (8X22)
$2.39¢1 196
#026
BOLT (8X45)
$3.36¢1 679
#027
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#028
DUST SEAL
$11.40¢5 698
#029
O-RING (39.7X2.4)
$2.51¢1 254
