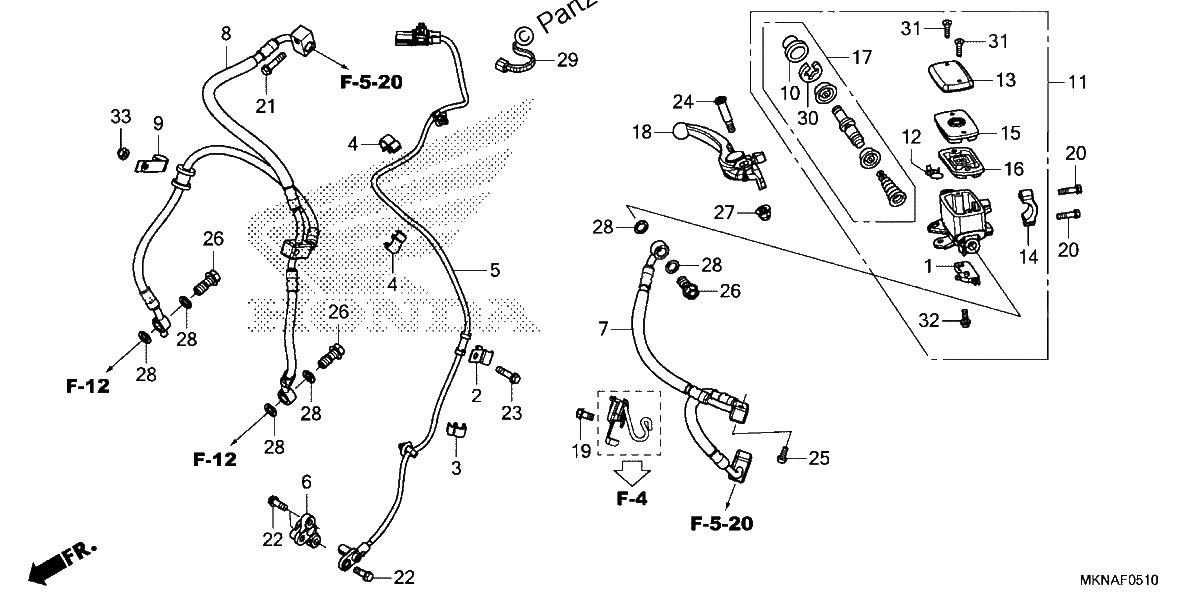

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP B, SENSOR WIRE
$2.31¢1 156
#003
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#004
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#005
SENSOR, FR. WHEEL SPEED
$37.98¢18 988
#006
GUARD, ABS SENSOR
$17.98¢8 988
#007
HOSE A, Front BRAKE
$90.06¢45 031
#008
HOSE D, Front BRAKE
$175.13¢87 563
#009
CLAMP, FR. BRAKE HOSE
$4.68¢2 338
#010
BOOT
$14.24¢7 119
#011
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$383.20¢191 600
#012
PROTECTOR
$5.20¢2 600
#013
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#014
HOLDER, MASTER CYLINDER
$15.74¢7 869
#015
PLATE, DIAPHRAGM
$12.36¢6 181
#016
DIAPHRAGM
$17.68¢8 838
#017
MASTER CYLINDER SET
$55.46¢27 731
#018
LEVER ASSY., R. HANDLE
$61.71¢30 856
#018
LEVER Assembly., Right HANDLE (COO)
$61.71¢30 856
#019
BOLT, FLANGE (6X12)
$2.99¢1 494
#020
BOLT, FLANGE (6X22)
$2.99¢1 494
#021
BOLT, FLANGE (6X25)
$2.99¢1 494
#022
BOLT, FLANGE (6X16)
$1.54¢769
#023
BOLT, FLANGE (6X23.5)
$1.57¢788
#024
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#025
SCREW, PAN (6X14)
$1.72¢862
#026
BOLT, OIL (10X22)
$8.89¢4 444
#027
NUT, CAP (6MM)
$3.65¢1 825
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
#030
CIRCLIP
$3.10¢1 550
#031
SCREW, FLAT (4X12)
$1.16¢581
#031
SCREW, FLAT (4X12)
$1.16¢581
#032
SCREW-WASHER (4X12)
$1.72¢862
#032
SCREW-WASHER (4X12)
$1.72¢862
#033
NUT, CAP (6MM)
$1.99¢994
