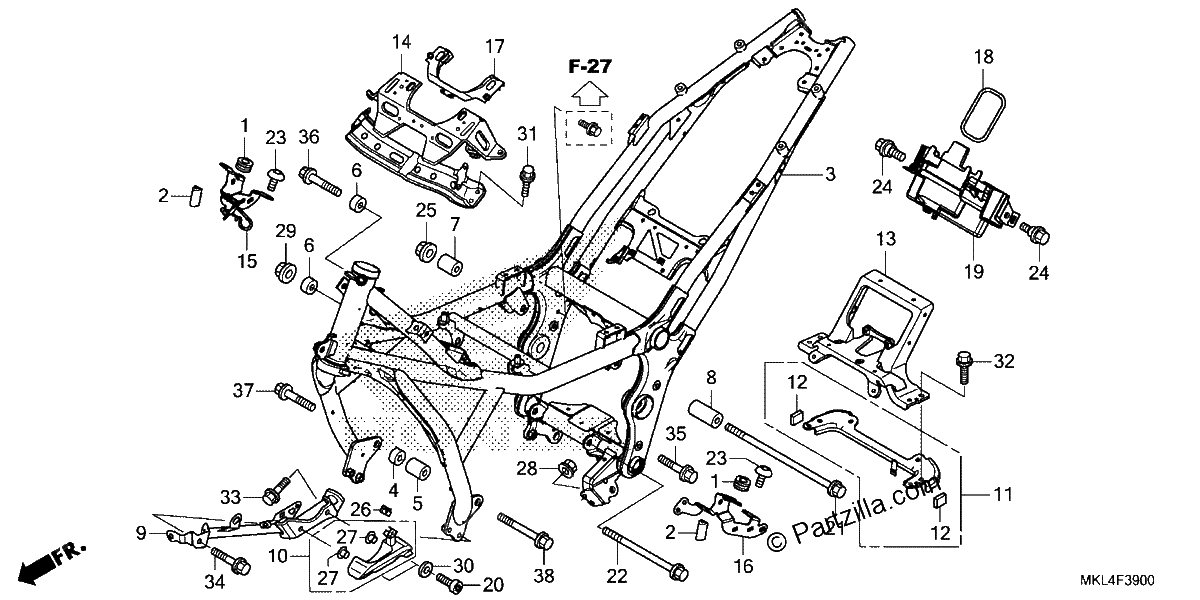

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
#002
TRIM, FUEL TANK NH1 (BLACK)
$2.39¢1 196
#003
FRAME NH303M (MAT AXIS GRAY METALLIC)
$2707.16¢1 353 579
#004
COLLAR A, R. ENGINE HANGER
$9.50¢4 749
#005
COLLAR A, L ENGINE HANGER
$14.18¢7 090
#006
COLLAR B, ENGINE HANGER
$6.58¢3 289
#007
COLLAR C, R. ENGINE HANGER
$13.35¢6 676
#008
COLLAR C, L. ENGINE HANGER
$15.50¢7 751
#011
STAY SET, FR. TANK
$23.02¢11 511
#012
RUBBER, CROSS PLATE
$1.17¢586
#013
PLATE, CENTER CROSS
$178.12¢89 062
#014
PLATE B, CROSS
$105.80¢52 900
#015
STAY, Right AIR CLEANER HOUSING
$18.40¢9 200
#016
STAY, L AIR CLEANER HOUSING
$14.95¢7 475
#017
RUBBER, CROSS PLATE
$9.18¢4 589
#018
BAND, TOOL
$3.16¢1 581
#019
BOX, ELECTRIC CONTROL UNIT
$12.10¢6 049
#021
BOLT, FLANGE (12X276)
$23.21¢11 603
#022
BOLT, FLANGE (12X168)
$14.36¢7 182
#023
SCREW, PAN (6X12)
$2.27¢1 133
#024
BOLT, FLANGE (6MM)
$3.36¢1 679
#025
NUT, FLANGE (12MM)
$2.04¢1 018
#029
NUT, FLANGE (12MM)
$1.17¢586
#031
BOLT, FLANGE (6X12)
$1.83¢914
#032
BOLT, FLANGE (6X22)
$2.04¢1 018
#035
BOLT, FLANGE (12X35)
$3.75¢1 874
#036
BOLT, FLANGE (12X45)
$2.17¢1 087
#037
BOLT, FLANGE (12X55)
$3.89¢1 943
#038
BOLT, FLANGE (12X80)
$5.22¢2 610
