REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

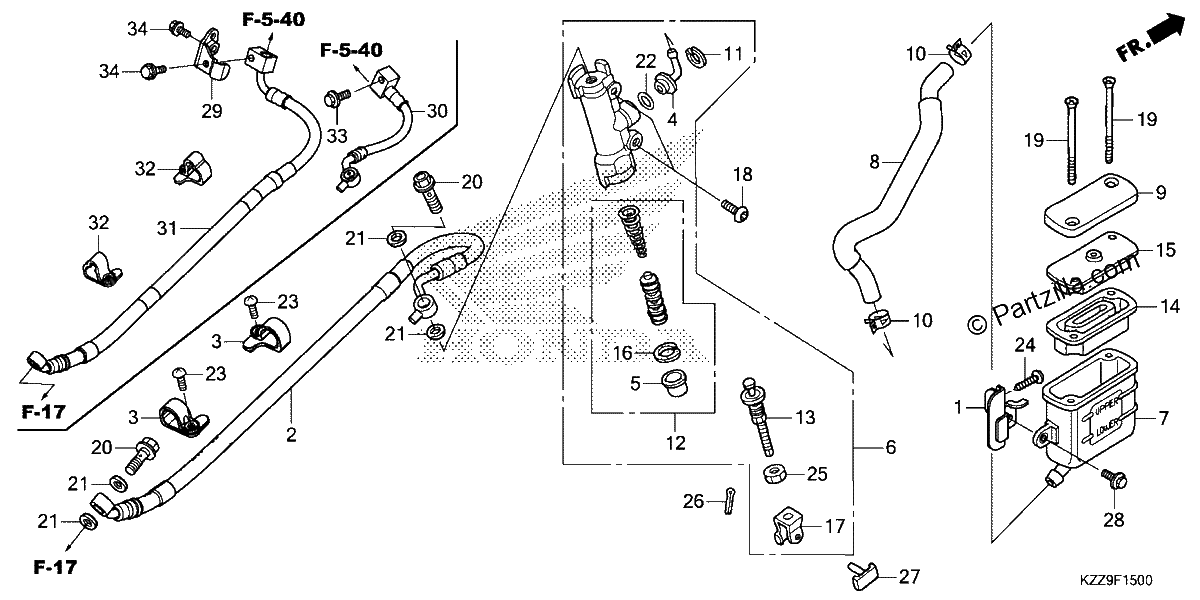

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#001
17270-KZZ-900
STAY, OIL CUP
$11.68¢5 838
1
#002
43310-KZZ-901
HOSE, RR. BRAKE
$45.99¢22 994
1
#003
43468-KZZ-J00
GUIDE, BRAKE HOSE
$3.17¢1 588
1
#004
43503-KS6-701
CONNECTOR, MASTER CYLINDER
$11.65¢5 825
1
#005
43504-MB2-006
BOOT
$11.74¢5 869
1
#006
43510-KZZ-305
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)
$69.04¢34 519
1
#006
43510-KZZ-901
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$69.04¢34 519
1
#007
43511-KW7-881
CUP, OIL (NISSIN)
$23.34¢11 669
1
#008
43512-KZZ-901
HOSE, RR. BRAKE MASTER CYLINDER
$11.90¢5 950
1
#009
43513-KTY-C01
CAP, MASTER CYLINDER
$7.72¢3 863
1
#010
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#011
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
1
#012
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
1
#013
43530-KZZ-901
ROD, PUSH
$14.61¢7 306
1
#014
45520-GW0-911
DIAPHRAGM
$8.84¢4 419
1
#015
45521-GW0-911
PLATE, DIAPHRAGM
$6.95¢3 475
1
#016
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#017
46504-KV6-702
JOINT, BRAKE ROD
$9.50¢4 750
1
#018
90106-KGH-600
BOLT, BRAKE DISK (6X17)
$3.65¢1 825
1
#019
90140-KZZ-901
SCREW, FLAT (4X45)
$7.39¢3 694
1
#020
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#021
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#022
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#023
93500-05016-0G
SCREW, PAN (5X16)
$1.16¢581
1
#024
93903-26380
SCREW, TAPPING (6X20)
$0.91¢456
1
#025
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#026
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#027
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#028
96300-06014-00
BOLT, FLANGE (6X14)
$1.21¢606
1
