COWLING LOWERS HSFNN HSFAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

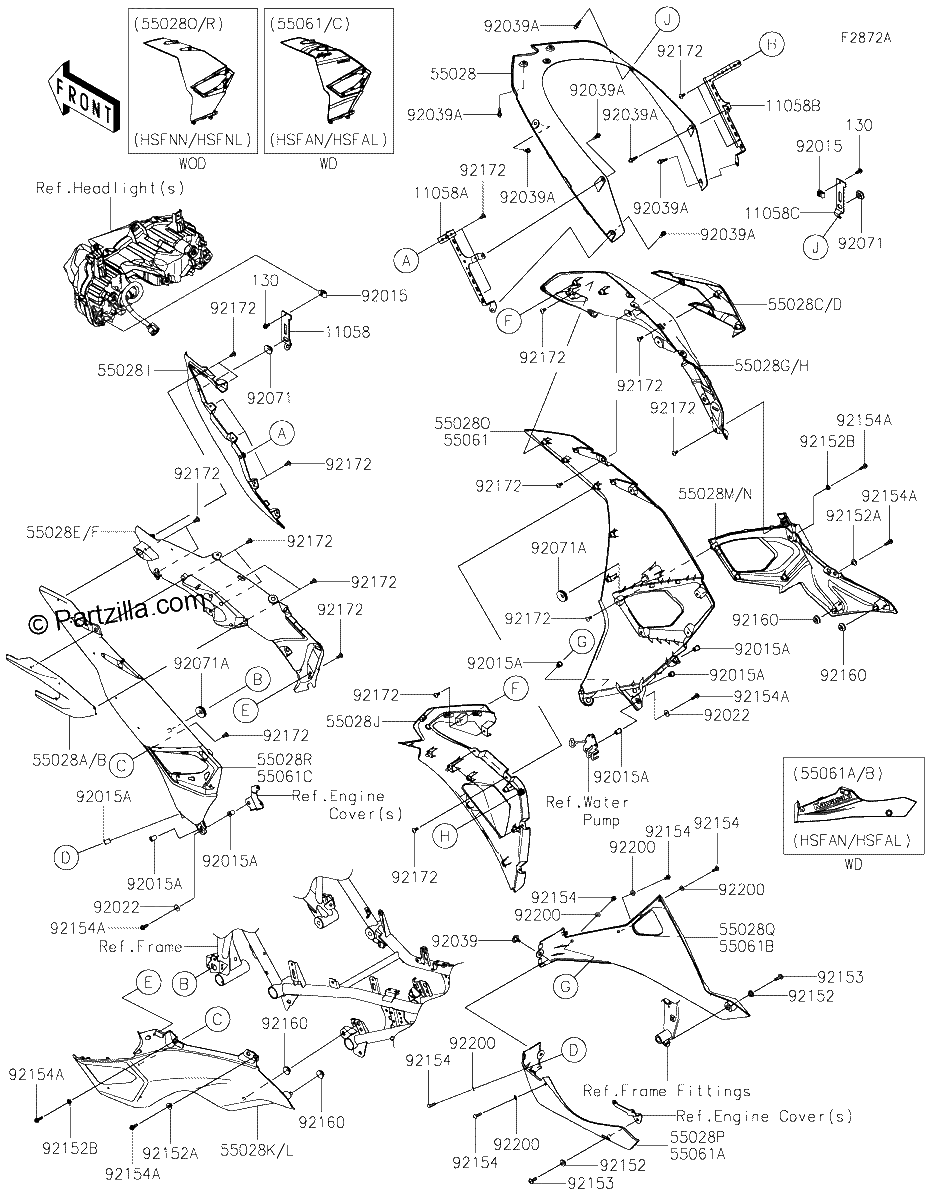

Diagrama de COWLING LOWERS HSFNN HSFAL

Repuestos

#130
130BA0512
BOLT-FLANGED,5X12
$1.85¢926
1
#11058
11058-1180
BRACKET,HEAD LAMP,Left Hand
$6.08¢3 042
1
#11058A
11058-1182
BRACKET,Front COWLING,Left Hand
$21.04¢10 522
1
#11058B
11058-1183
BRACKET,Front COWLING,Right Hand
$20.19¢10 097
1
#11058C
11058-2403
BRACKET,HEAD LAMP,Right Hand
$6.08¢3 042
1
#55028R
55028-0916-63V
COWLING,SIDE,LH,M.M.W.SILVER
$315.16¢157 579
1
#55028Q
55028-0889-63V
COWLING,LWR,RH,M.M.W.SILVER
$189.77¢94 887
1
#55028E
55028-0880-63V
COWLING,SIDE,UPP,LH,M.M.W.SIL
$235.60¢117 800
1
#55028
55028-0877
COWLING,Front
$75.70¢37 852
1
#55028A
55028-0878-25X
COWLING,FIN,Left Hand,M M GRAY
$56.17¢28 083
1
#55028A
55028-0878-H8
COWLING,FIN,Left Hand,EBONY
$56.17¢28 083
1
#55028C
55028-0879-25X
COWLING,FIN,Right Hand,M M GRAY
$53.33¢26 663
1
#55028C
55028-0879-H8
COWLING,FIN,Right Hand,EBONY
$56.17¢28 083
1
#55028E
55028-0880-H8
COWLING,SIDE,Upper,Left Hand,EBONY
$235.60¢117 800
1
#55028P
55028-0888-63V
COWLING,LWR,LH,M.M.W.SILVER
$183.99¢91 994
1
#55028G
55028-0881-63V
COWLING,SIDE,UPP,RH,M.M.W.SIL
$227.16¢113 580
1
#55028G
55028-0881-H8
COWLING,SIDE,Upper,Right Hand,EBONY
$227.16¢113 580
1
#55028I
55028-0882
COWLING,SIDE,Front,Left Hand
$61.01¢30 504
1
#55028J
55028-0883
COWLING,SIDE,Front,Right Hand
$61.01¢30 504
1
#55028K
55028-0884-63V
COWLING,SIDE,RR,LH,M.M.W.SIL
$209.48¢104 742
1
#55028K
55028-0884-777
COWLING,SIDE,Rear,Left Hand,L GREEN
$209.48¢104 742
1
#55028M
55028-0885-63V
COWLING,SIDE,RR,RH,M.M.W.SIL
$214.60¢107 301
1
#55028M
55028-0885-777
COWLING,SIDE,Rear,Right Hand,L GREEN
$214.60¢107 301
1
#55028O
55028-0887-63V
COWLING,SIDE,RH,M.M.W.SILVER
$319.68¢159 839
1
#55061A
55061-5385-H8
COWLING,Lower,Left Hand,EBONY
$231.79¢115 897
1
#55061B
55061-5386-H8
COWLING,Lower,Right Hand,EBONY
$239.07¢119 537
1
#55061C
55061-5387-777
COWLING,SIDE,Left Hand,L GREEN
$446.40¢223 198
1
#55061
55061-5384-777
COWLING,SIDE,Right Hand,L GREEN
$450.79¢225 394
1
#92015
92015-1710
NUT,5MM
$5.60¢2 800
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92022
92022-263
WASHER,5.2X16X1.2
$1.46¢730
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.74¢1 368
1
#92039A
92039-0709
RIVET
$2.27¢1 133
1
#92071
92071-0766
GROMMET,20X24X7.5
$1.31¢655
1
#92071A
92071-1043
GROMMET
$4.69¢2 346
1
#92152
92152-1838
COLLAR,6.5X16X5.6
$3.85¢1 926
1
#92152A
92152-2371
COLLAR,5.2X7.8X7.2
$3.40¢1 702
1
#92152B
92152-2395
COLLAR,6X8X4.5
$1.14¢569
1
#92153
92153-0478
BOLT,6X18
$2.17¢1 087
1
#92154
92154-4294
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154A
92154-7034
BOLT,FLANGED,5X16
$0.87¢437
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92172
92172-0821
SCREW,5X12
$0.87¢437
1
#92200
92200-0784
WASHER,5.2X12X1.0
$0.87¢437
1
