FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

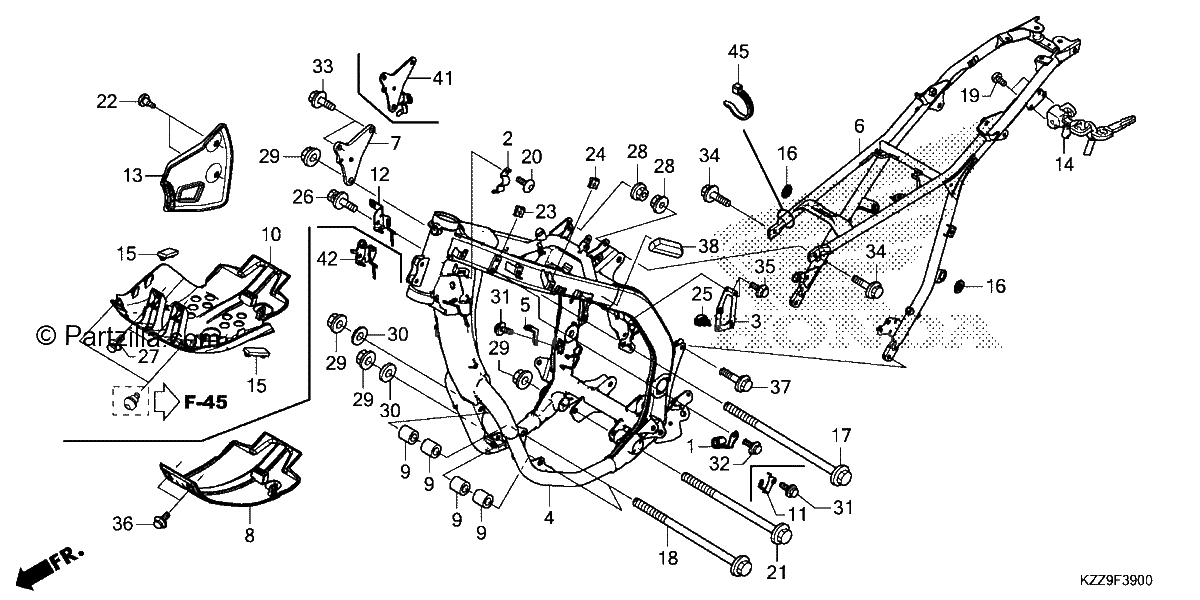

Diagrama de FRAME

Repuestos

#001
32111-KZZ-D20
CLAMP, HARNESS
$4.77¢2 387
1
#004
50100-KZZ-D20ZB
FRAME *NH146M*(ACCURATE SILVER METALLIC)
$541.39¢270 694
1
#005
50175-KZZ-900
STAY, STOP SWITCH
$2.24¢1 119
1
#006
50200-KZZ-D20ZB
FRAME, RR. *NH146M*(ACCURATE SILVER METALLIC)
$195.06¢97 531
1
#007
50351-KZZ-D20
PLATE, R. ENGINE HANGER
$8.07¢4 037
1
#008
50355-KZZ-900
PLATE, SKID
$24.36¢12 181
1
#009
50361-KZZ-900
COLLAR, ENGINE HANGER
$3.21¢1 606
1
#012
50402-KZZ-D20
GUIDE, CABLE
$13.91¢6 956
1
#013
50615-KZZ-900
GUARD, HEEL
$6.51¢3 256
1
#014
50710-KCZ-J71
HOLDER ASSY., HELMET
$51.76¢25 881
1
#017
90102-KZZ-900
BOLT, FLANGE (10X150)
$4.24¢2 119
1
#018
90104-HP6-A00
BOLT, FLANGE (10X140)
$10.39¢5 194
1
#019
90105-KGA-B00
BOLT, ONE-WAY (6X10)
$3.11¢1 556
1
#021
90127-KR3-000
BOLT, FLANGE (10X130)
$11.15¢5 575
1
#022
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#023
90303-KZZ-J00
NUT, CLIP (6MM)
$1.64¢819
1
#024
90303-KZZ-J00
NUT, CLIP (6MM)
$1.64¢819
1
#026
93401-08012-08
BOLT-WASHER (8X12)
$1.29¢644
1
#028
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#029
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#030
94101-10800
WASHER, PLAIN (10MM)
$2.41¢1 206
1
#031
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
#032
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#033
95701-08016-00
BOLT, FLANGE (8X16)
$2.31¢1 156
1
#034
95701-08018-00
BOLT, FLANGE (8X18)
$2.31¢1 156
1
#036
96300-06010-08
BOLT, FLANGE (6X10)
$2.21¢1 106
1
#037
96300-08020-00
BOLT, FLANGE (8X20)
$2.03¢1 013
1
#038
52161-KZZ-920
PAD, FRAME
$11.47¢5 738
1
