FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

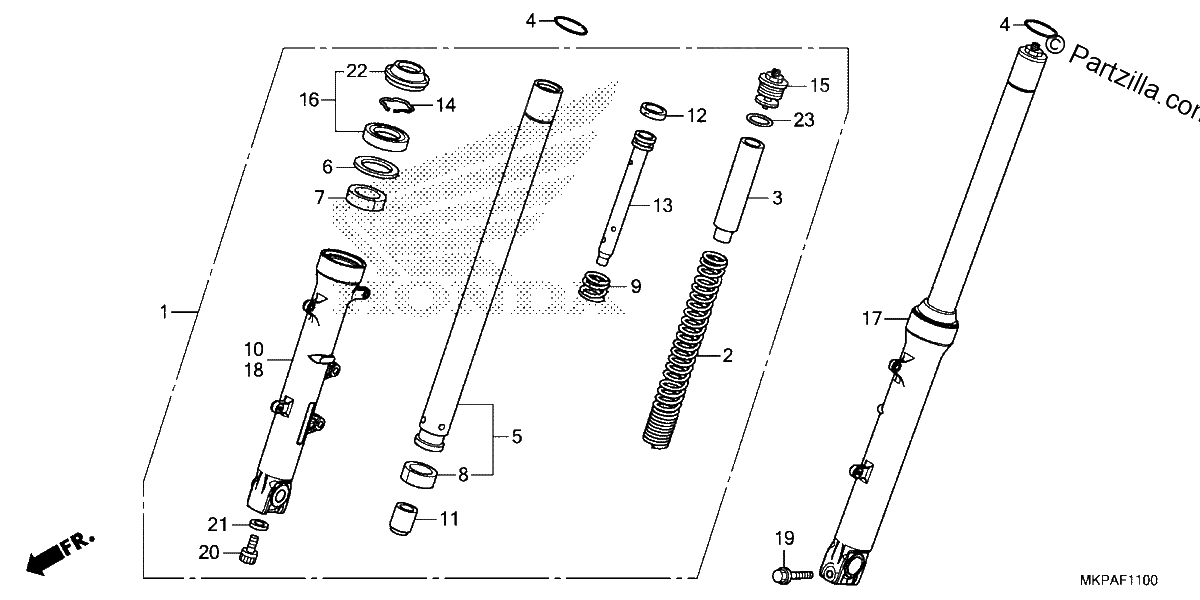

Diagrama de FRONT FORK

Repuestos

#001
51400-MKP-J01
FORK ASSY., R. FR. (SHOWA)
$467.96¢233 979
1
#002
51401-MKP-J01
SPRING, FR. FORK
$50.13¢25 064
1
#003
51402-MGZ-J01
COLLAR, SPRING
$19.08¢9 539
1
#004
51405-MB4-003
RING, STOPPER
$6.79¢3 393
1
#005
51410-MKP-J01
PIPE, FR. FORK
$204.41¢102 206
1
#006
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#009
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$8.61¢4 307
1
#010
51420-MGZ-J01
CASE, Right. (LOWER)
$95.16¢47 581
1
#011
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#012
51437-KV3-701
RING, PISTON
$8.03¢4 013
1
#013
51440-MKP-J01
PIPE, SEAT
$11.09¢5 543
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#015
51450-MKP-J01
BOLT ASSY., FR. FORK
$80.97¢40 486
1
#016
51490-MKL-D81
SEAL SET, FR. FORK
$26.84¢13 420
1
#017
51500-MKP-J01
FORK ASSY., L. FR. (SHOWA)
$460.76¢230 380
1
#018
51520-MGZ-J01
CASE, Left (LOWER)
$87.46¢43 729
1
#019
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#020
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#021
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#022
91251-MKL-D81
DUST SEAL
$11.40¢5 698
1
#023
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
