REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

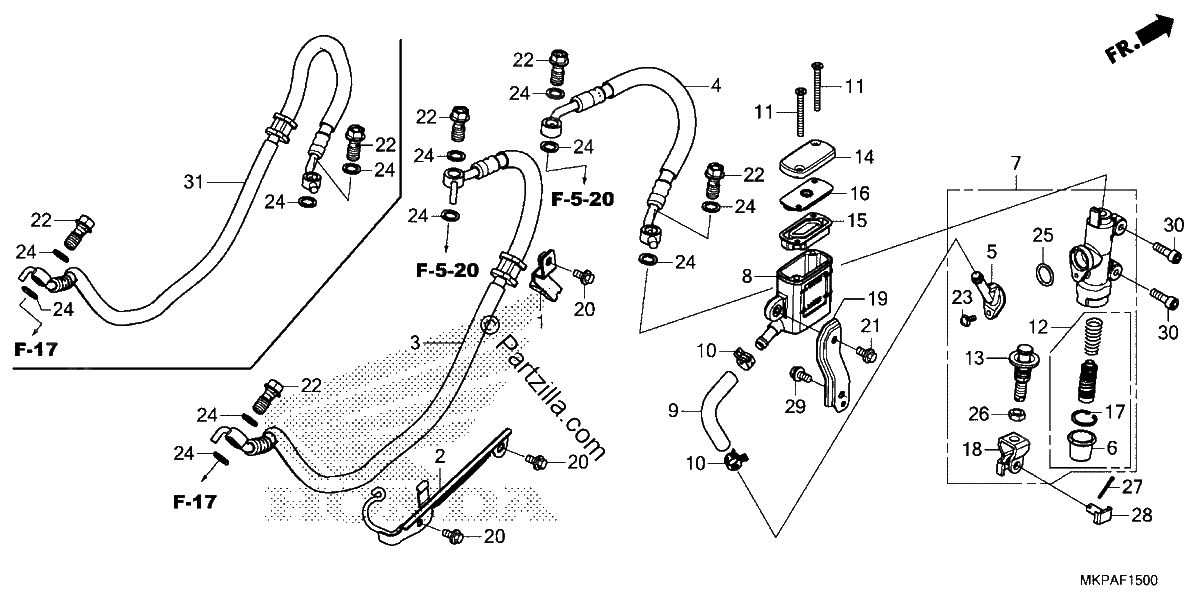

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#001
43155-MKP-J00
CLAMP A, RR. BRAKE
$4.84¢2 421
1
#002
43156-MKP-J00
STAY B, Rear BRAKE
$14.19¢7 095
1
#005
43503-MN5-006
CONNECTOR, MASTER CYLINDER (NISSIN)
$17.16¢8 579
1
#006
43504-MB2-006
BOOT
$10.80¢5 399
1
#007
43510-MKP-J01
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$133.11¢66 556
1
#008
43511-MKP-J01
CUP, OIL
$7.73¢3 864
1
#009
43512-MKP-J01
HOSE, Rear MASTER CYLINDER
$7.70¢3 852
1
#010
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#011
43516-KYJ-901
SCREW, FLAT (4X60)
$1.07¢535
1
#012
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
1
#013
43530-KV3-701
ROD, PUSH
$23.49¢11 747
1
#014
45513-K33-D01
CAP, MASTER CYLINDER
$19.52¢9 758
1
#015
45520-GW0-911
DIAPHRAGM
$8.13¢4 065
1
#016
45521-GW0-911
PLATE, DIAPHRAGM
$6.39¢3 197
1
#017
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#018
46504-KV6-702
JOINT, BRAKE ROD
$8.74¢4 370
1
#019
50279-MKP-J00
STAY, OIL CUP
$10.53¢5 267
1
#020
90013-GHB-600
BOLT, FLANGE (6X10)
$5.30¢2 651
1
#021
90013-GHB-610
BOLT, FLANGE (6X12)
$2.75¢1 374
1
#022
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#023
90508-K21-921
SCREW-WASHER (4X12)
$0.30¢150
1
#024
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#025
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#026
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#027
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#028
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#029
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#030
96600-06020-00
BOLT, SOCKET (6X20)
$1.53¢765
1
#031
43310-MKP-J11
HOSE, Rear BRAKE
$30.67¢15 335
1
