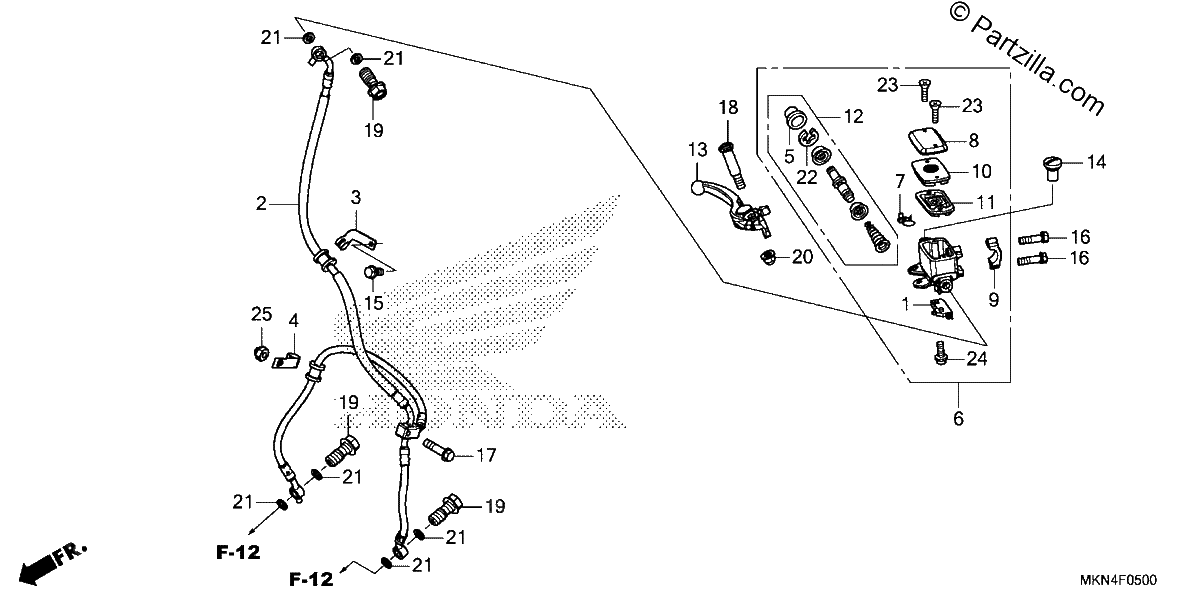

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
HOSE, FR. BRAKE
$134.69¢67 344
#003
CLAMP A, FR. BRAKE HOSE
$98.69¢49 344
#004
CLAMP, FR. BRAKE HOSE
$4.68¢2 338
#005
BOOT
$14.24¢7 119
#006
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$383.20¢191 600
#007
PROTECTOR
$5.20¢2 600
#008
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#009
HOLDER, MASTER CYLINDER
$15.74¢7 869
#010
PLATE, DIAPHRAGM
$12.36¢6 181
#011
DIAPHRAGM
$17.68¢8 838
#012
MASTER CYLINDER SET
$55.46¢27 731
#013
LEVER Assembly., Right HANDLE (COO)
$61.71¢30 856
#013
LEVER ASSY., R. HANDLE
$61.71¢30 856
#014
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#015
BOLT, FLANGE (6X12)
$2.99¢1 494
#016
BOLT, FLANGE (6X22)
$2.99¢1 494
#017
BOLT, FLANGE (6X23.5)
$1.57¢788
#018
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#019
BOLT, OIL (10X22)
$8.89¢4 444
#020
NUT, CAP (6MM)
$3.65¢1 825
#021
WASHER, OIL BOLT
$4.85¢2 425
#022
CIRCLIP
$3.10¢1 550
#023
SCREW, FLAT (4X12)
$1.16¢581
#023
SCREW, FLAT (4X12)
$1.16¢581
#024
SCREW-WASHER (4X12)
$1.72¢862
#024
SCREW-WASHER (4X12)
$1.72¢862
#025
NUT, CAP (6MM)
$1.99¢994
